Toray Carbon Fiber T1000 Metallic Green Paint YS3240 Full Hidden Cable Gravel Bike Frame GR044 BB386 Bottom Bracket

The frame does not include the thru axle, if you need it, please buy it together

Please note the size of the integrated handlebar when placing an order:

90*380mm/90*400mm/90*420mm/90*440mm
100*400mm/100*420mm
110*400mm/110*420mm
120*400mm/120*420mm/120*440mm

Product information

Model GR044 (142*12mm axle)
Size:  49/52/54/56/58cm
Bottom Bracket: BB386
Material: Full carbon Toray T1000
Package contains:  Frame+Fork+ Seatpost+Handlebar+ Spacer+headset

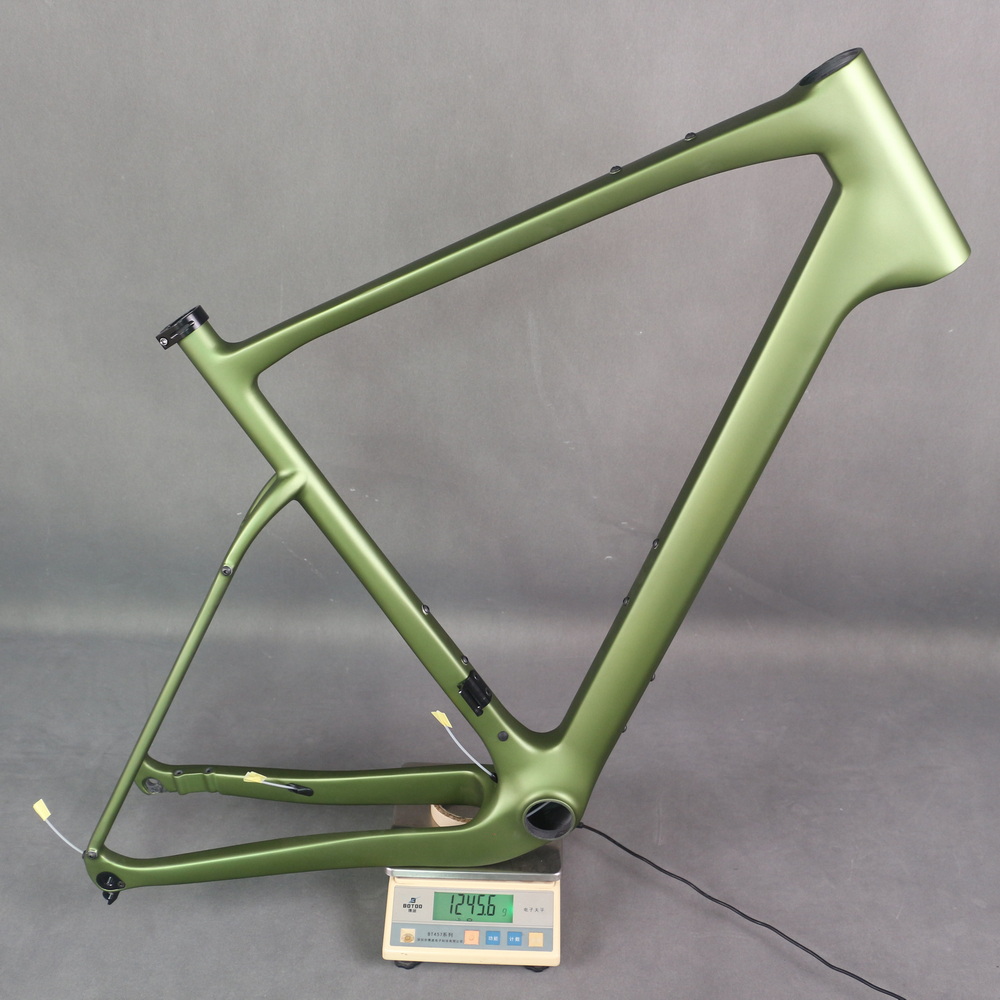

Frame weight： 1245g/+-40g (58cm)
Fork weight： 468g+/-20g
Zero seatpost 216g+/-15g(Zero seatpost)
HB010 handlebar： 377g+/-20g
Disc Rotor: Front and Rear 140mm , if 160mm need add adaptor
Headset: 1-1/2"-1 1/2" (Bearing 45°)
Integrated Seat Tube: 27.2mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type:  Flat Mount Disc Brake
Chain Stay: 435mm
Fork Rake: 50mm
Single speed Crankset： 42T
Double speed Crankset： shimano 50-39T
Cable Type: Internal cable
Max Tire: 700C*45C /650B*47mm /27.5&29er*2.1''
Warranty: 2 years

Geometry

Detail images

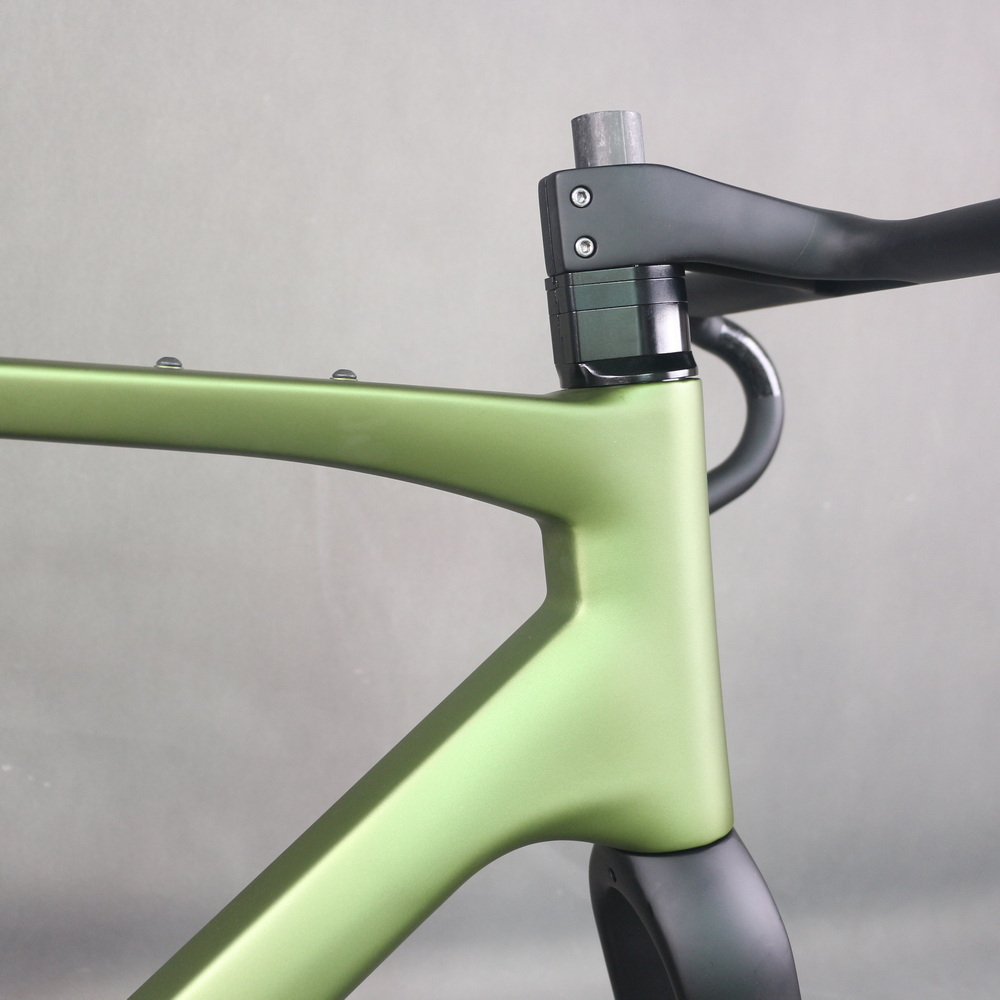

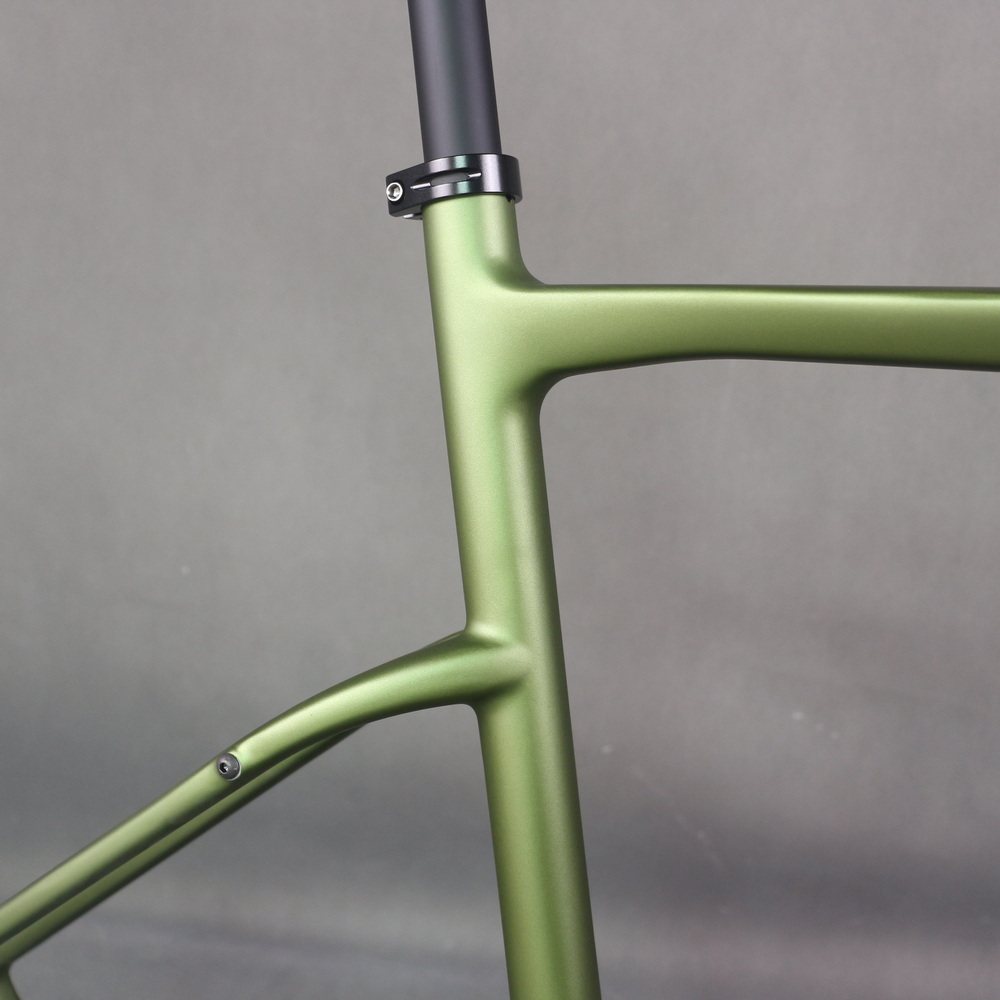

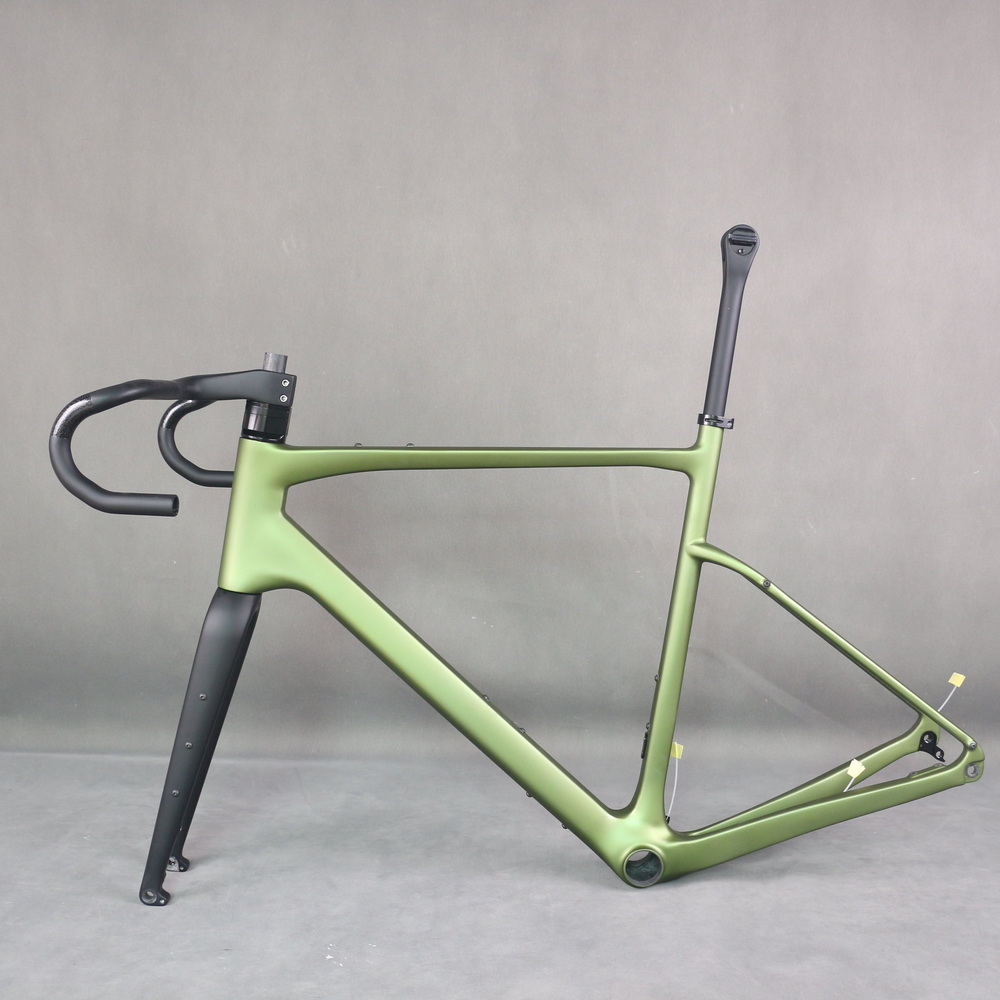

Below picture frame size is 58cm
color number YS3240 matte finish
