Seraph Carbon Fiber Gravel Bike Frame GR029 Flat Mount Disc Brake BSA Bottom Bracket Custom Paint

Notice : The frame does not include headset and Thru axle, need to buy

Product information

Item: GR029
Include frame+fork
Material: full carbon T700
Frame size: 49cm/52cm/54cm/56cm/58cm
Headset： 1-1/8'' to 1-1/2'' Tapered Integrated

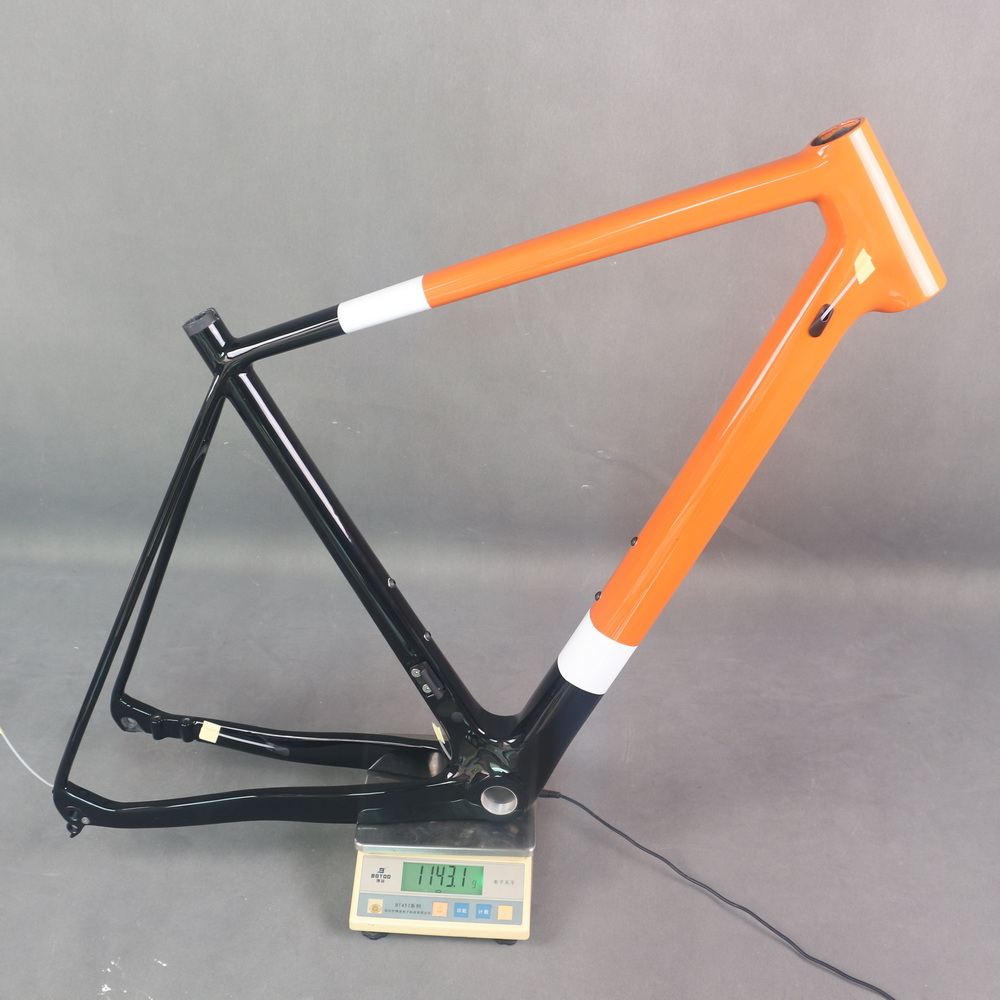

Frame Weight: Frame 1143/+-50g (54cm)

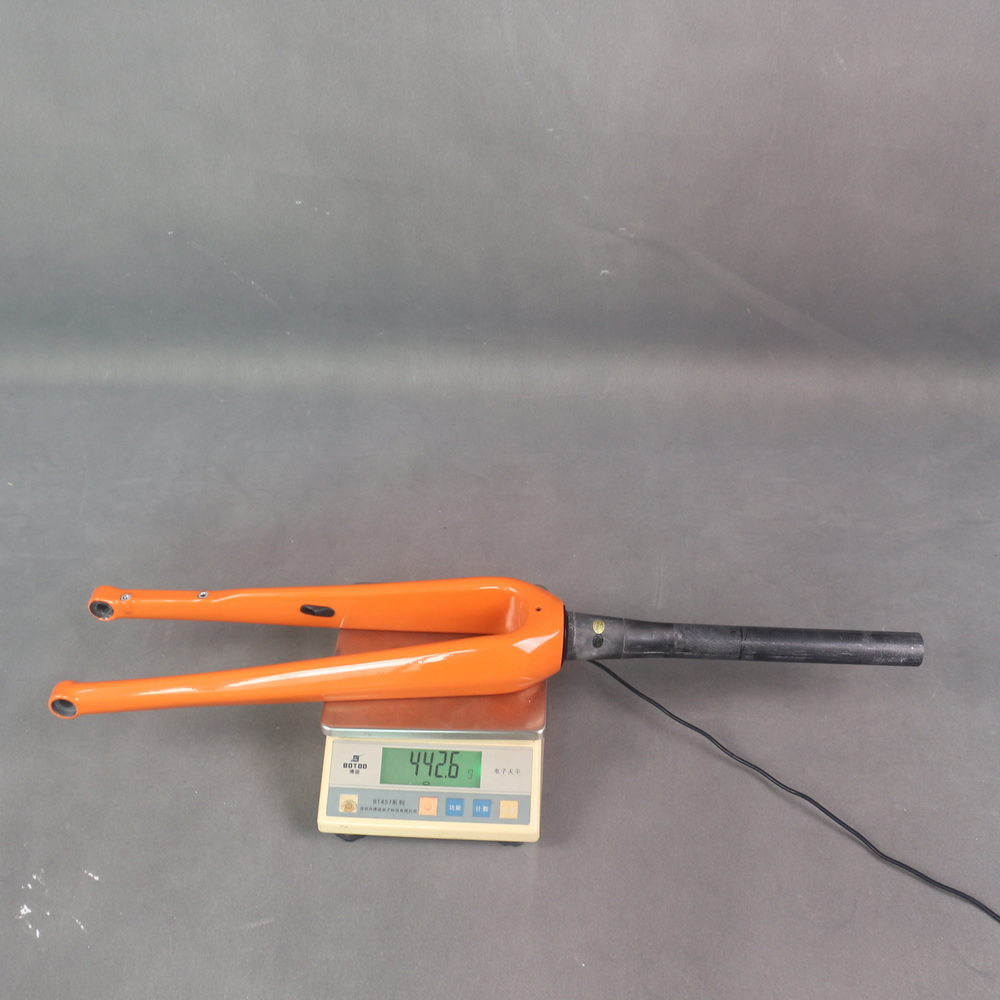

Fork weight Fork 442/+-20g
Seat post size: 27.2mm Diameter Seat post
TIRE: 700*42c
BB: BSA(68MM)
Frame Rear Space: 142*12mm
Fork spacer :   100*15mm/100*12mm
Group set: Di2 and Mechanical Compatible
Brake Type:  Flat Mount Gravel Disc Brake
Disc Rotor: 140mm（using the adapter can be max 160mm）
Chain Stay:  425mm
Max crank： 53-39T(double), 44T(single)
Fork Rake: 45mm
Warranty:  2 years

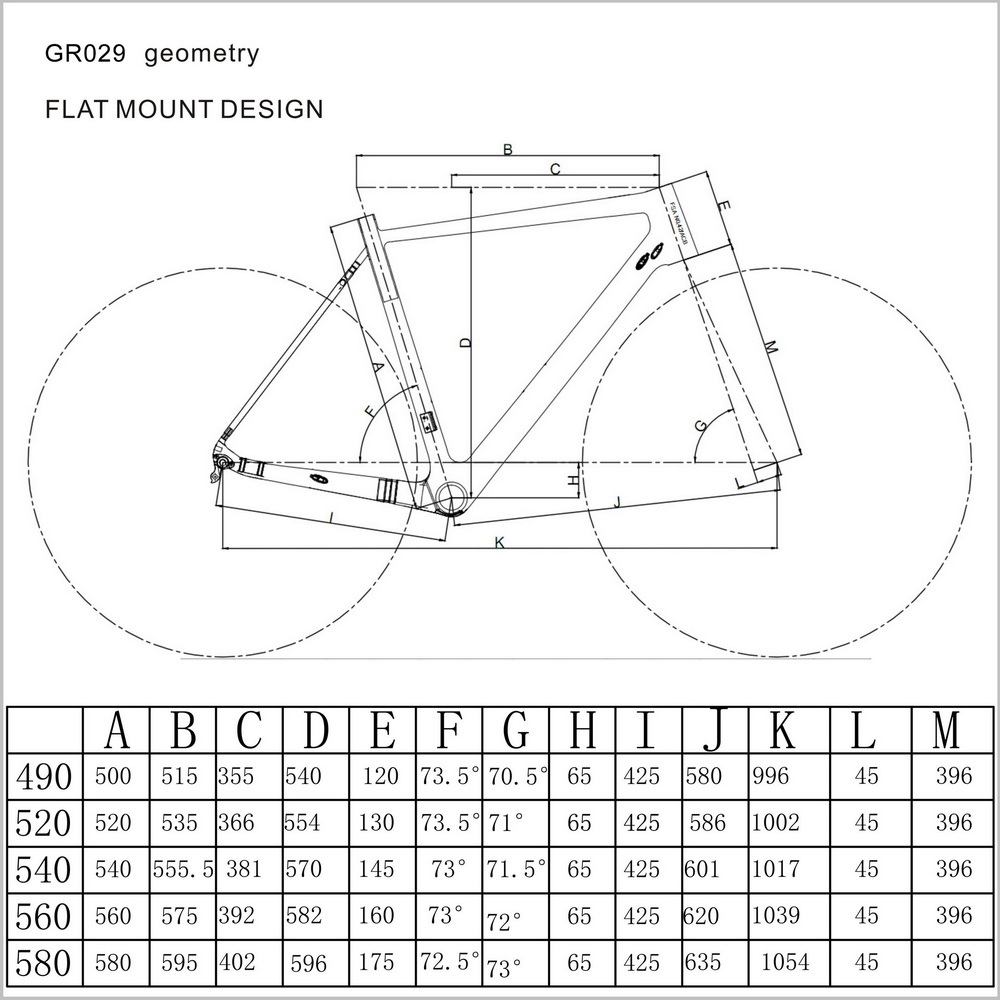

Geometry

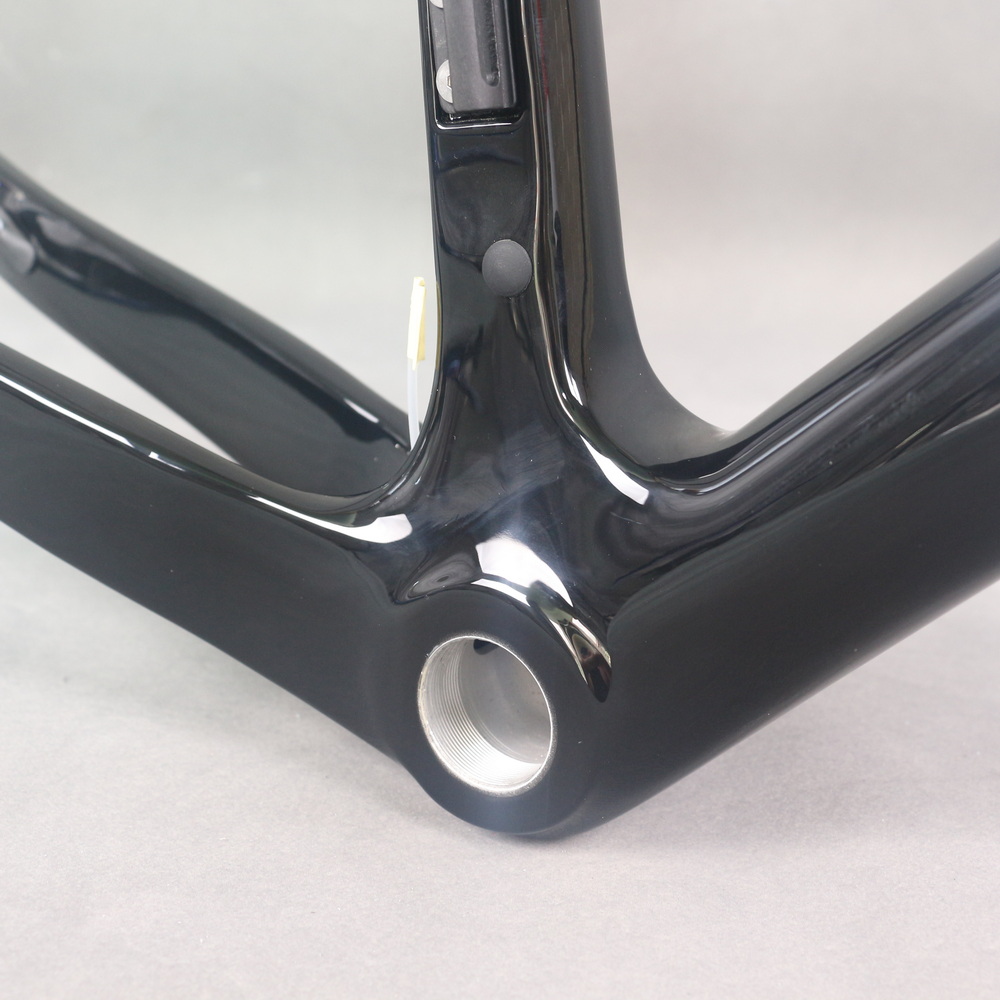

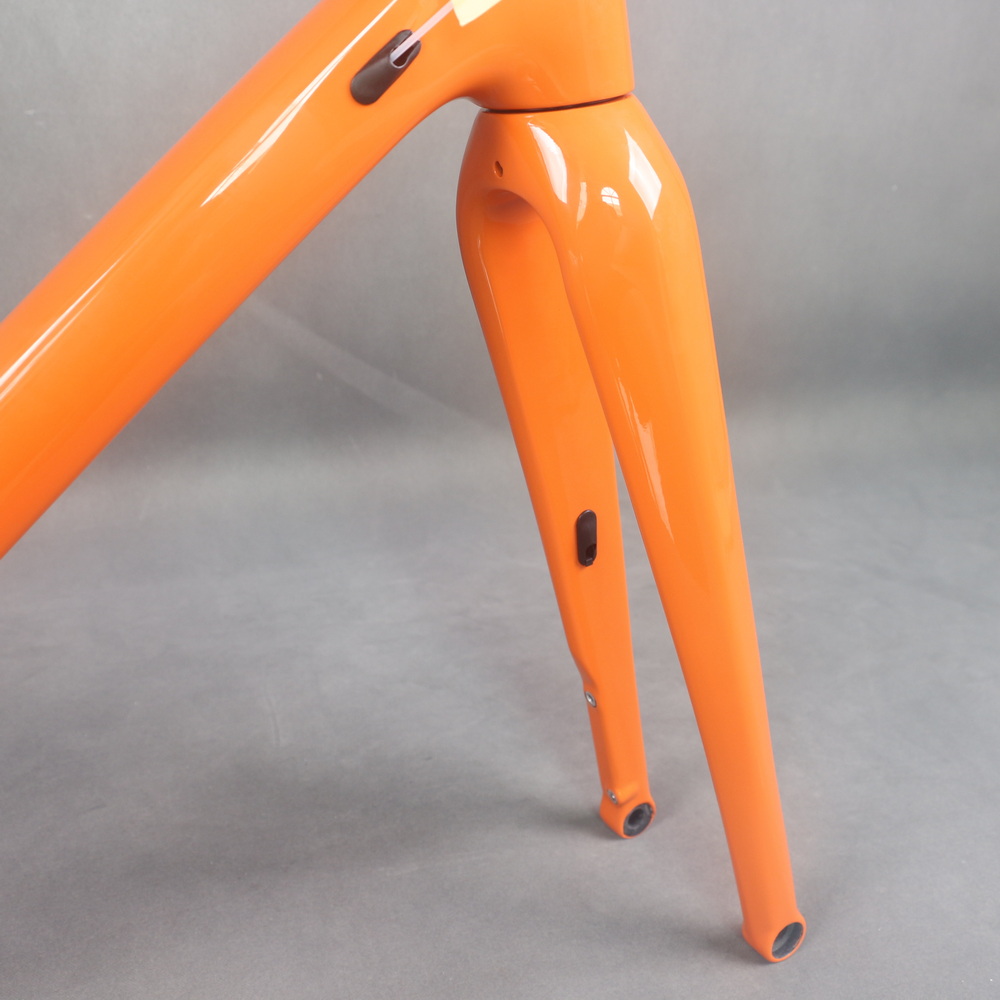

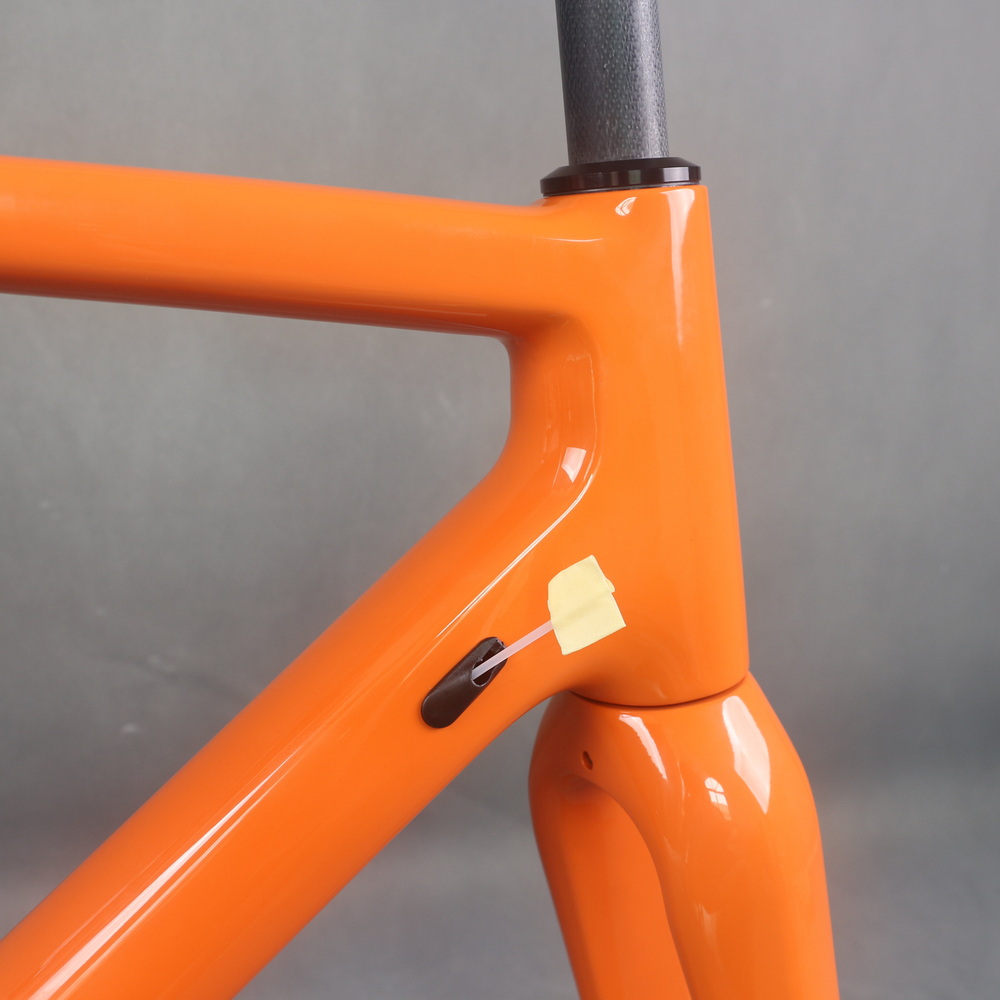

Detail images

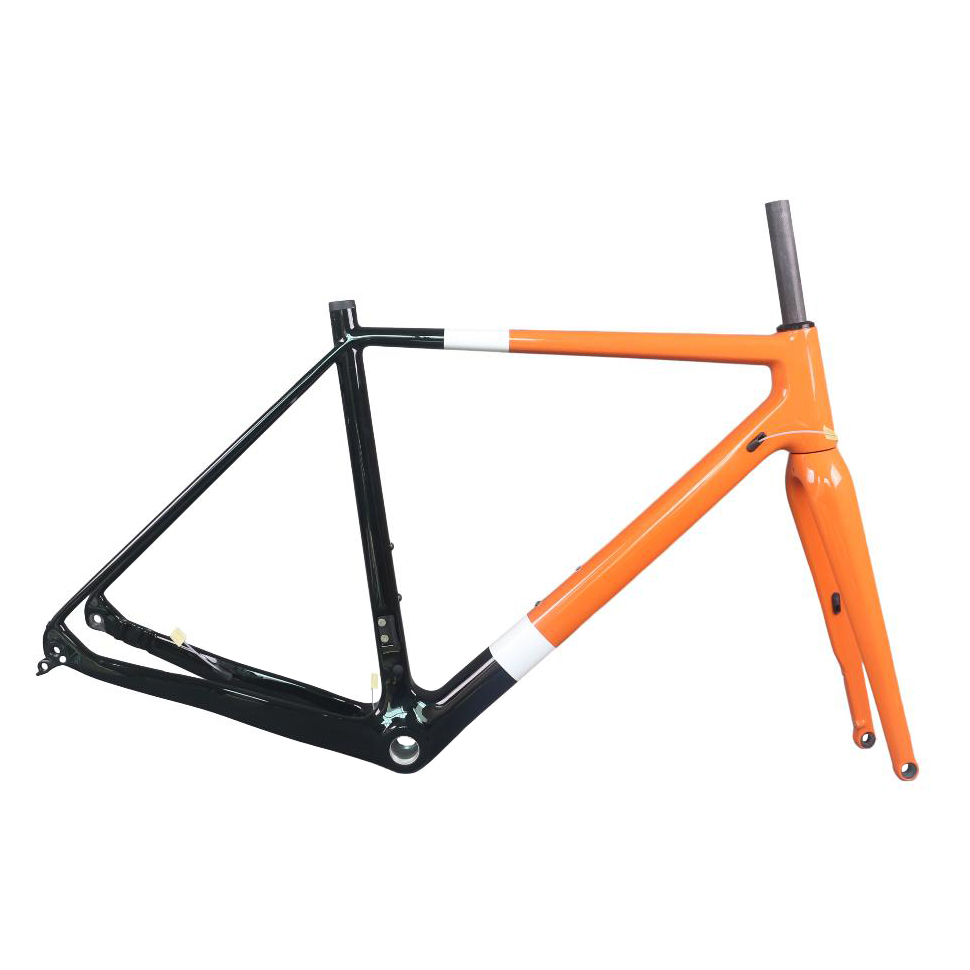

Below picture frame size is 54cm
Color number PT166C+YS701+YS728

Package

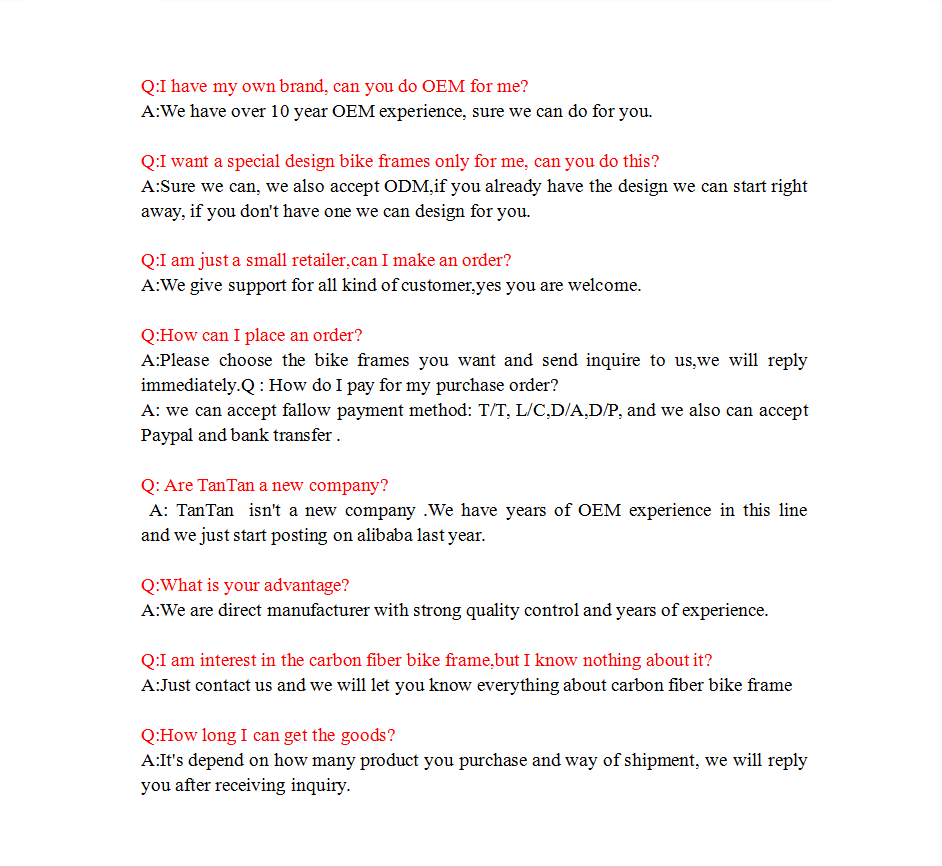

FAQ
