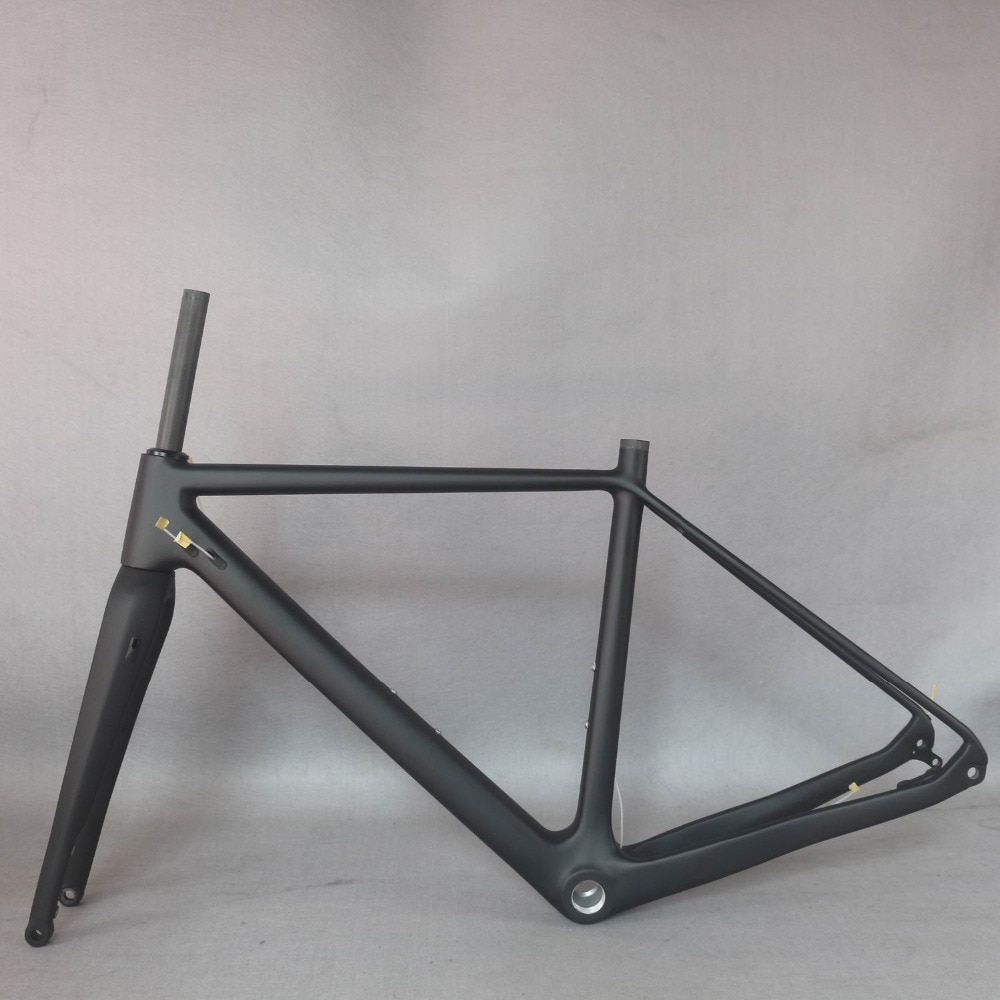

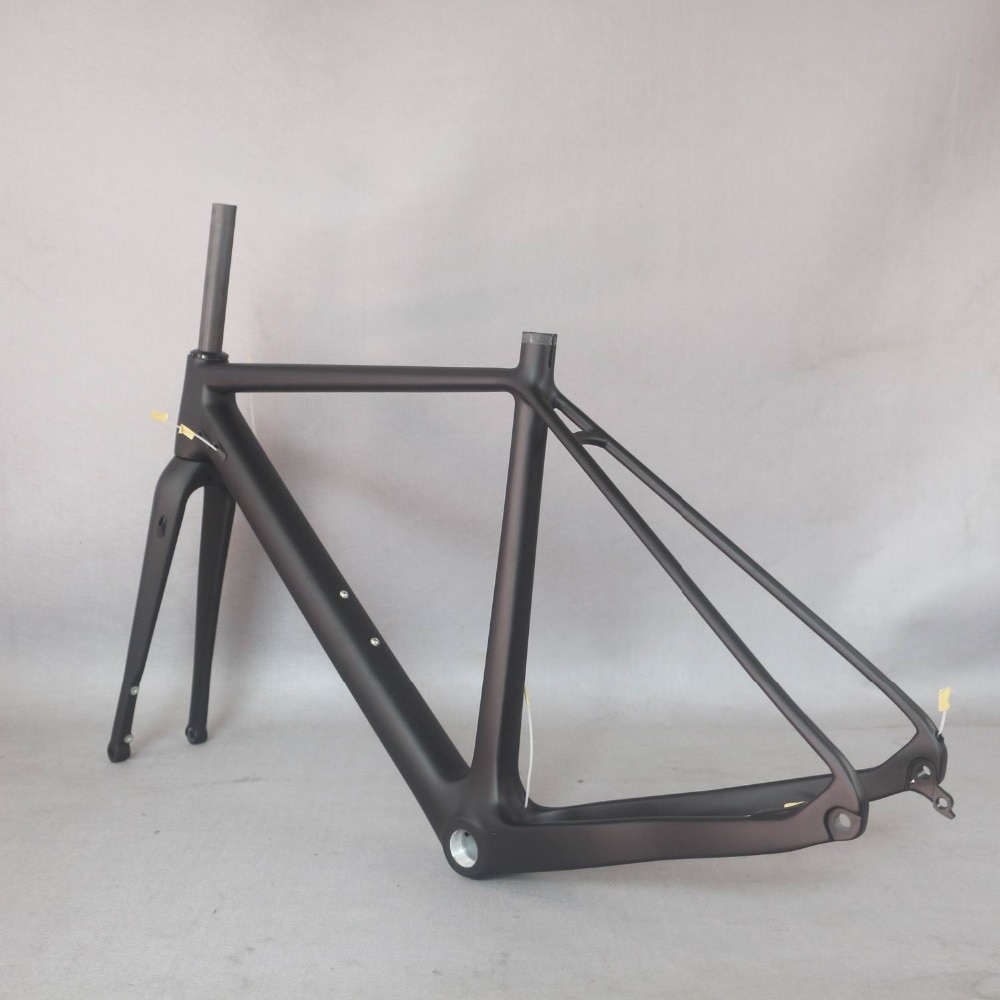

New SERAPH disc frame Thru Axle 142mm Available Gravel 700C Carbon Bike Frame,Gravel Di2 Carbon Disc Cyclocross Frame GR029

Item:GR029

Size:49cm 52cm 54cm 56cm 58cm

Bottom Bracket:BSA

Finished:To order-Customized paint&Logo decal

Material:Hight Modulus Toray t700 Carbon Fiber

Head Tube:1-1/8” to 1-1/2” Tapered Integrated

Seat Tube:27.2mm Diameter Seatpost

Frame Rear Space:142*12mm Thru-axle

Fork spacer : 100*12mm Thru-axle

Groupset:Di2 and Mechanical Compatible

Brake Type:Flat Mount Gravel Disc Brake

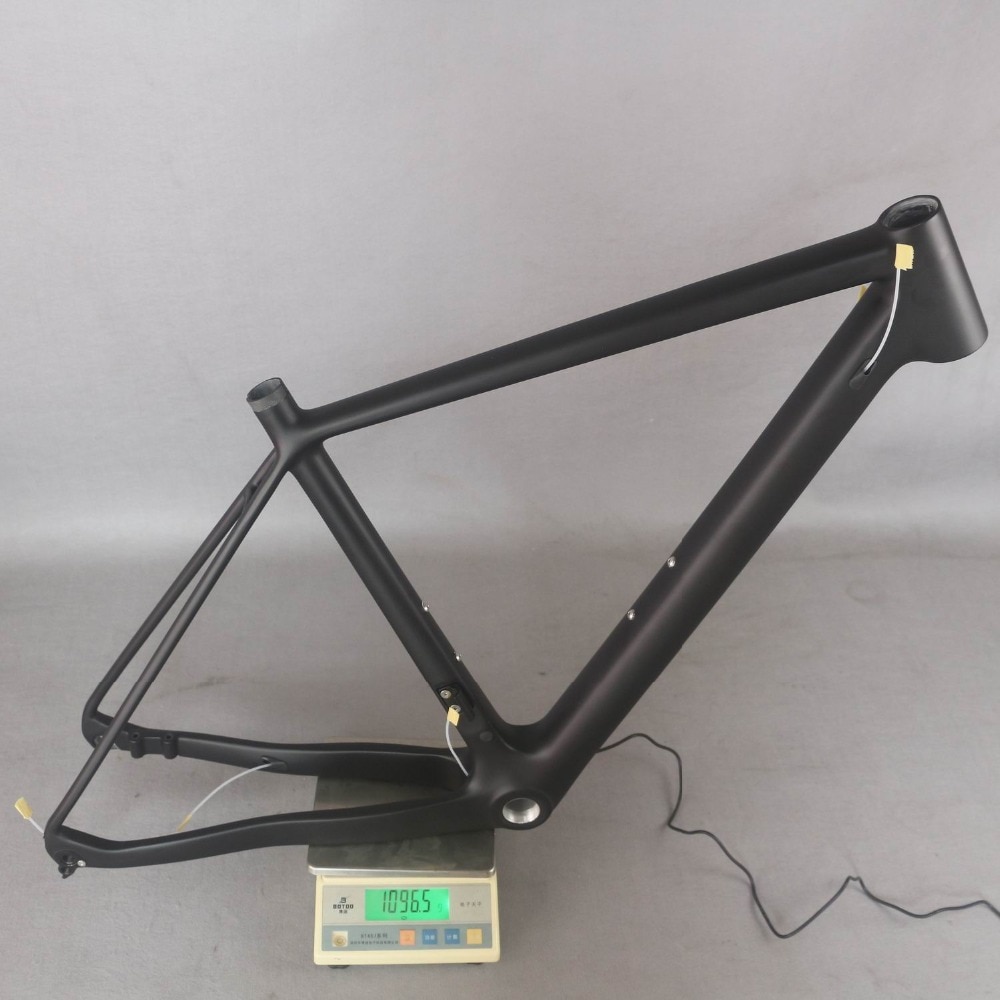

Weight:Frame 1117+/-50g (49cm), Fork 399+/-15g

Disc Rotor:Front and Rear 140mm , if 160mm need add adaptor .

Chain Stay:425mm

Fork Rake:45mm

Cable Type:External Cable

Max Tire:700X42C

Warranty: 2 years

Shipping Method

• we always ship the frame by EMS.it need about 15-35 days can be reach to your customs.

• Delievery time

• if frame is in stock,can be shipped in 7-15 days.if the frame is out of stock,it need about 15-25 days can be ready to ship.

• Customs Fee

• we donn't assume any TARIFF for the customs of your country.we usually marked low price for the pacakge value.

• WARRANTY AND RETURNRULE

• THE FRAME,WHEELS HAVE 2 YEARS WARRANTY,OTHER BIKE PARTS HAVE 1 YEAR WARRANTY

• IF THE PROBLEM IS OUR GOODS QUALITY ITSELF PROBLEM OR PROBLEM IS CAUSED DURING SHIPPING,WE REPLACE NEW ONE TO YOU;

  IF THE PROBLEM IS CAUSED BY YOUR UNREASONABLE ASEMMBLE OR RIDE,WE NOT RESPOSIBLE FOR THE PROBELM!
