SERAPH
Full Toray Carbon Fiber T1000 Gravel Bike Frame GR047 Flat Mount Disc Brake Custom Paint Max Tire 700CX47C
The frame bar does not include the thru axle, if you need it, please buy it together
Product information
Frame Rear Space: GR047
Material: Hight Modulus Toray t1000 Carbon Fiber
Size: 40/43/46/49/53cm
Bottom Bracket: T47 thread
Seatpost： zero/setback seatpost
Headset: 1 -1/2 "above and 1 -1/2" below
Seatpost size： 27.2mm seatpost
Weave: UD

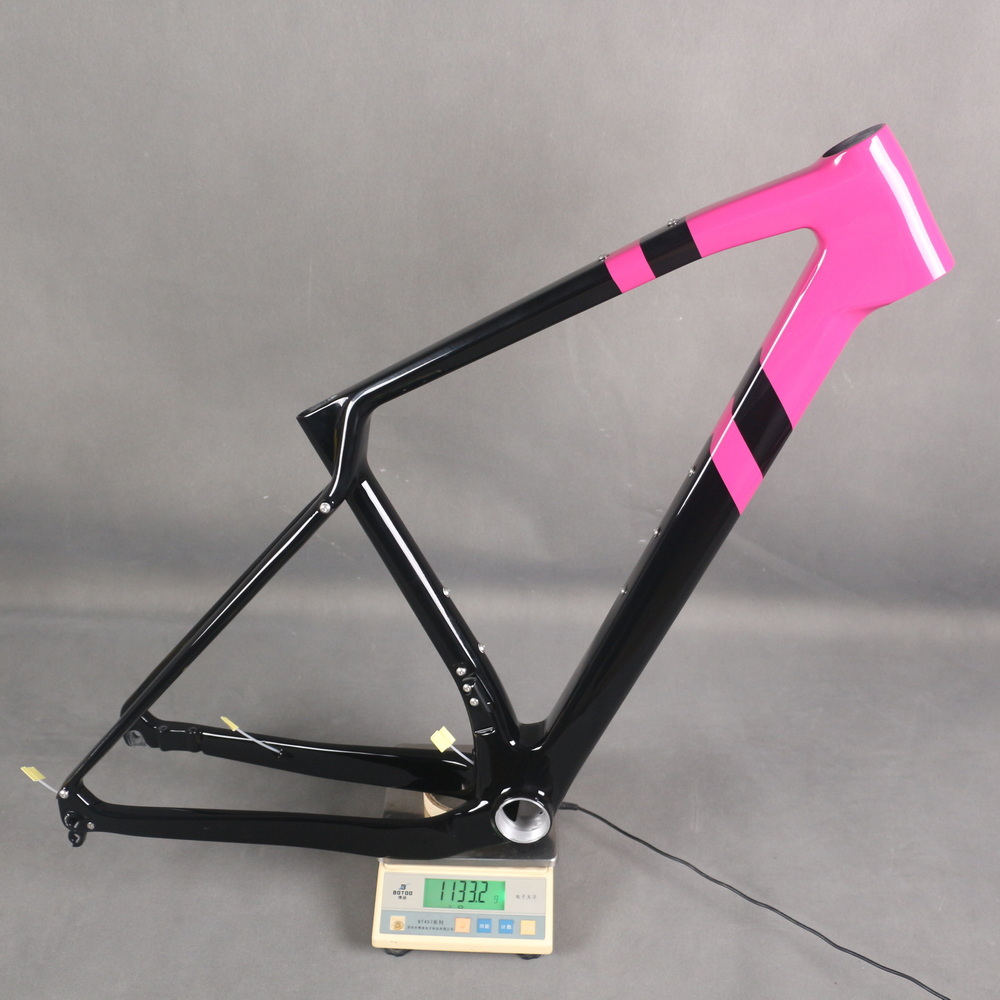

Frame weight： 1133/+-40g (43cm)
FO045 Fork weight： 437+/-20g
seat post weight： 172/+-15g
Disc Rotor: Front and Rear 140mm (if 160mm need add adapter )
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Max Tire: 700C*47C
Single speed Crankset： 42T
Double speed Crankset： shimano 50-36T
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type: Flat Mount Disc Brake
Warranty: 2 years
Geometry

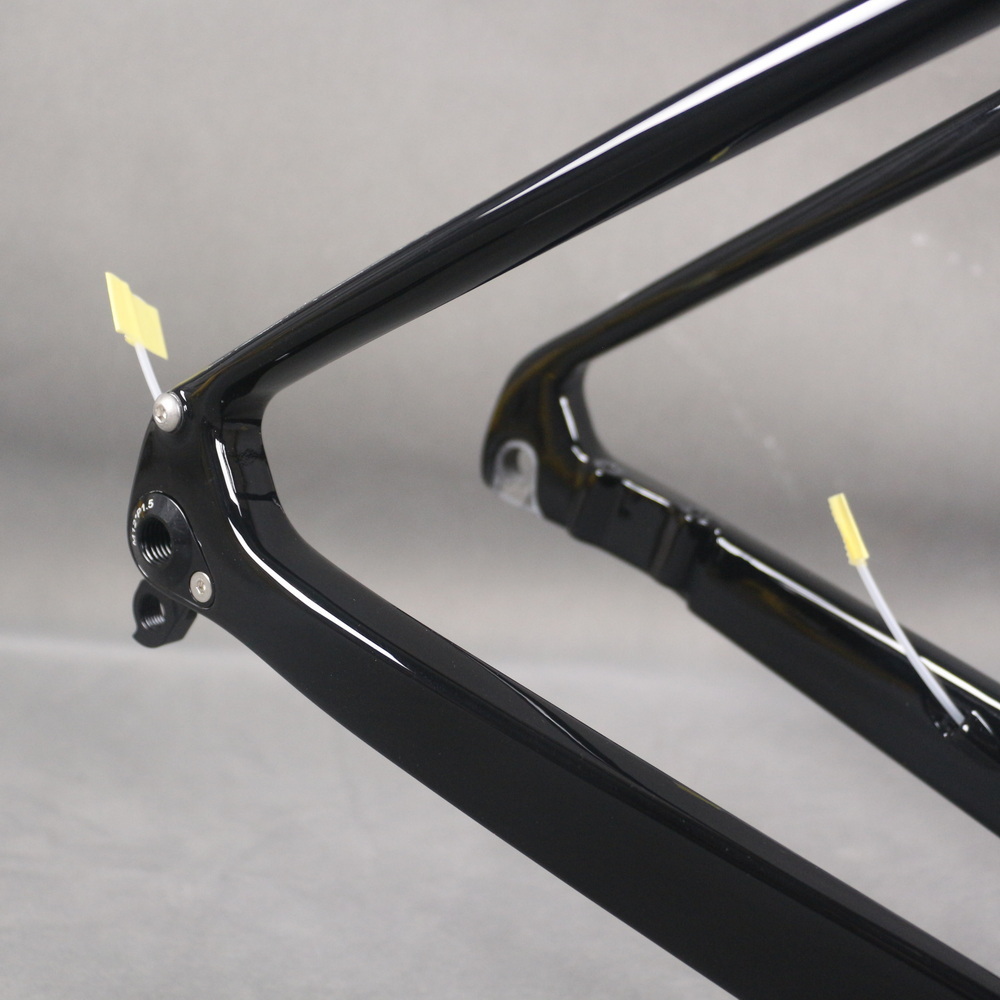

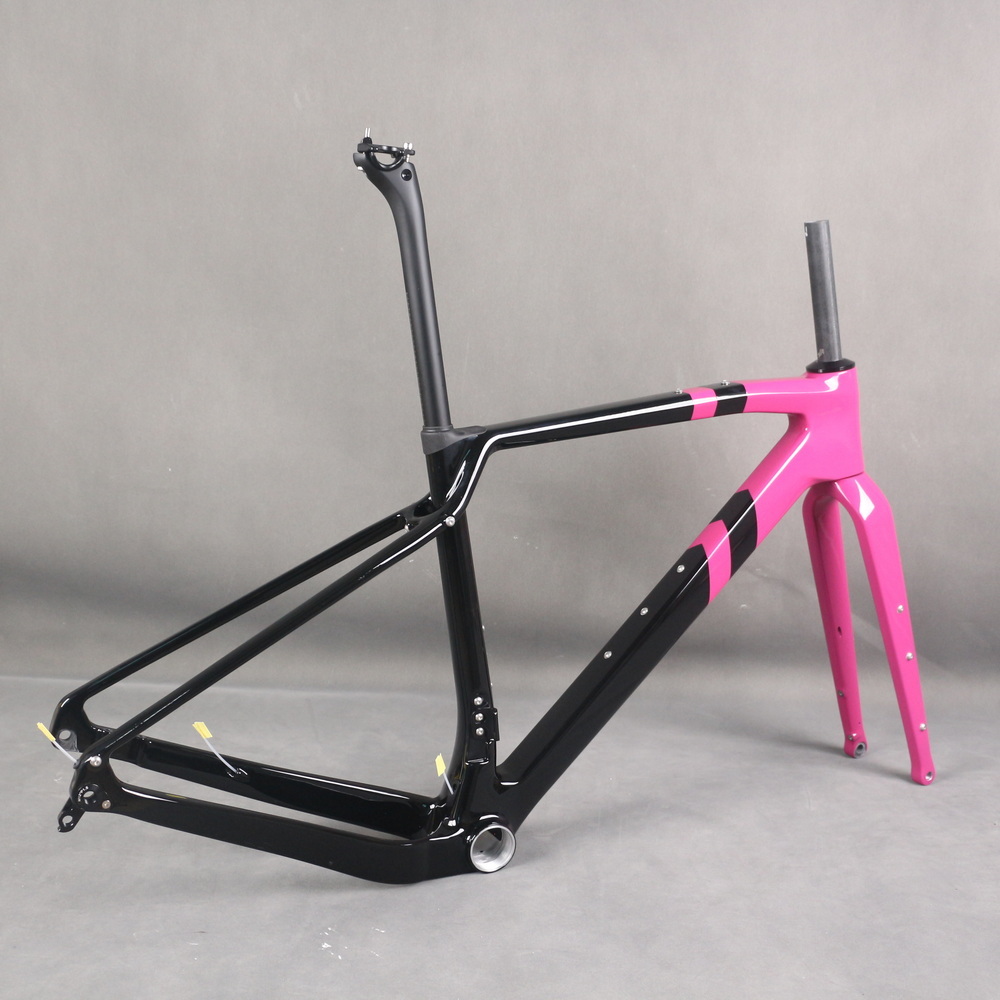

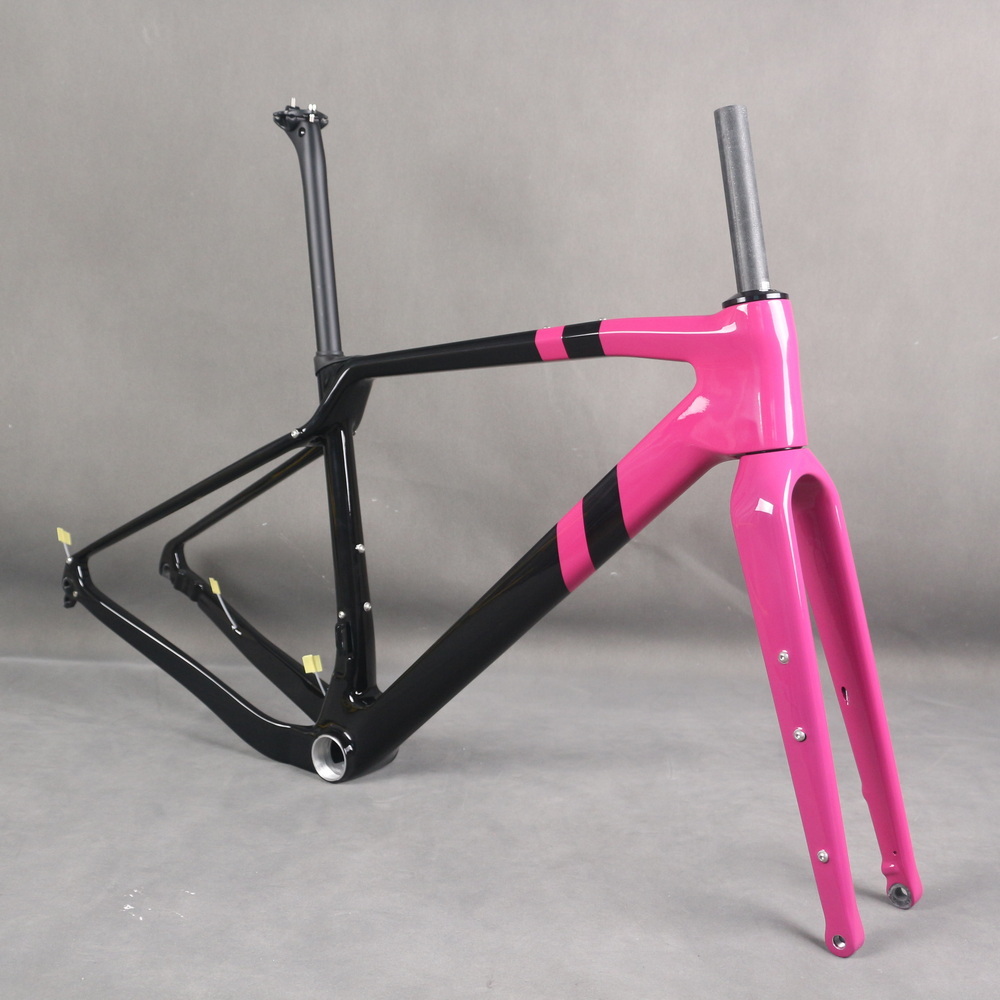

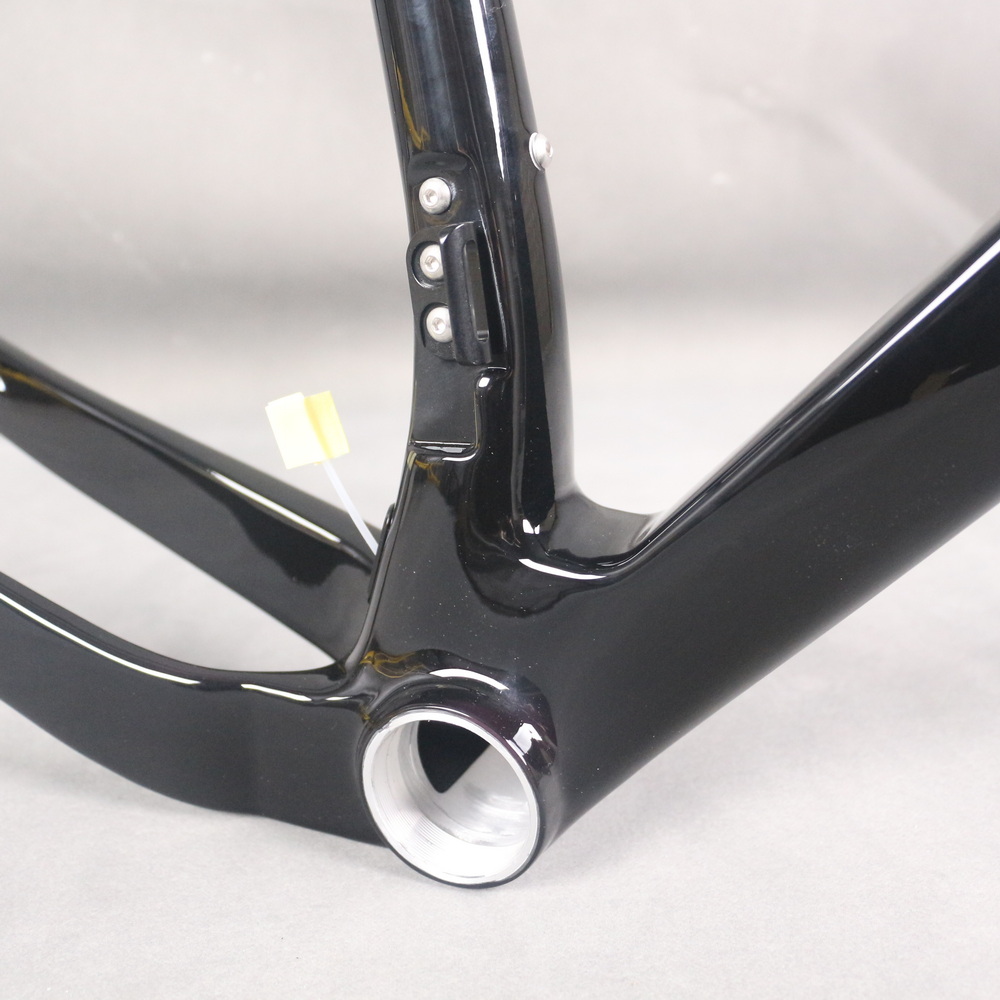

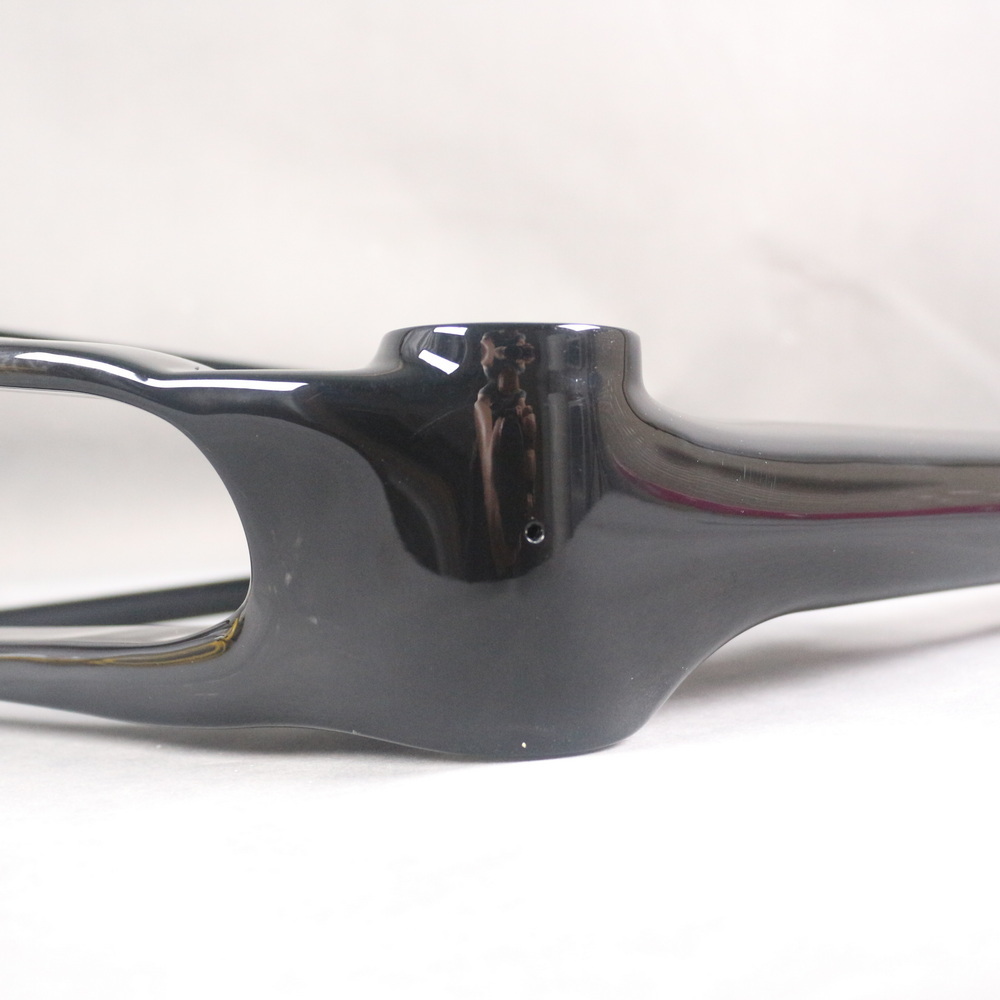

Detail images
below picture frame size is 43cm
Color number PT219C+YS728 glossy
Package
FAQ
- Surface Processing Mode:
- Matte
- is_customized:
- Yes
- Model Number:
- GR047
- Use:
- cyclocross bicycles
- Weight:
- 1133/+-40g (43cm)
- Foldable:
- No
- Material:
- Carbon
- Brand Name:
- SERAPH
- Origin:
- Mainland China
- BB:
- T47 thread
- Max Tire:
- 700C*47C
- Material:
- carbon fiber T1000
- Thru-axle Groupset::
- Di2 and Mechanical Compatible
