Full Internal Cable Disc Gravel Bike Frame GR044 Custom Paint Available Size 49/52/54/56/58cm

Please note the size of the integrated handlebar when placing an order:

90*380mm/90*400mm/90*420mm/90*440mm
100*400mm/100*420mm
110*400mm/110*420mm
120*400mm/120*420mm/120*440mm

Product information

Model GR044 (142*12mm axle)
Size:  49/52/54/56/58cm
Bottom Bracket: BB386
Material: Full carbon Toray T1000
Package contains:  Frame+Fork+ Seatpost+Handlebar+ Spacer+headset

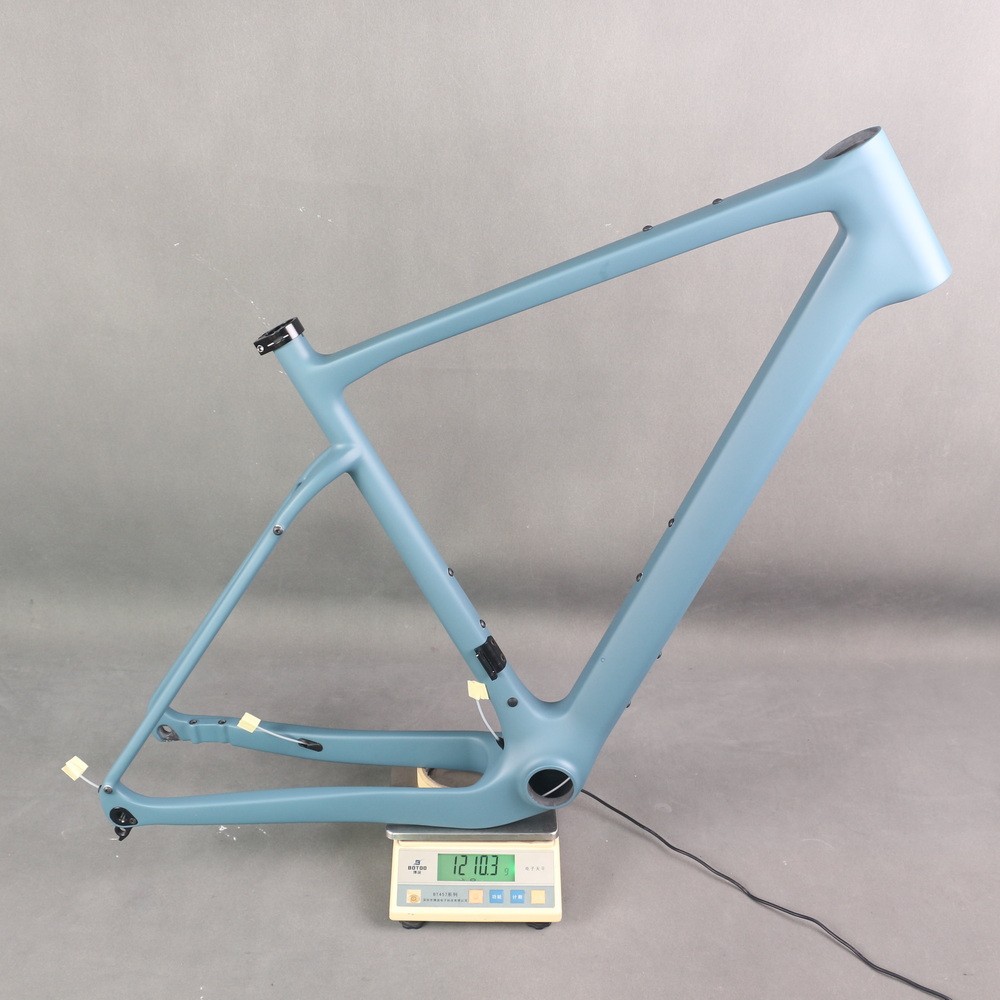

Frame weight： 1210g/+-40g (52cm)
Fork weight： 488g+/-20g
Setback seatpost 219g+/-15g(Zero seatpost)

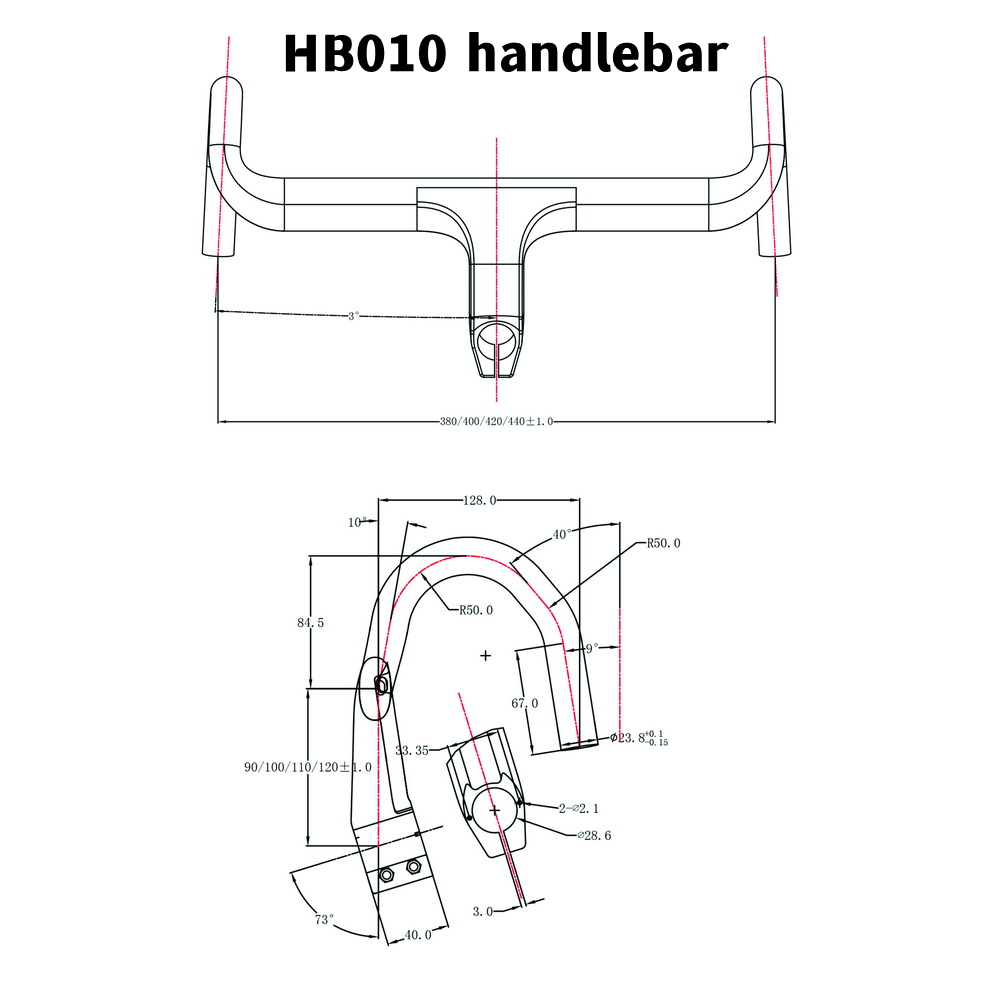

HB010 handlebar： 369g+/-20g
Disc Rotor: Front and Rear 140mm , if 160mm need add adaptor
Headset: 1-1/2"-1 1/2" (Bearing 45°)
Integrated Seat Tube: 27.2mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type:  Flat Mount Disc Brake
Chain Stay: 435mm
Fork Rake: 50mm
Single speed Crankset： 42T
Double speed Crankset： shimano 50-39T
Cable Type: Internal cable
Max Tire: 700C*45C /650B*47mm /27.5&29er*2.1''
Warranty: 2 years

Geometry

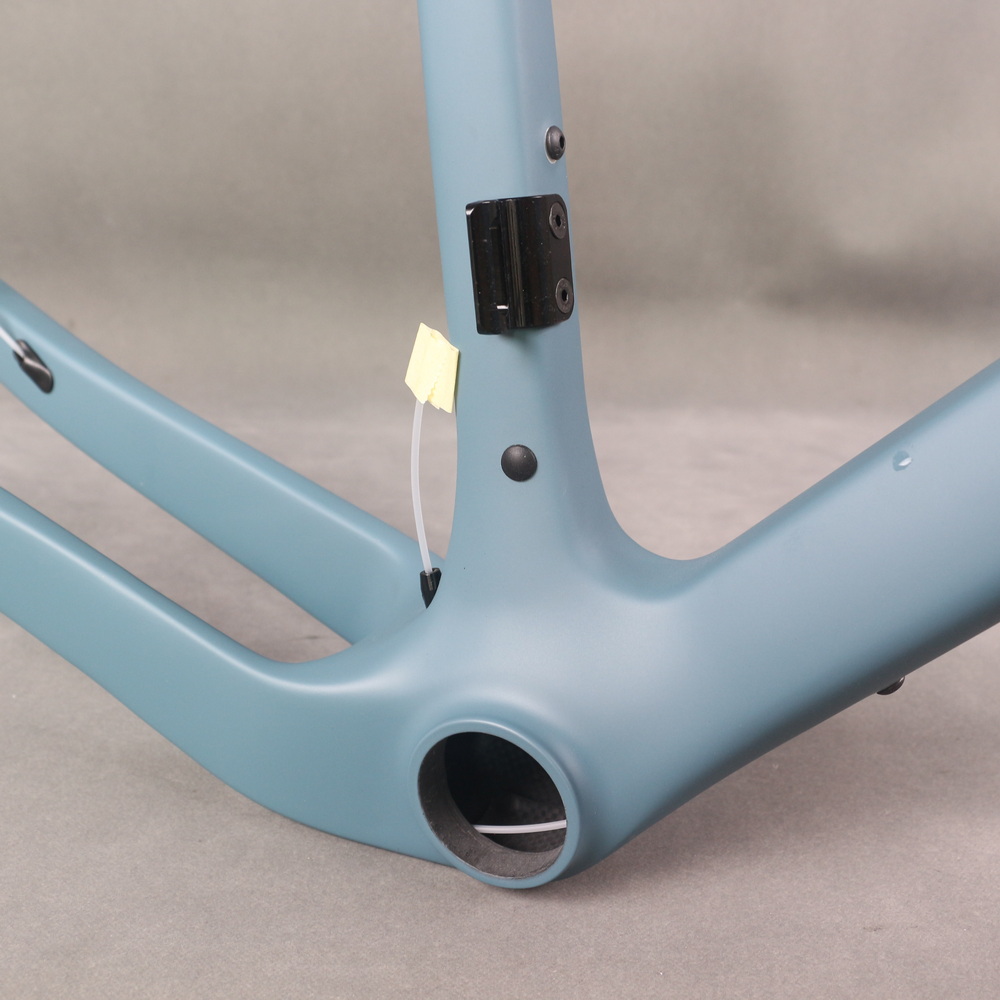

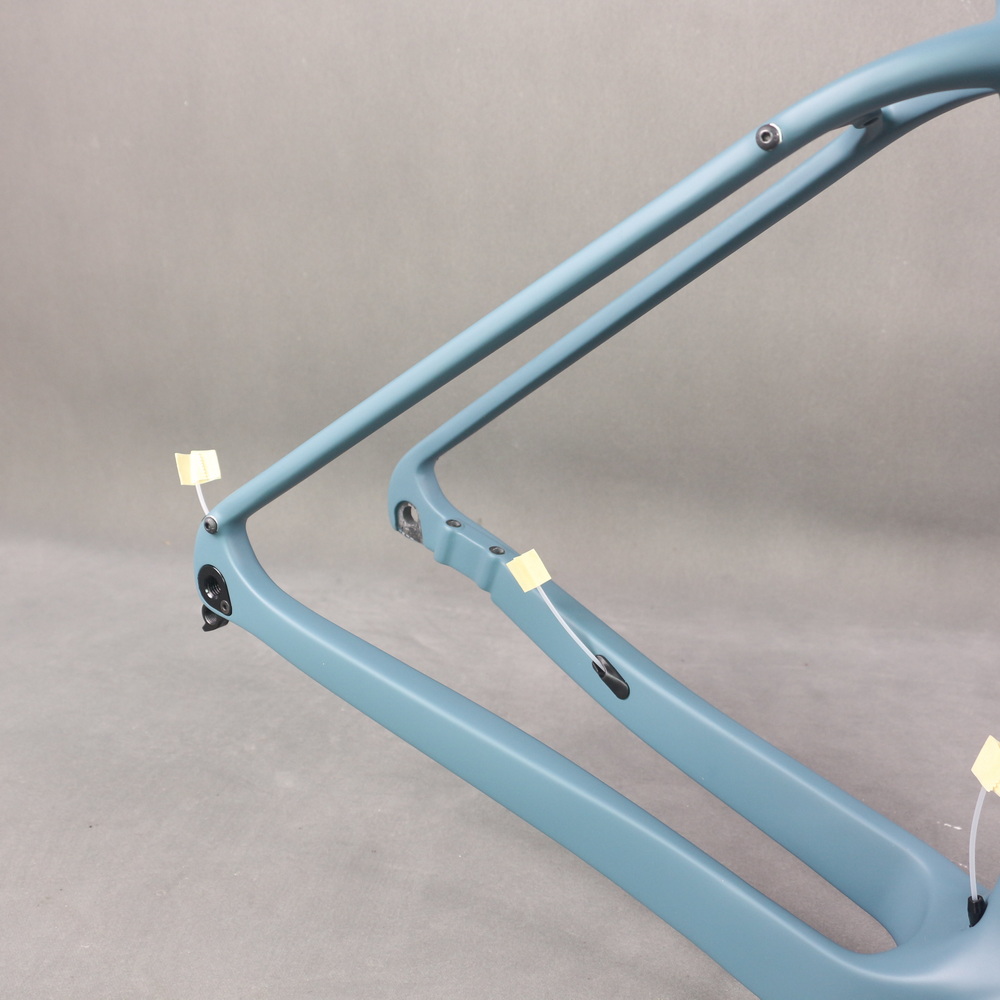

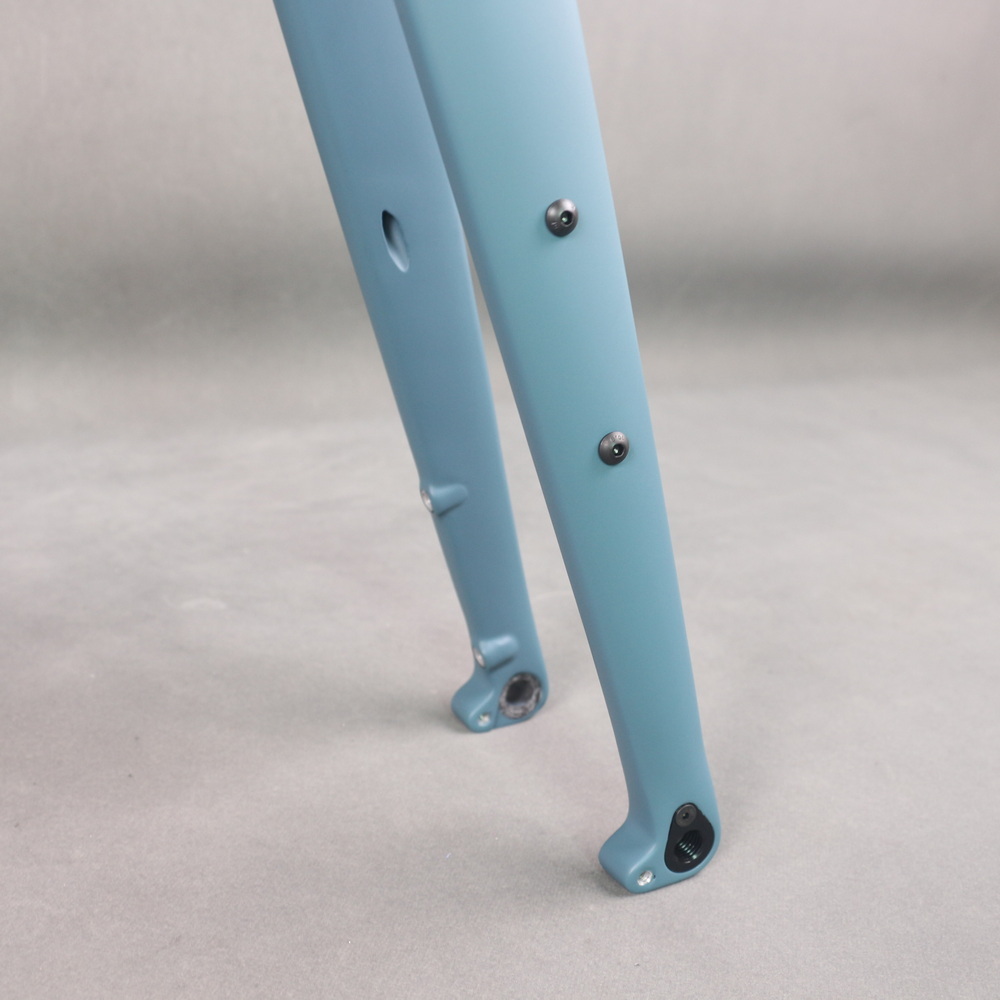

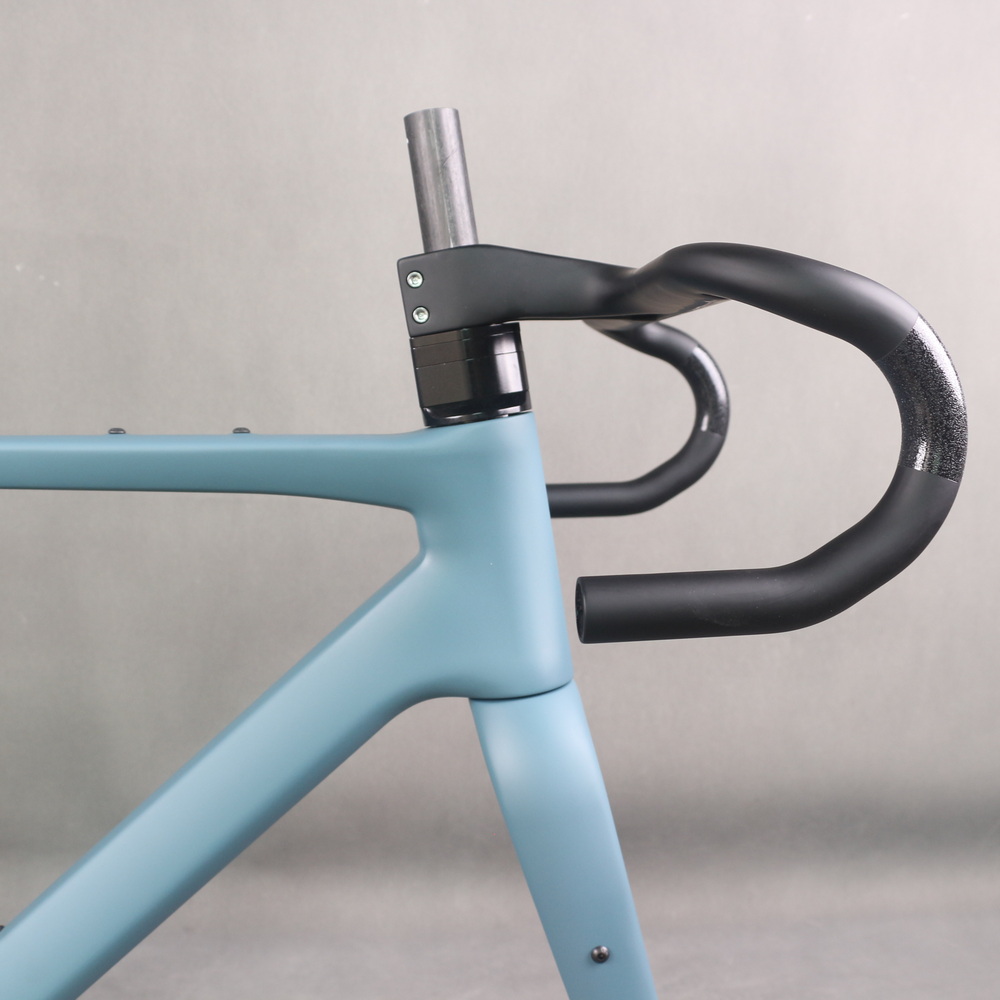

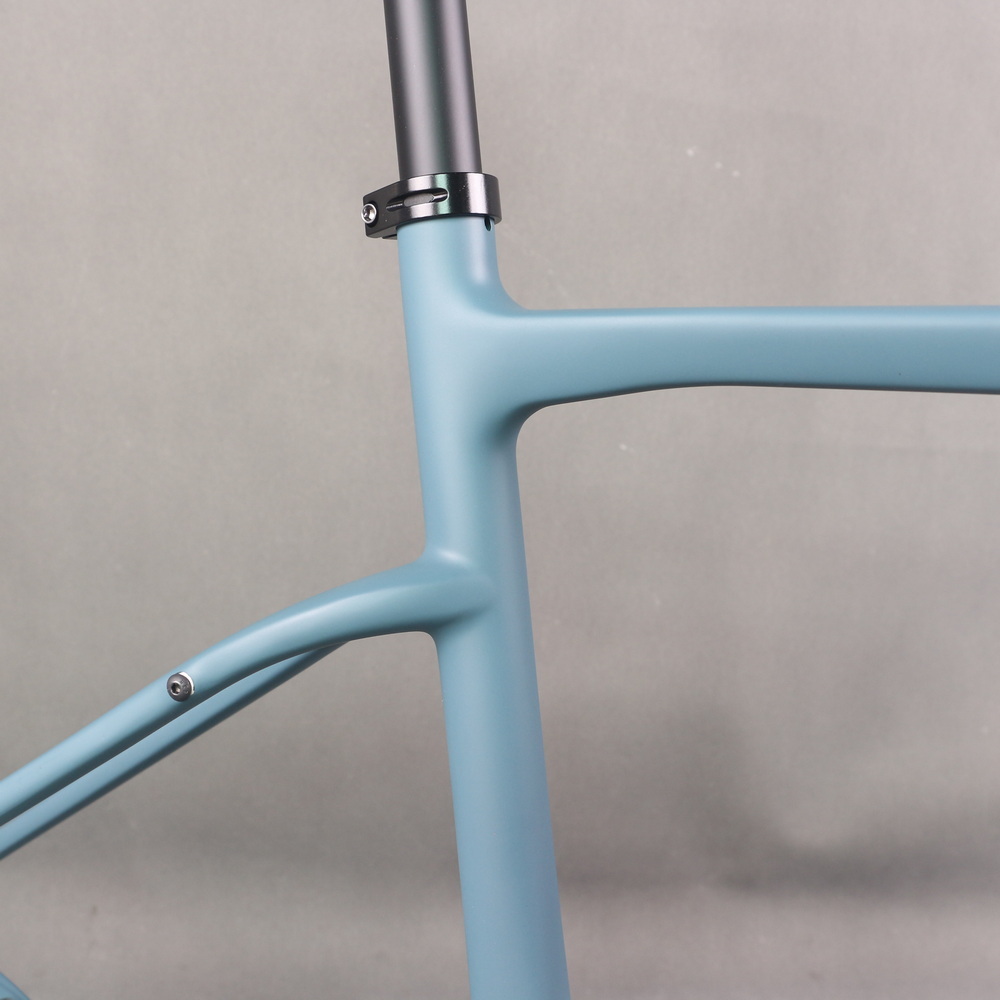

Detail images

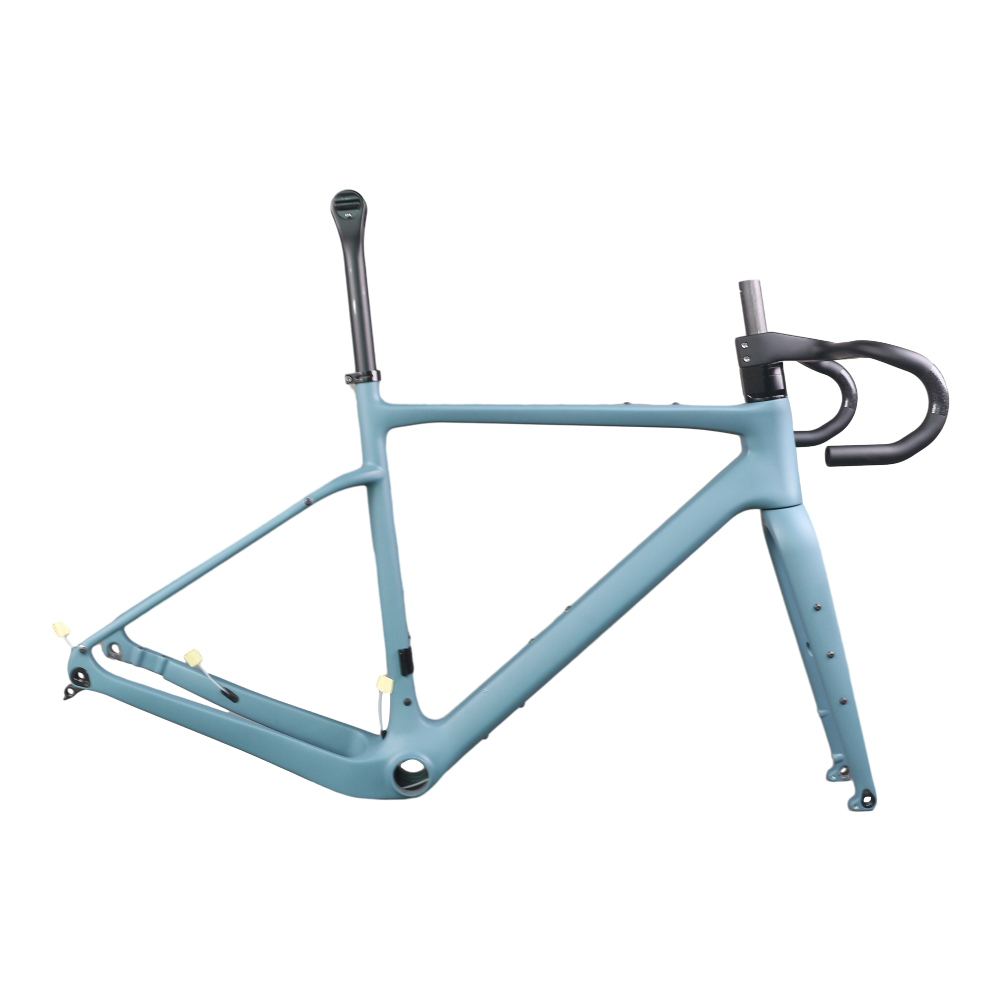

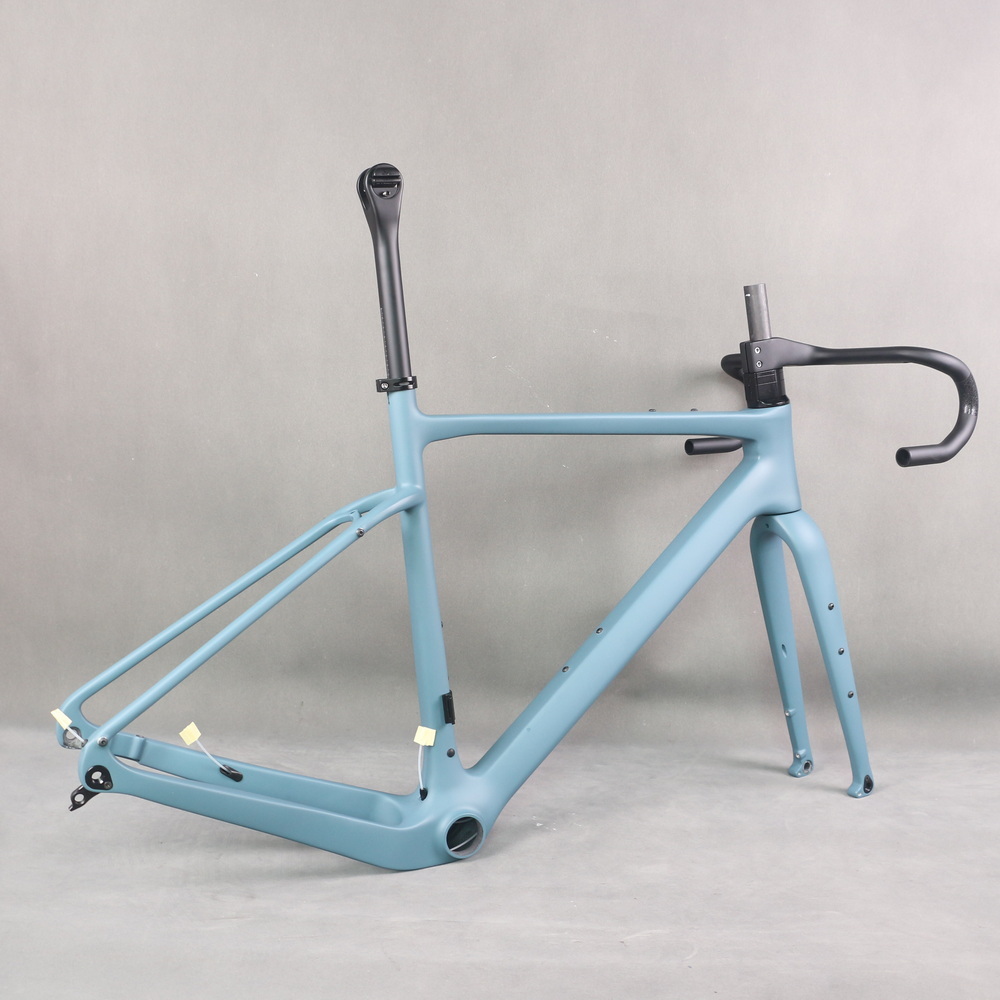

Below picture frame size is 52cm

Color number PT5405C matte

Package

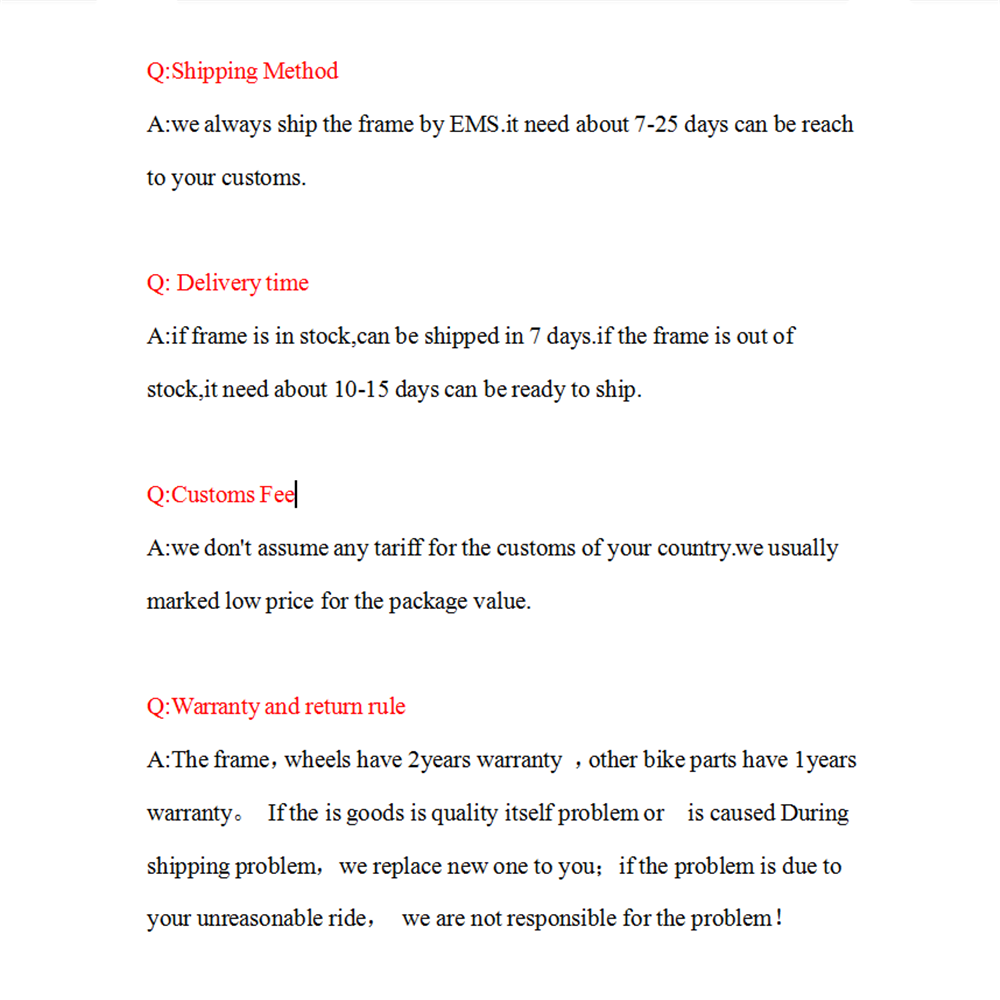

FAQ
