Full Internal Cable Aero Disc Road Bike Frame TT-X34 Plating Red Paint Available Size 47/49/52/54/56/58/60m
The frame does not include the thru axle, if you need it, please buy it together
information
Type: TT-X34 (disc Aero road frame )
The Frame set: Frame+Fork+Seatpost+handlebar+stem+spacers+headset
Material: Hight Modulus Toray T1000 Carbon Fiber

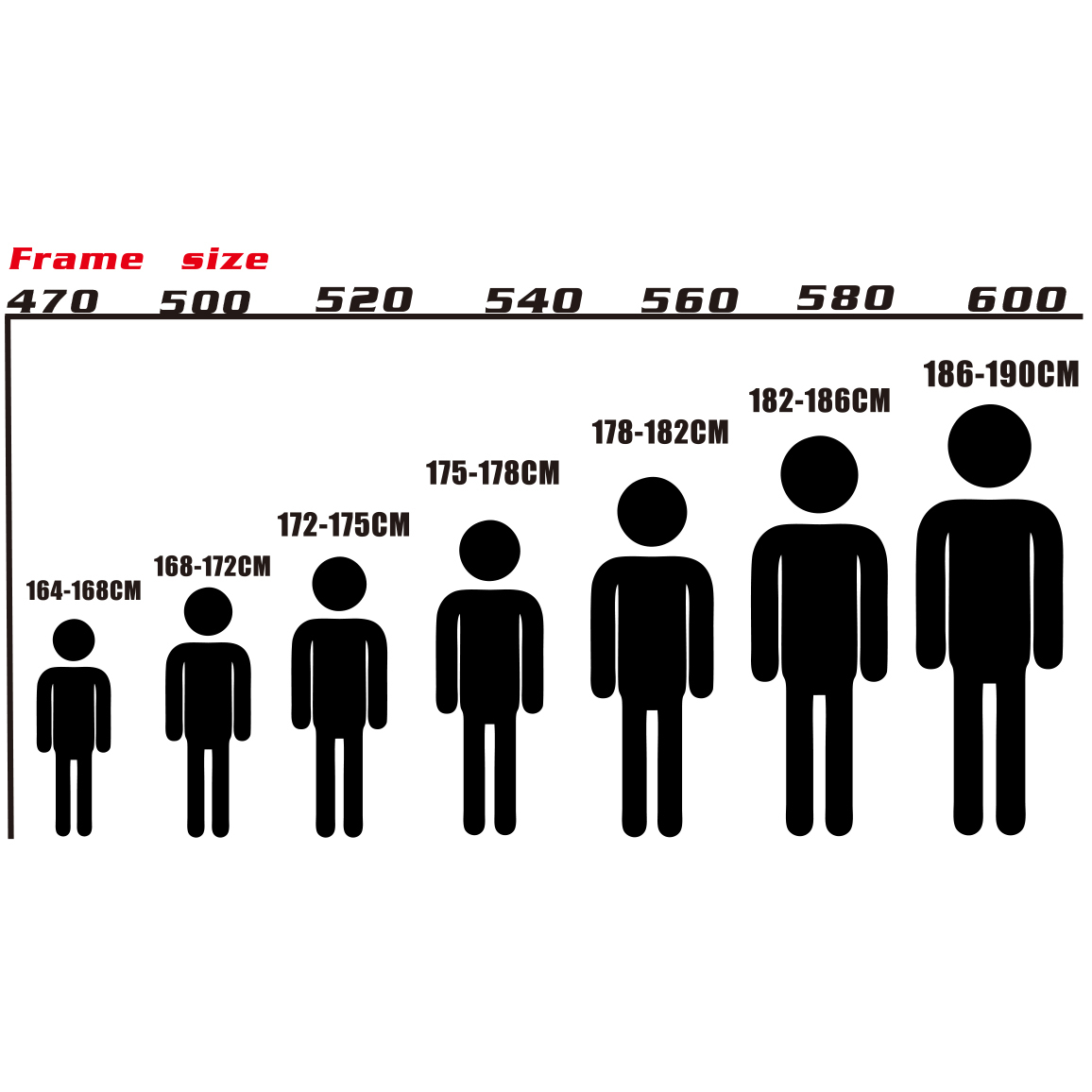

Size: 47/50/52/54/56/58/60cm
Headset Size: Top 1-1/2 (52mm) Down 1-1/2(52mm)
Bottom Bracket:BB86
Thru Axles: Front 100*12 Rear 142*12mm
Frame Weight : Frame:1299/+-40g (Size 56CM )
Fork Weight : Fork:380/+-20g
Seatpost Weight : Seatpost: 256/+-10g
Handlebar weight： Handlebar: 332/+-15g
Disc Rotor: front and rear 140mm (160mm need add adapter)
Max Tires: 700*30C
Warranty: 2 years
Please note the size of the integrated handlebar when placing an order:

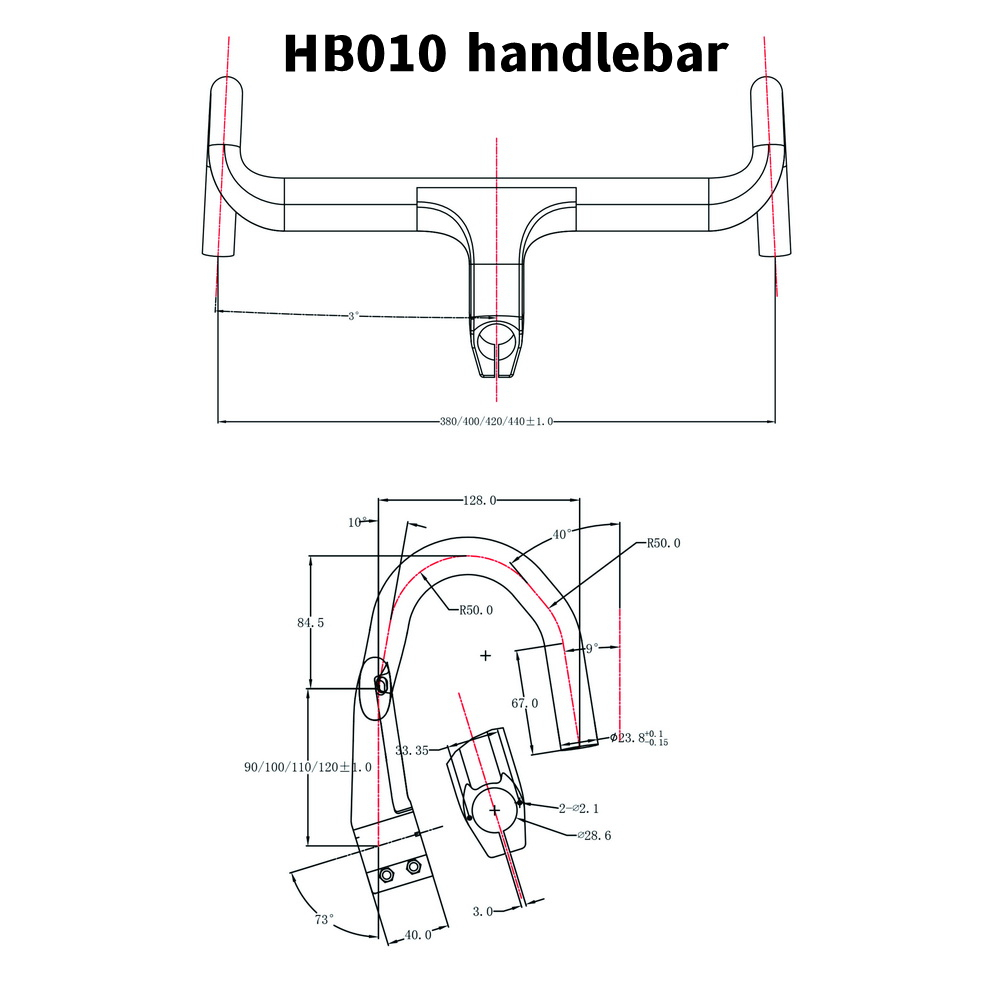

HB010 handlebar Available sizes:
90*380mm/90*420mm/90*440mm
100*400mm/100*420mm/100*440mm
110*400mm/110*420mm
120*400mm/120*420mm/120*440mm
Geometry

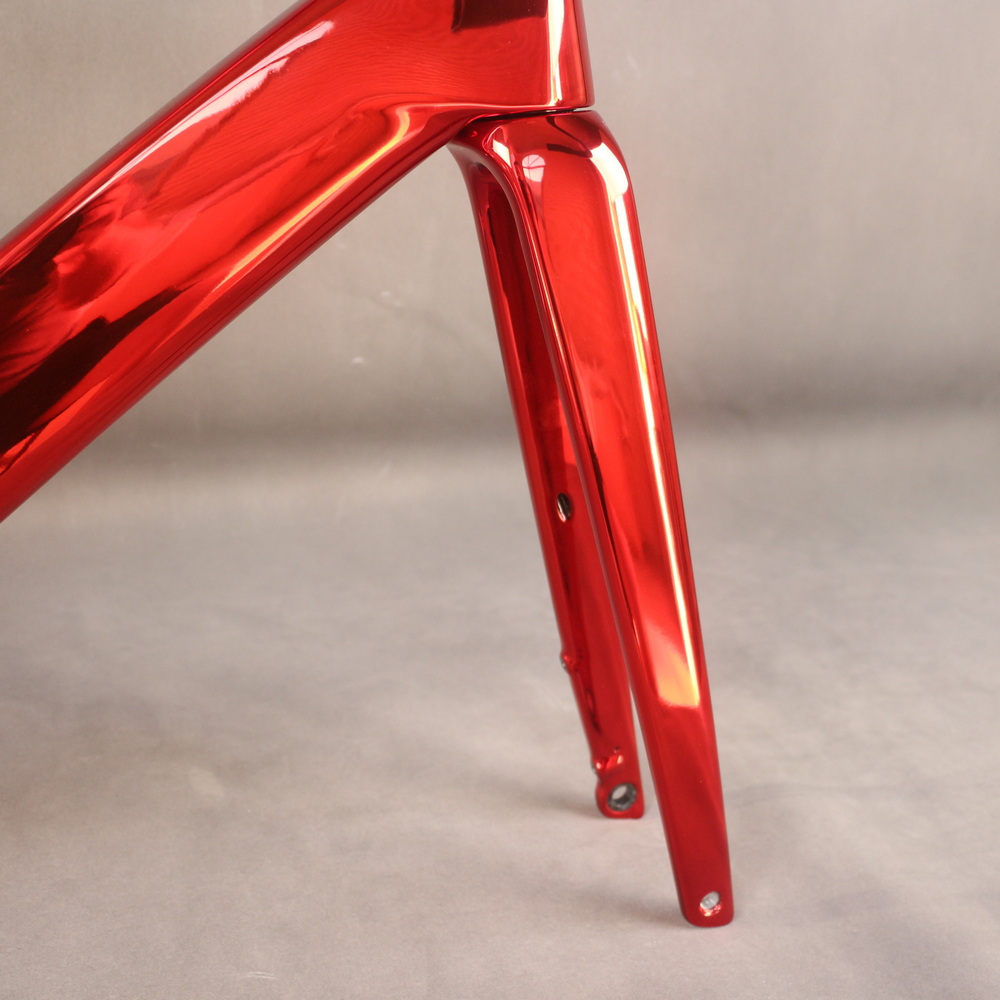

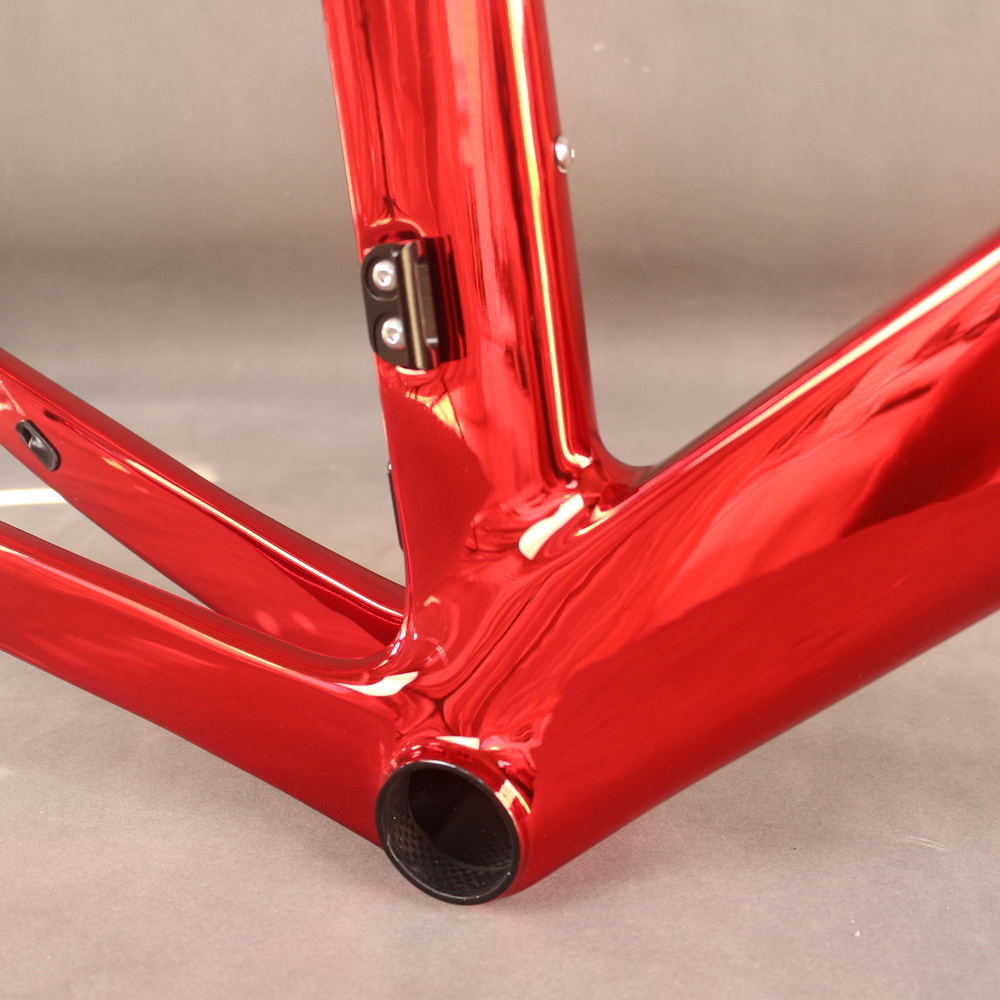

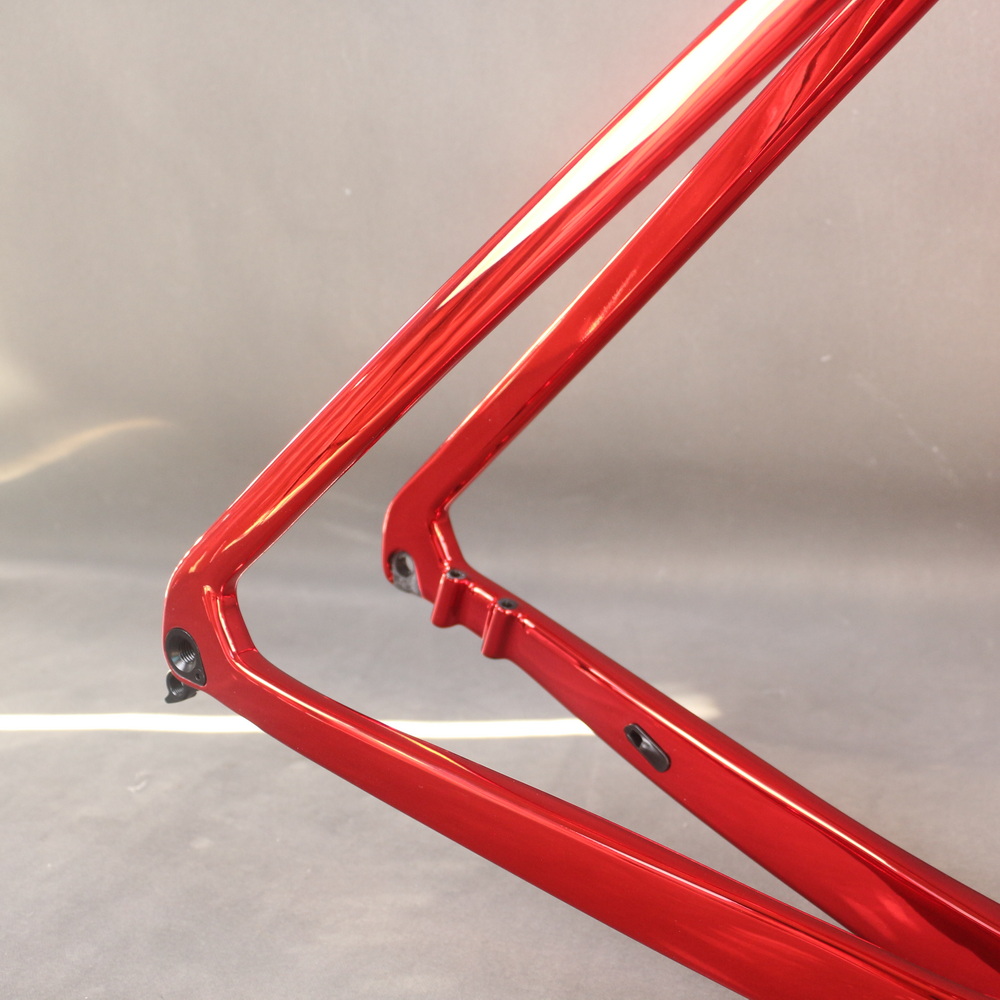

Detail images

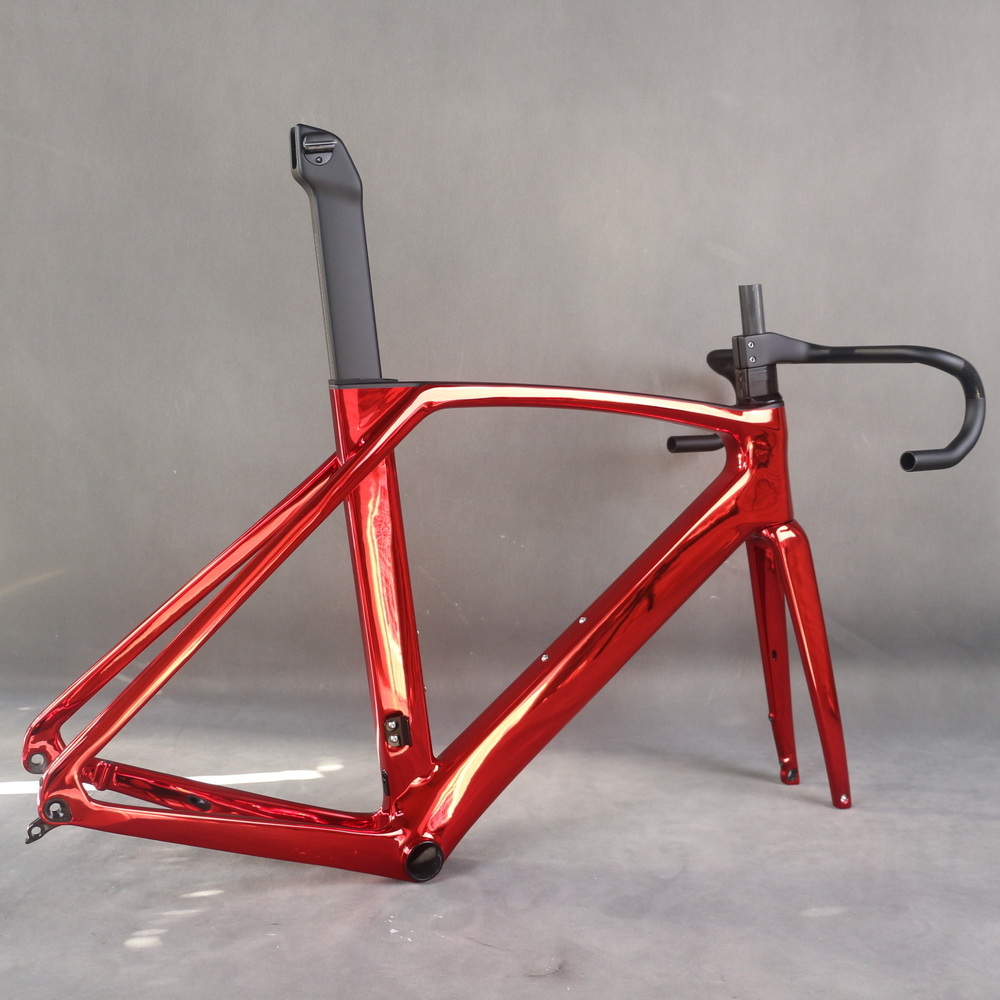

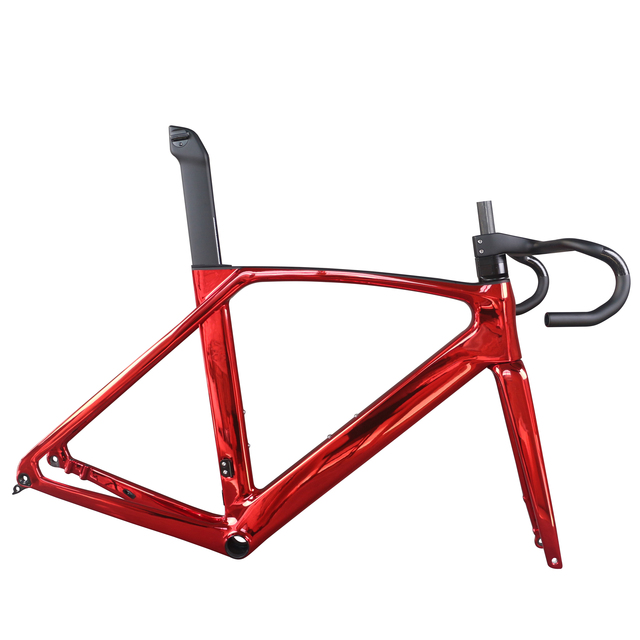

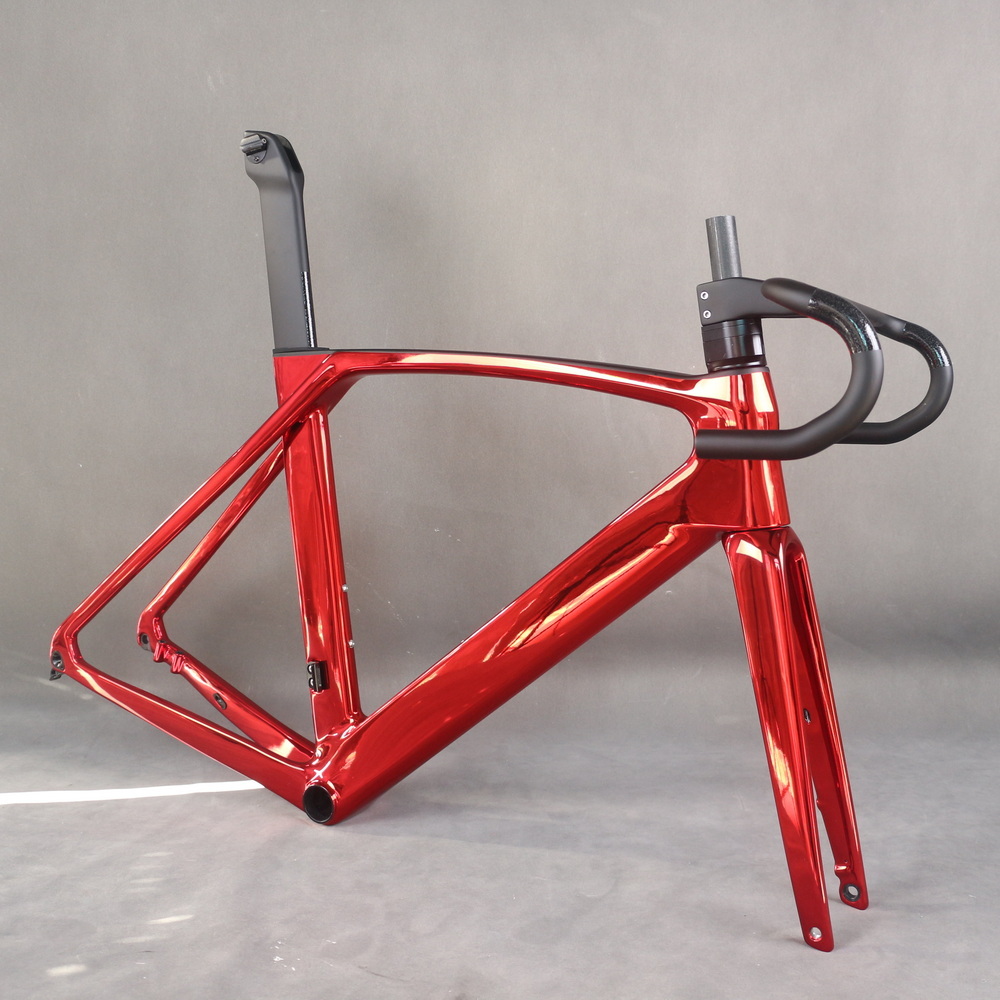

Below picture frame size 56cm
Color number Plating Red Paint glossy+black matte
Foctory test
Shipping
FAQ
- Surface Processing Mode:
- Gloss
- is_customized:
- Yes
- Model Number:
- TT-X34
- Use:
- Road Bicycles
- Weight:
- 1299/+-40g 56cm
- Foldable:
- No
- Material:
- Carbon
- Brand Name:
- SERAPH
- Origin:
- Mainland China
- Bottom Bracket:
- BB86
- Max Tires:
- 700X30C
- Routing:
- Full Internal Cables
- Warranty:
- 2 years
