Full Carbon Toray T1000 Disc Gravel Bicycle Frame GR044 With Stem Handlebar Available Size 49-58cm

Please note the size of the stem+HB012 handlebar when placing an order:
Stem Size:70/80/90/100/110/120mm

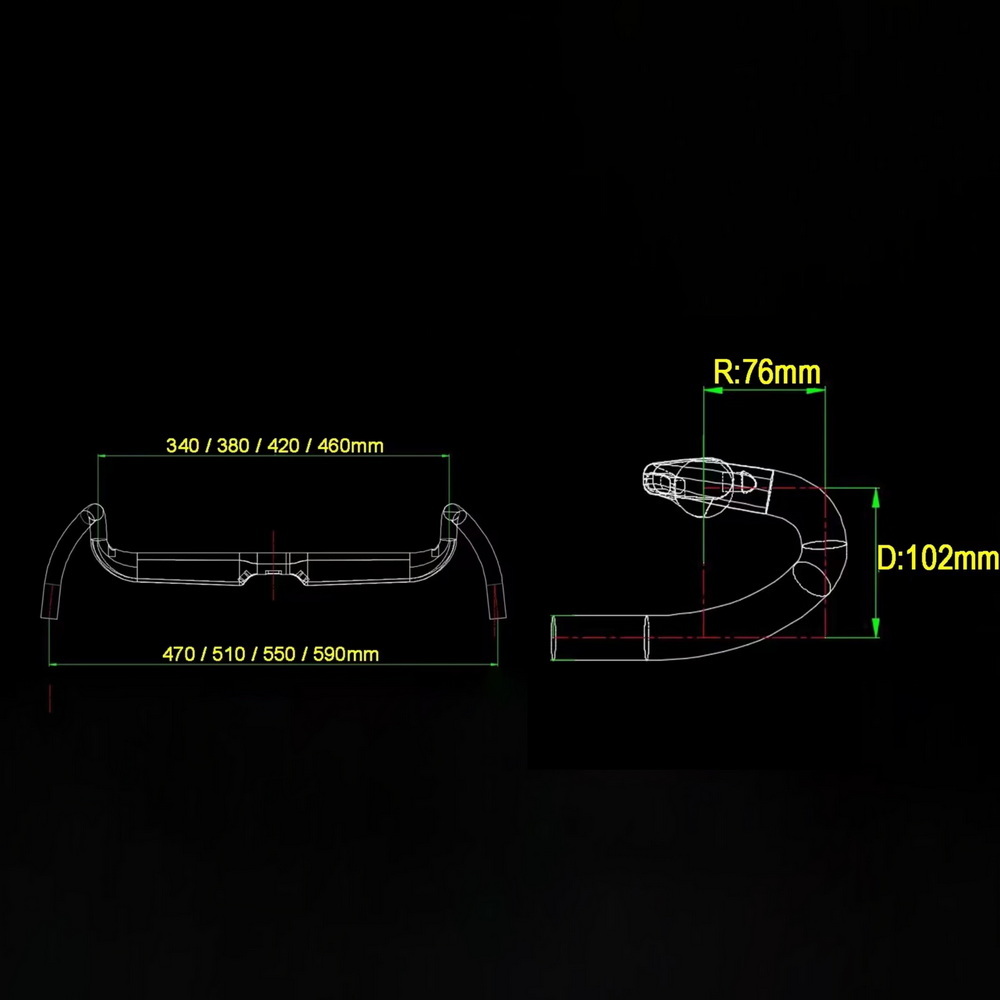

Handlebar size: 470/510/550/590mm

Product information

Model GR044 (142*12mm axle)
Size:  49/52/54/56/58cm
Bottom Bracket: BB386
Material: Full carbon Toray T1000
Package contains:  Frame+Fork+ Seatpost+stem+Handlebar+ Spacer+headset

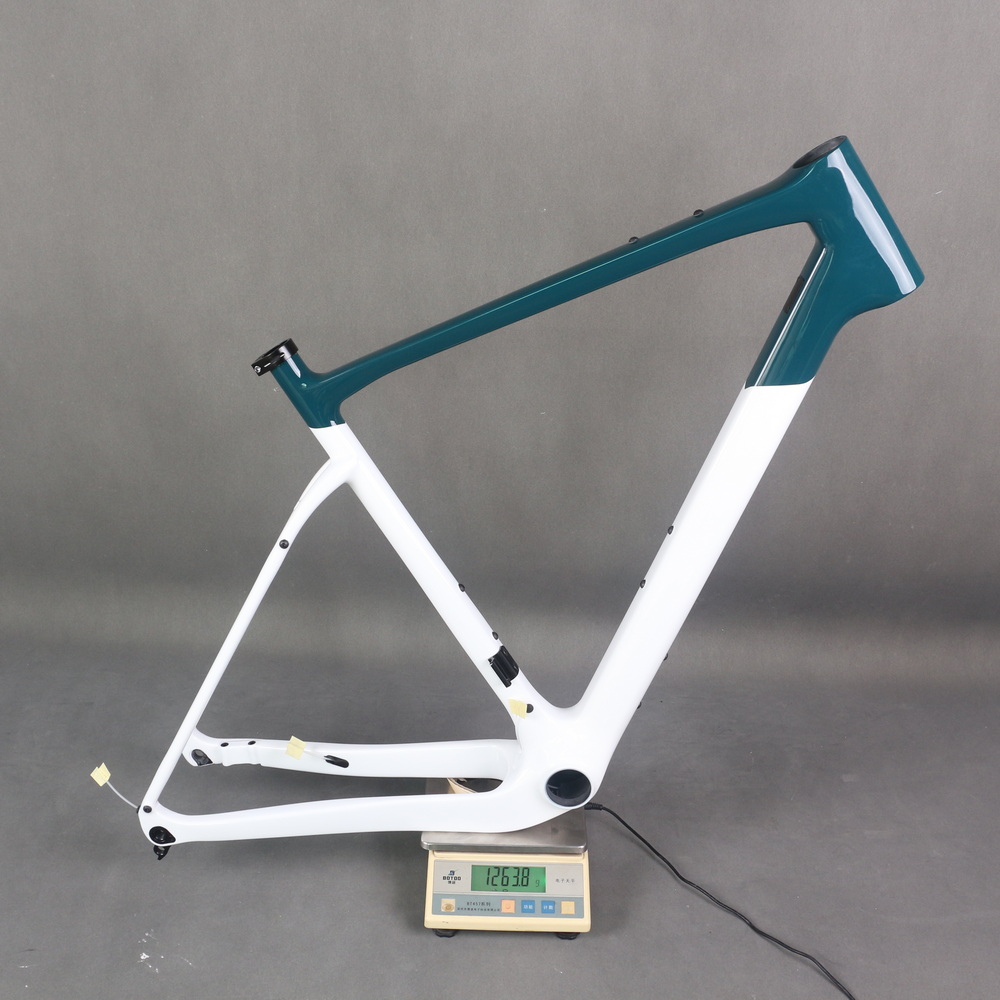

Frame weight： 1263g/+-40g (54cm)

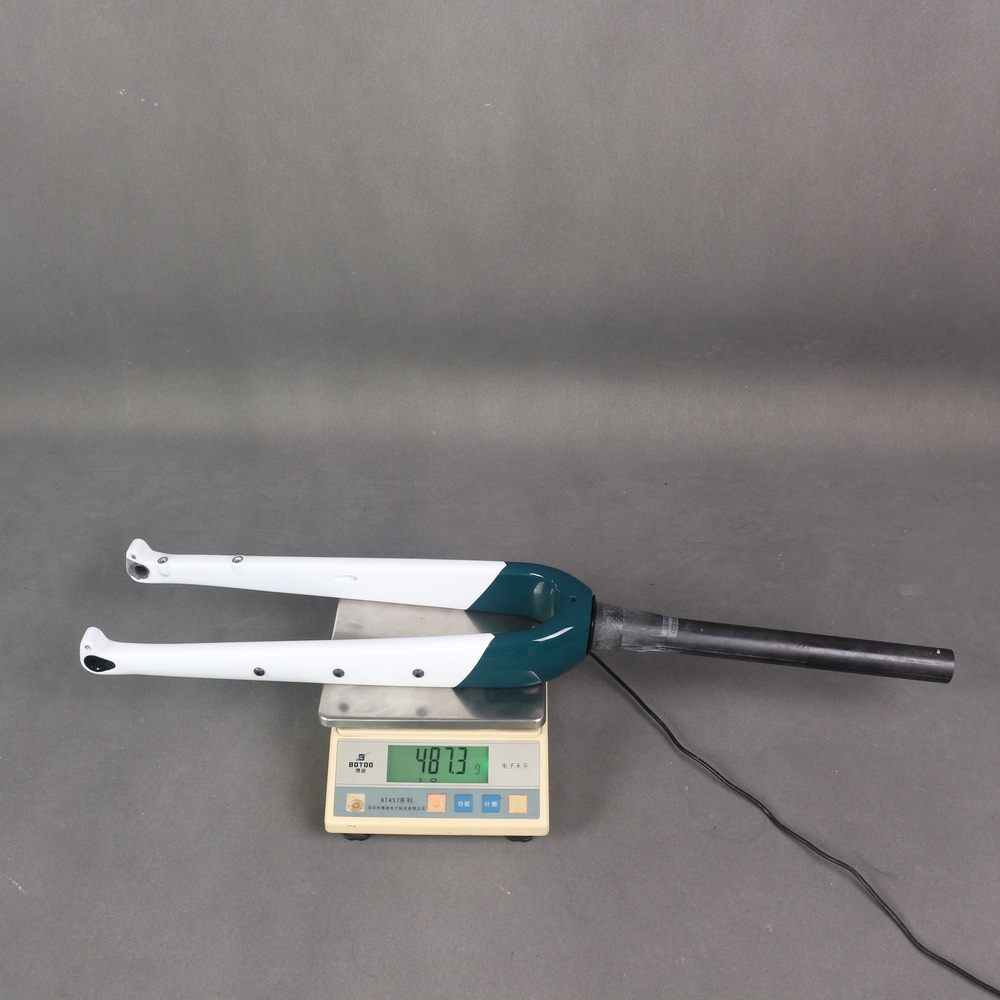

Fork weight： 487g+/-20g
Zero seatpost 163g+/-15g(setback seatpost)
handlebar weight： 401g+/-20g
Headset: 1-1/2"-1 1/2" (Bearing 45°)
Integrated Seat Tube: 27.2mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type:  Flat Mount Disc Brake
Chain Stay: 435mm
Fork Rake: 50mm
Single speed Crankset： 42T
Double speed Crankset： shimano 50-39T
Disc Rotor: Front and Rear 140mm , if 160mm need add adaptor
Max Tire: 700C*45C /650B*47mm /27.5&29er*2.1''
Warranty: 2 years

Geometry

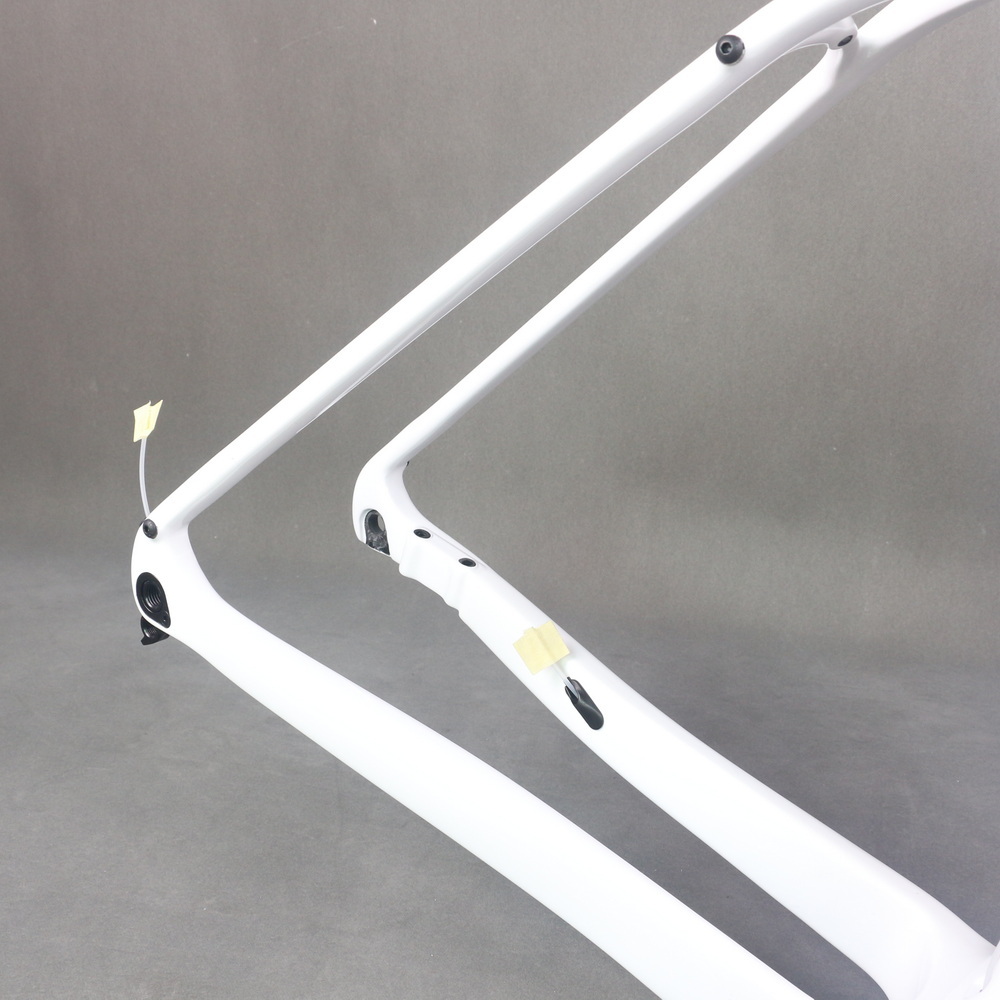

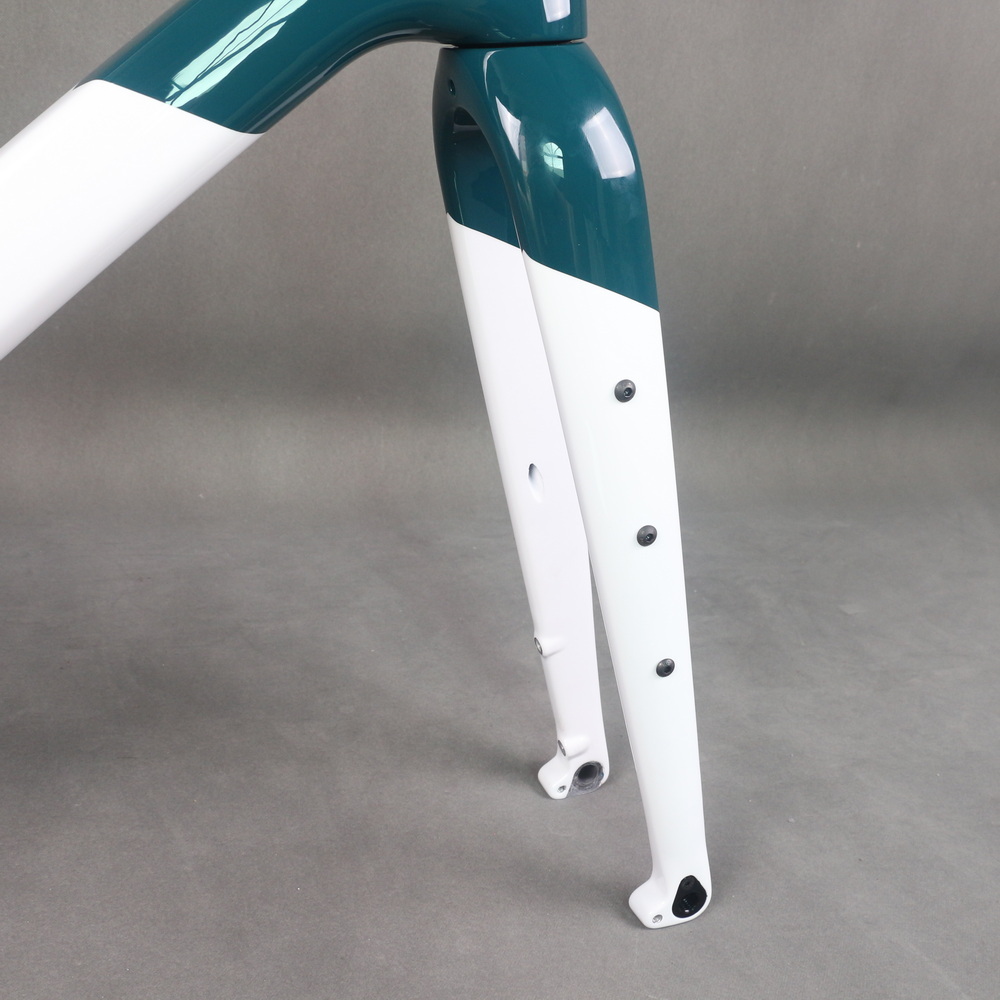

Detail images

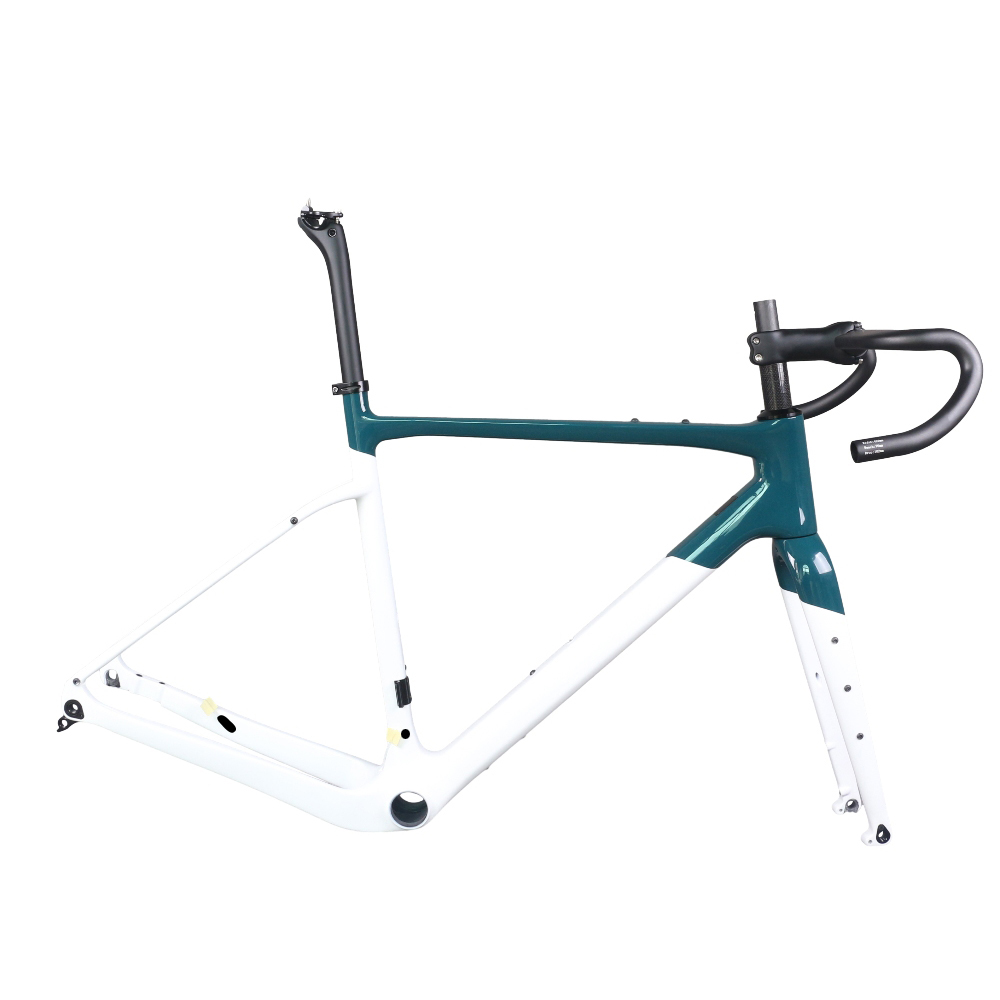

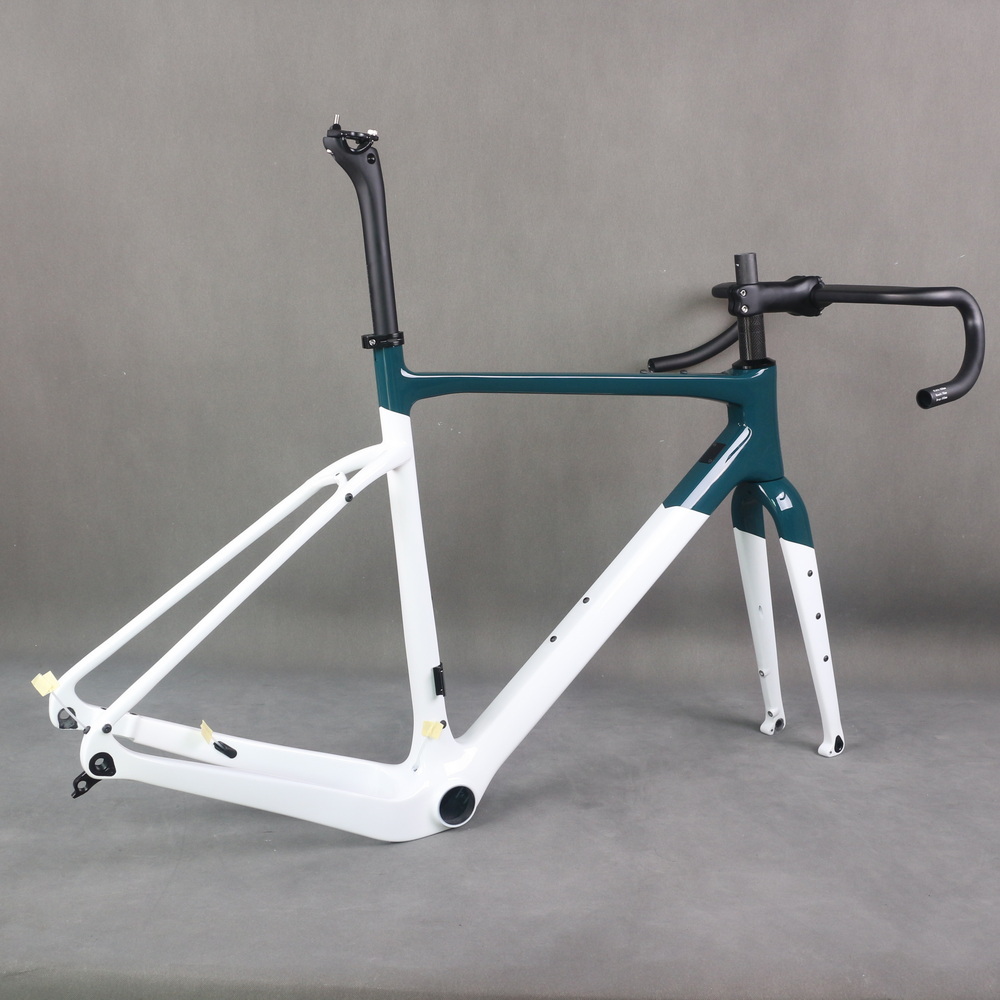

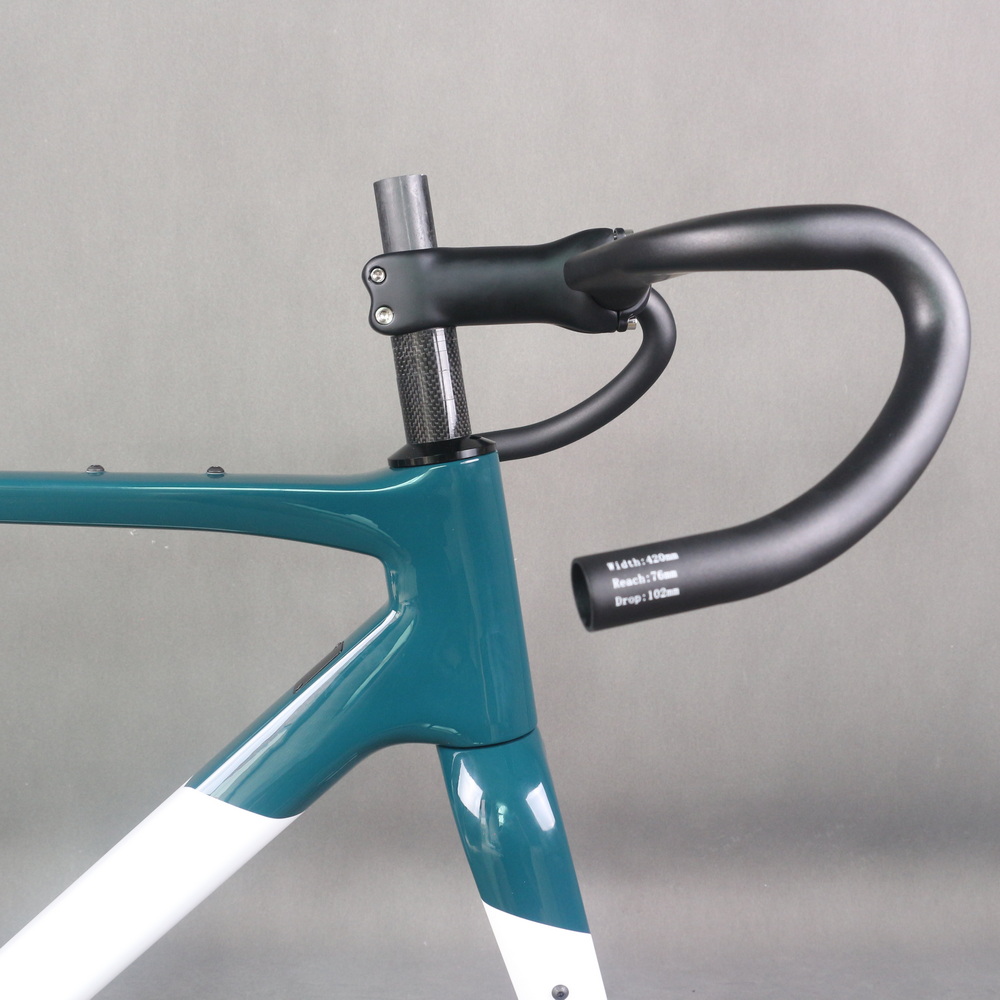

Below picture frame size is 54cm
Color number PT3165C+YS701

Package

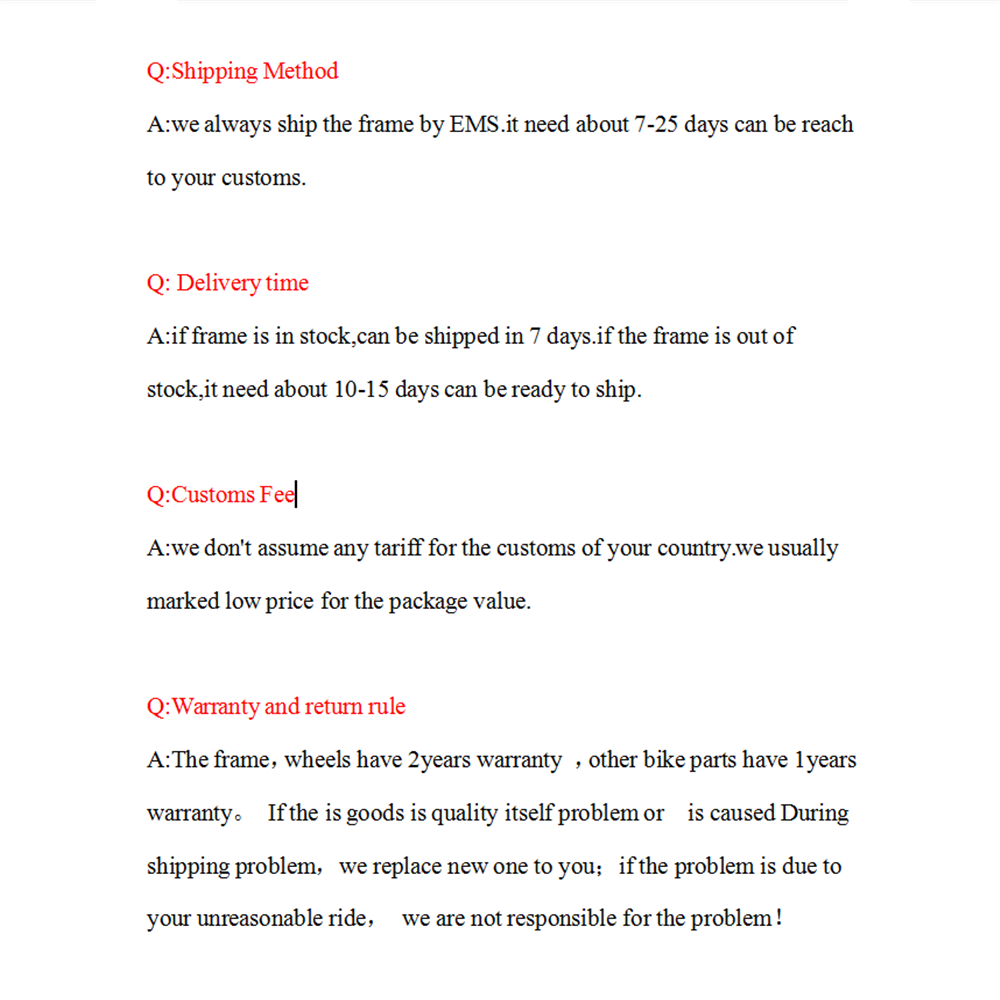

FAQ
