SERAPH
The frame does not include the thru axle, if you need it, please buy it together
Please note the size of the integrated handlebar when placing an order:
90*380mm/90*400mm/90*420mm/90*440mm
100*400mm/100*420mm
110*400mm/110*420mm
120*400mm/120*420mm/120*440mm
Product information
Model GR044 (142*12mm axle)
Size: 49/52/54/56/58cm
Bottom Bracket: BB386
Material: Full carbon Toray T1000
Package contains: Frame+Fork+ Seatpost+ Clamp+Handlebar+ Spacer

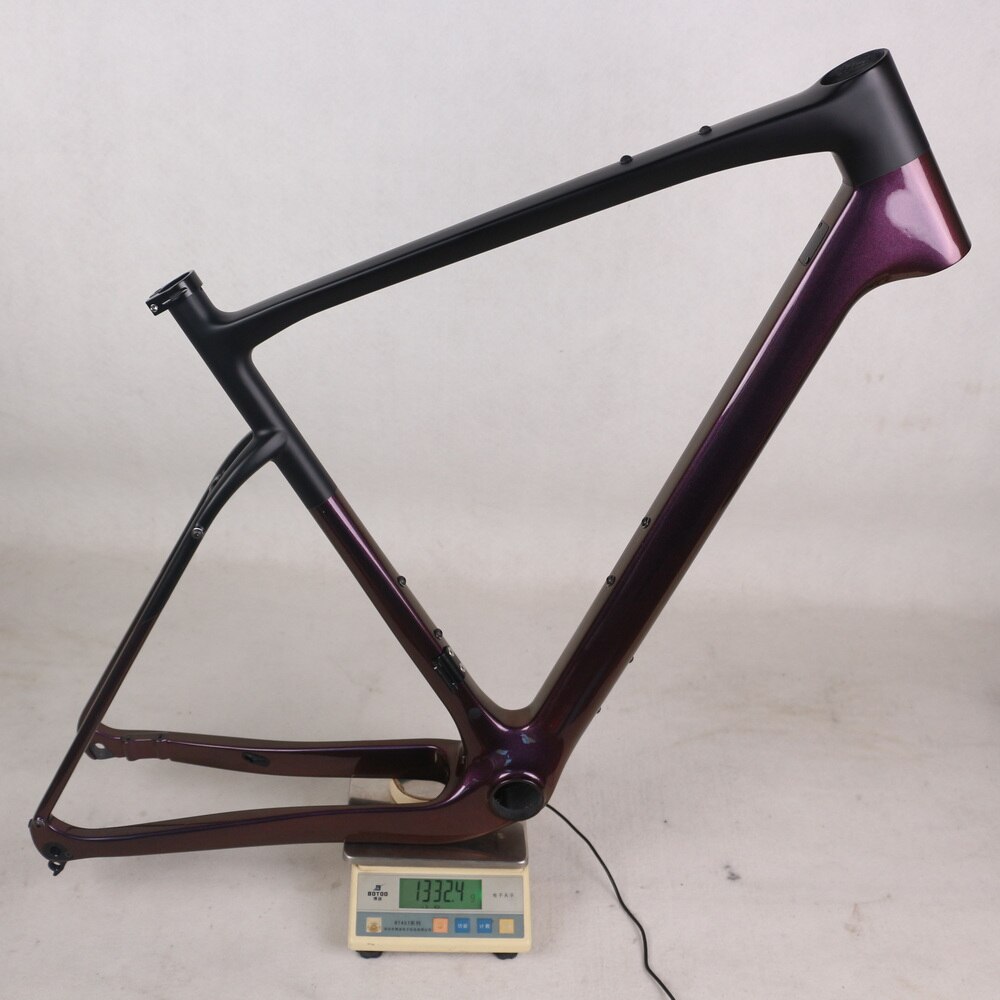

Frame weight： 1332g/+-40g (56cm)

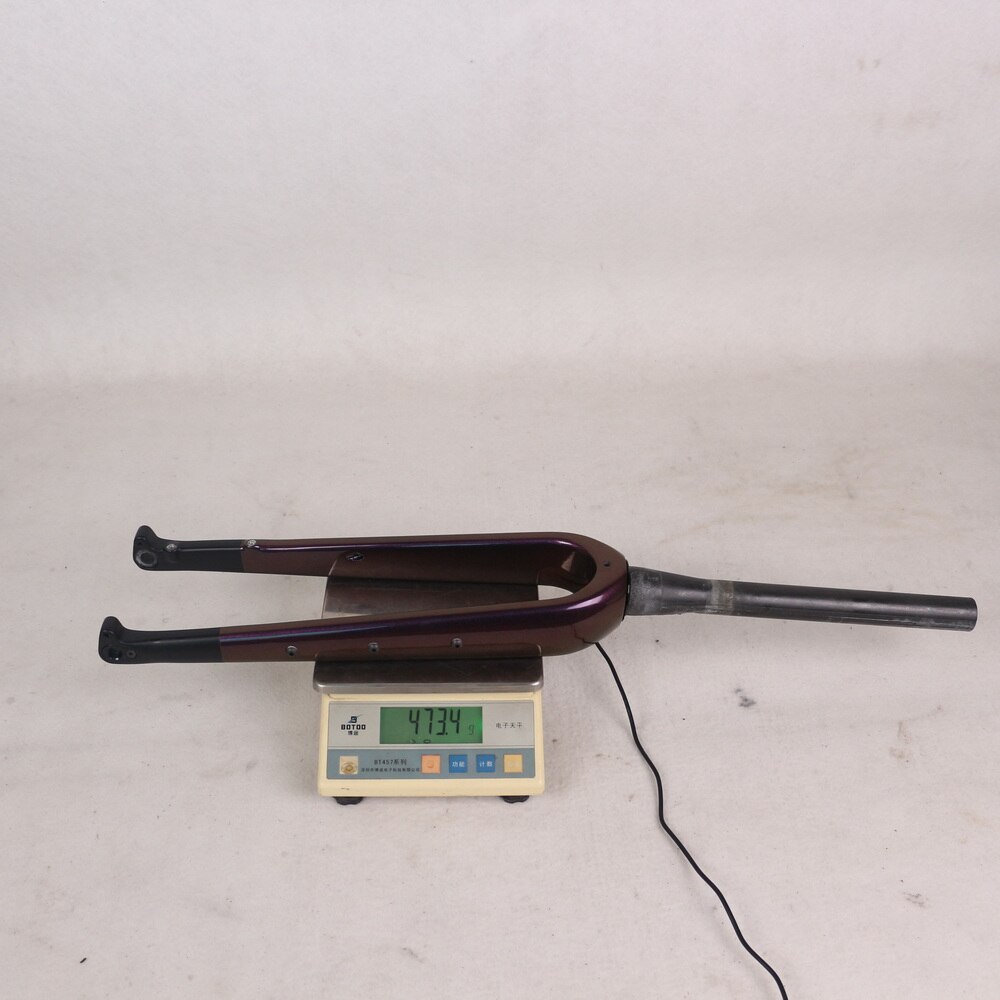

Fork weight： 473g+/-20g

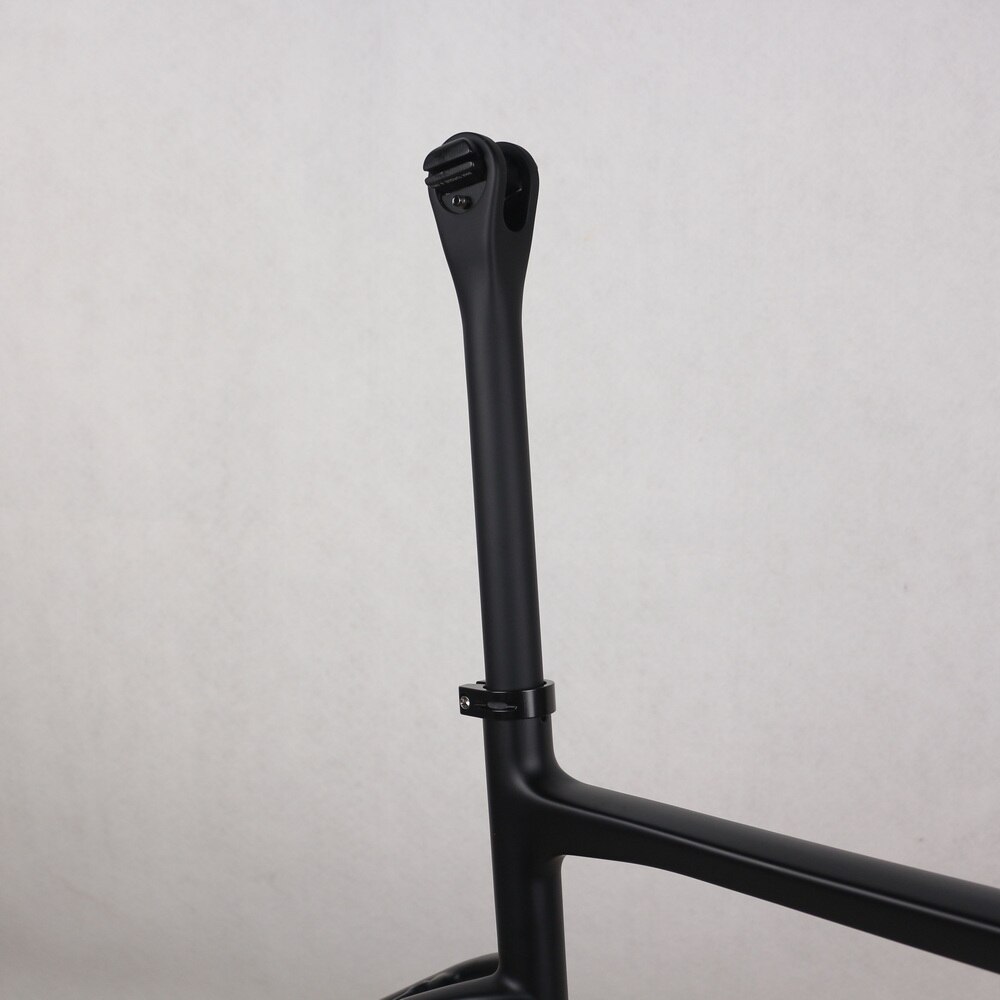

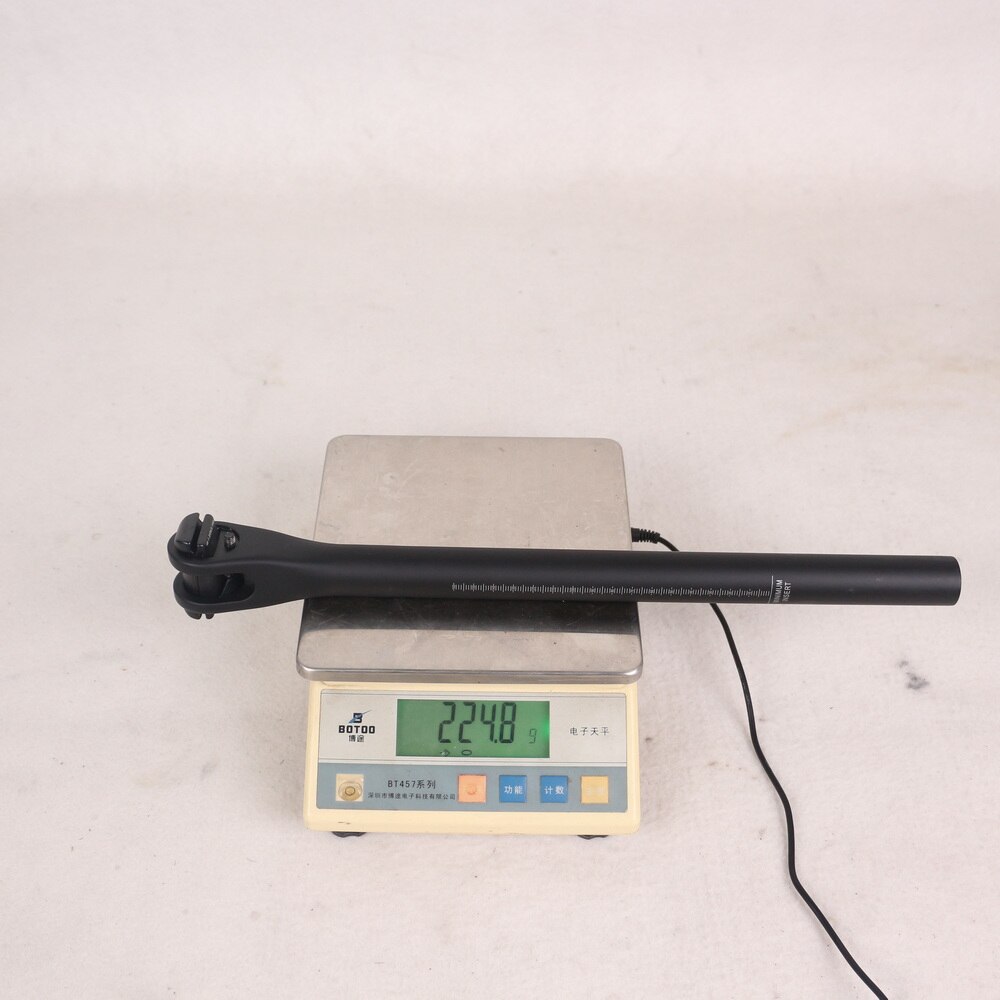

Zero seatpost 224g+/-15g(Zero seatpost)

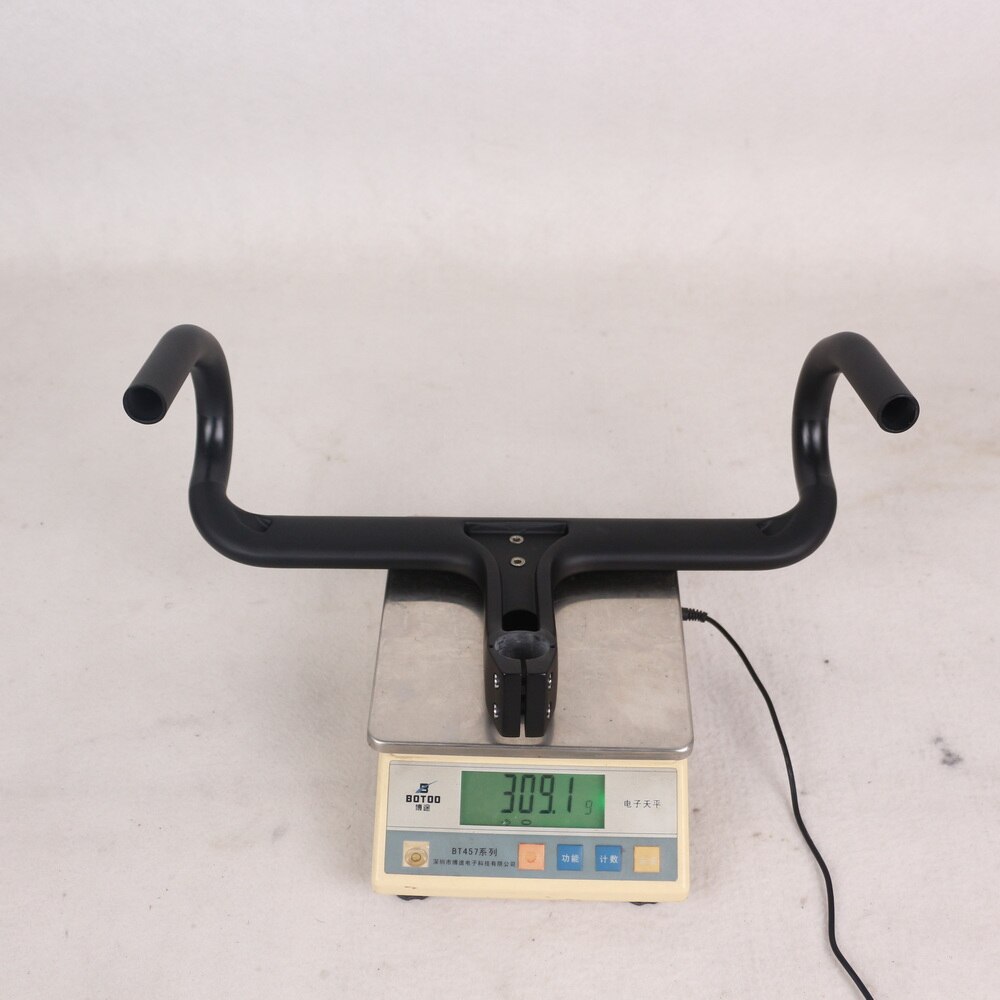

handlebar weight： 309g+/-20g
Disc Rotor: Front and Rear 140mm , if 160mm need add adaptor
Headset: 1-1/2"-1 1/2" (Bearing 45°)
Integrated Seat Tube: 27.2mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type: Flat Mount Disc Brake
Chain Stay: 435mm
Fork Rake: 50mm
Cable Type: Internal cable
Max Tire: 700C*45C /650B*47mm /27.5er*2.1''
Warranty: 2 years

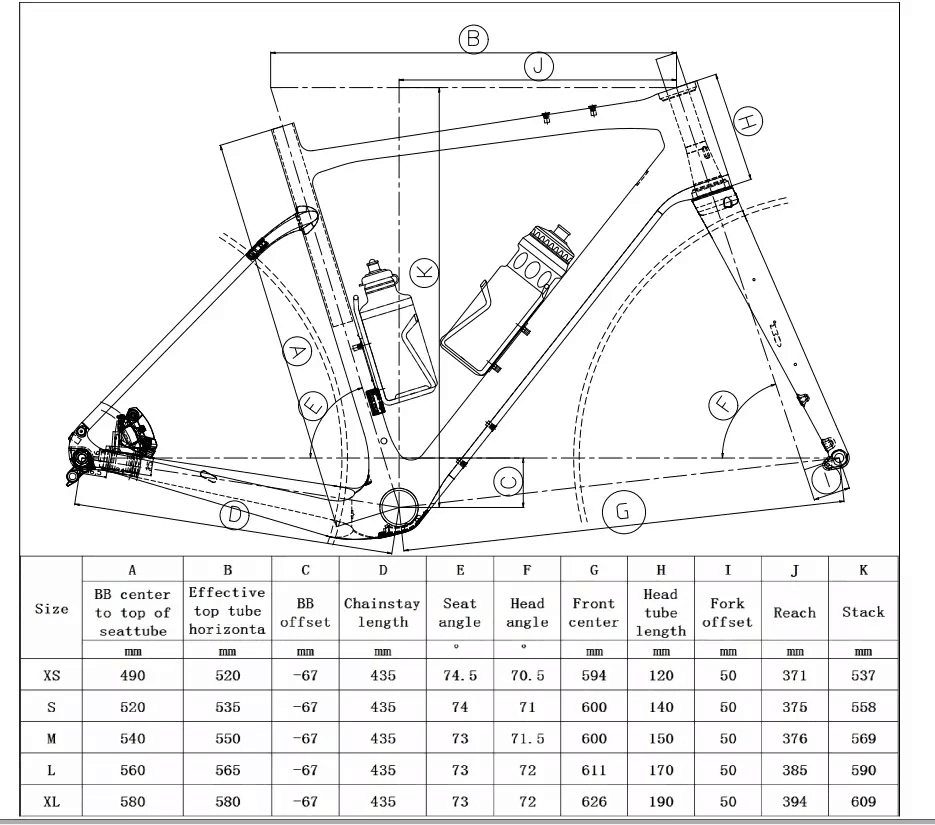

Geometry

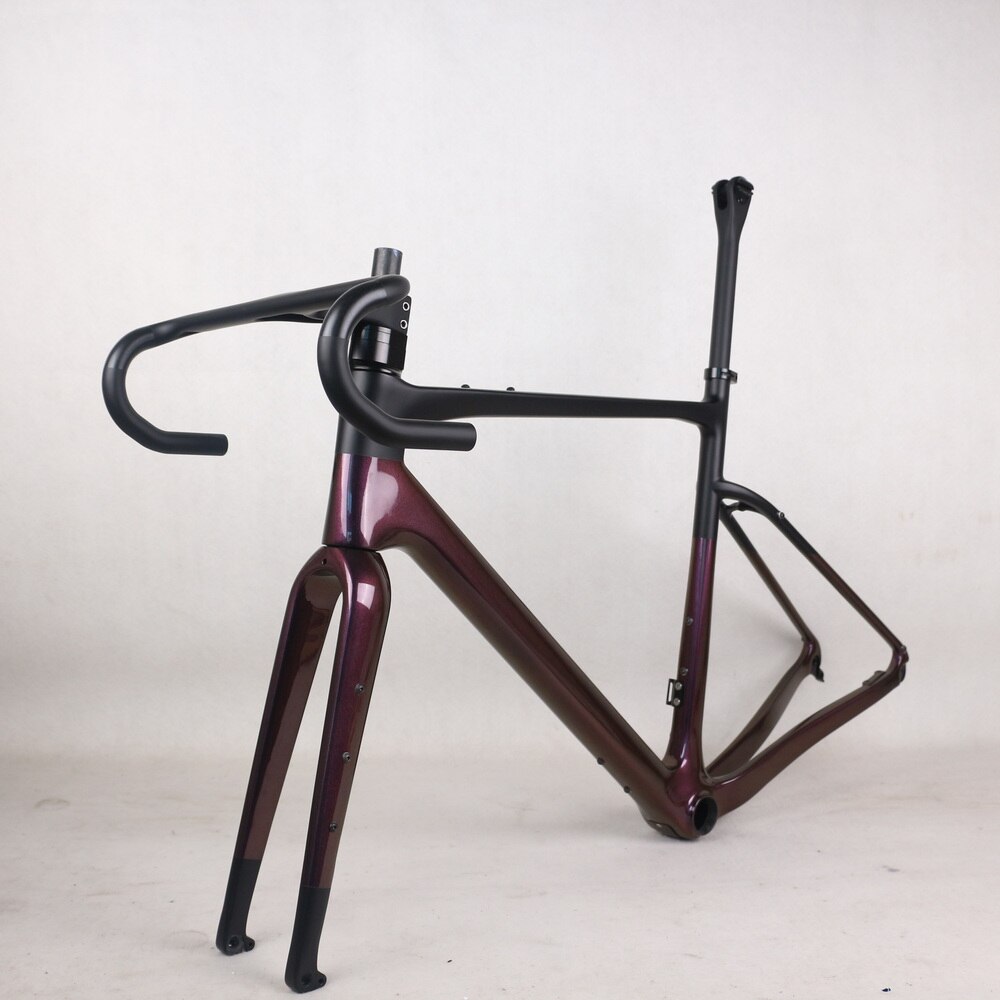

Detail images
Below picture frame size is 49cm
Color number chameleon 1005+black
matte
Package
FAQ
- Surface Processing Mode:
- Matte
- is_customized:
- Yes
- Model Number:
- GR044
- Use:
- cyclocross bicycles
- Weight:
- 1332g/+-40g (56cm)
- Foldable:
- No
- Material:
- Carbon
- Brand Name:
- SERAPH
- Origin:
- Mainland China
- Fork weight:
- 473g+/-20g
- seatpost:
- 224g+/-15g
- handlebar weight:
- 309g+/-20g
- BB:
- BB386
- Max Tire:
- 650B*47mm
- Tire:
- 700C*45C
- Thru-axle Groupset::
- Di2 and Mechanical Compatible
