Full Carbon Fiber Toray T1000 Disc Gravel Bike Frame GR044 Internal Cable BB386 Bottom Bracket Custom Paint

HB010 Road handlebar black matte in stock size
90*380mm/90*400mm/90*420mm/90*440mm
100*400mm/100*420mm
110*400mm/110*420mm/110*440mm
120*400mm/120*420mm/120*440mm

Product information

Model GR044 (142*12mm axle)
Size:  49/52/54/56/58cm
Bottom Bracket: BB386
Material: Full carbon Toray T1000
Package contains:  Frame+Fork+ Seatpost+Handlebar+ Spacer+headset

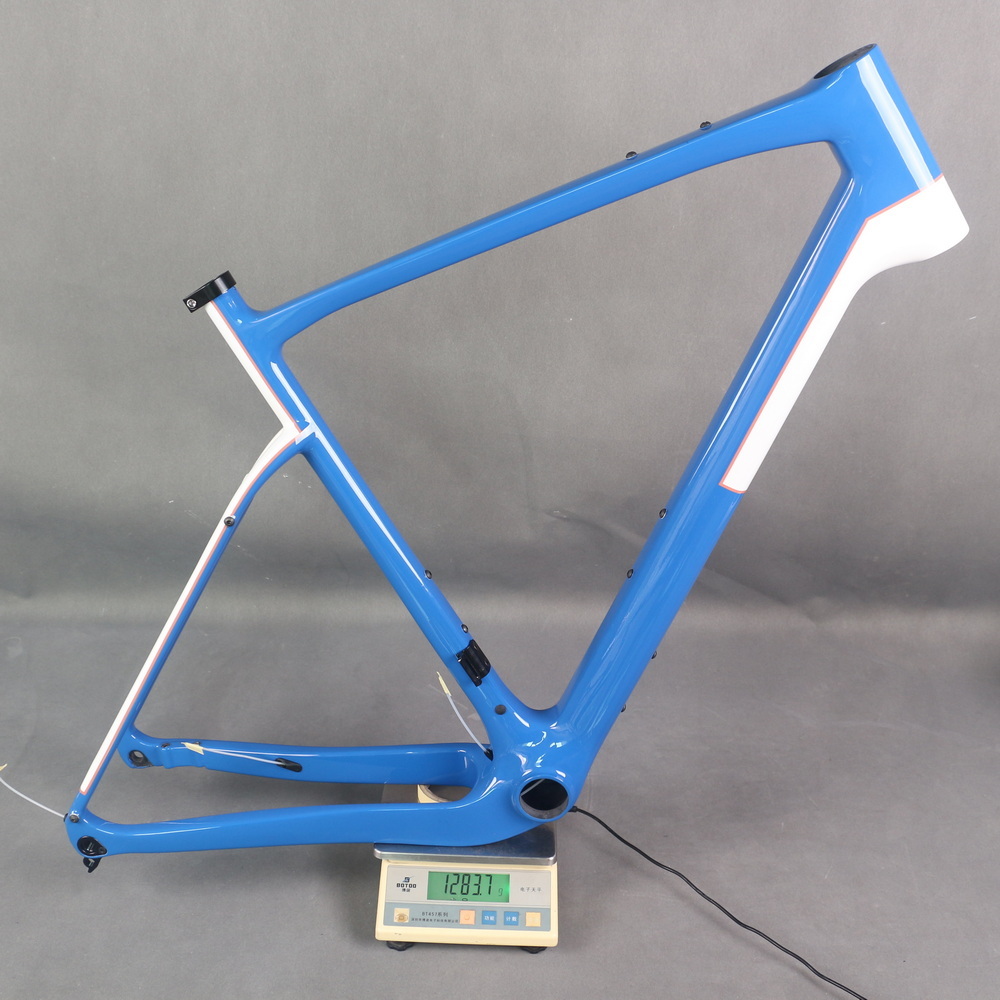

Frame weight： 1283g/+-40g (56cm)
Fork weight： 510g+/-20g
Setback seatpost 151g+/-15g(setback seatpost)

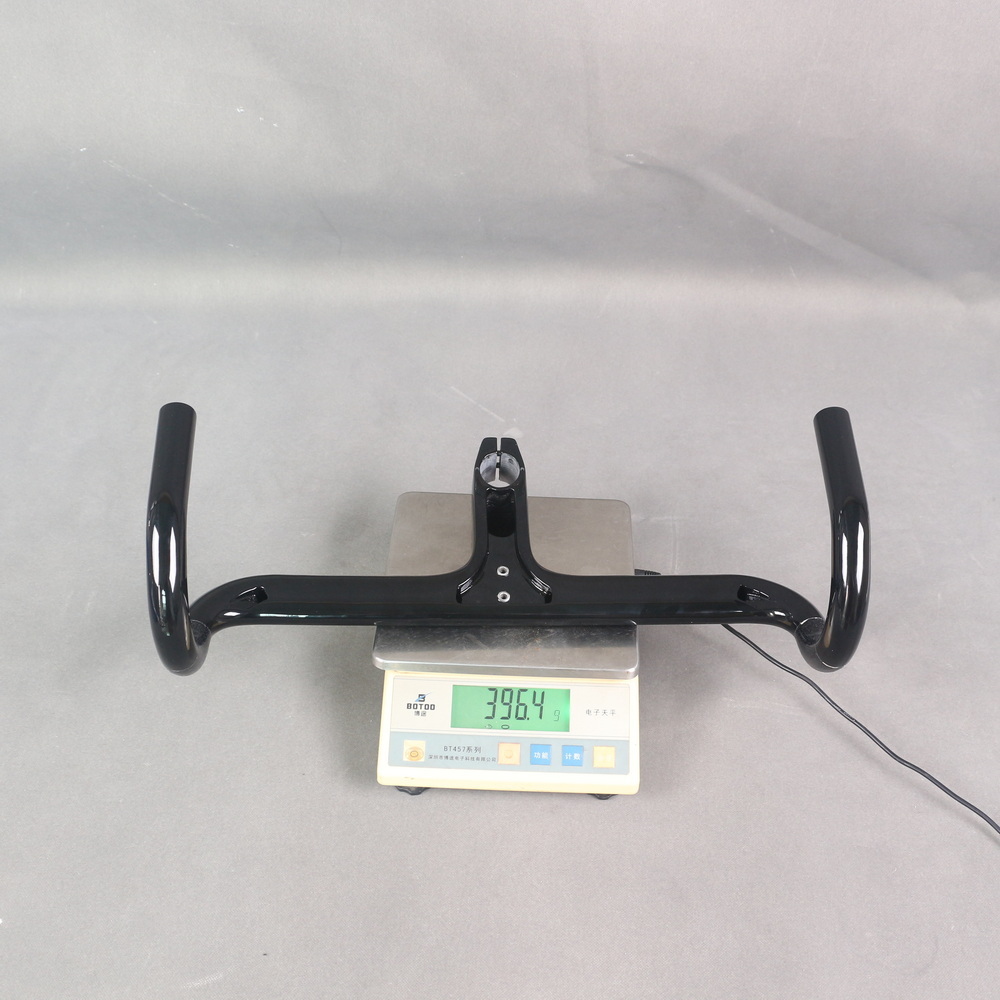

HB010 handlebar： 396g+/-20g
Disc Rotor: Front and Rear 140mm , if 160mm need add adaptor
Headset: 1-1/2"-1 1/2" (Bearing 45°)
Integrated Seat Tube: 27.2mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type:  Flat Mount Disc Brake
Chain Stay: 435mm
Fork Rake: 50mm
Single speed Crankset： 42T
Double speed Crankset： shimano 50-39T
Cable Type: Internal cable
Max Tire: 700C*45C /650B*47mm /27.5&29er*2.1''
Warranty: 2 years

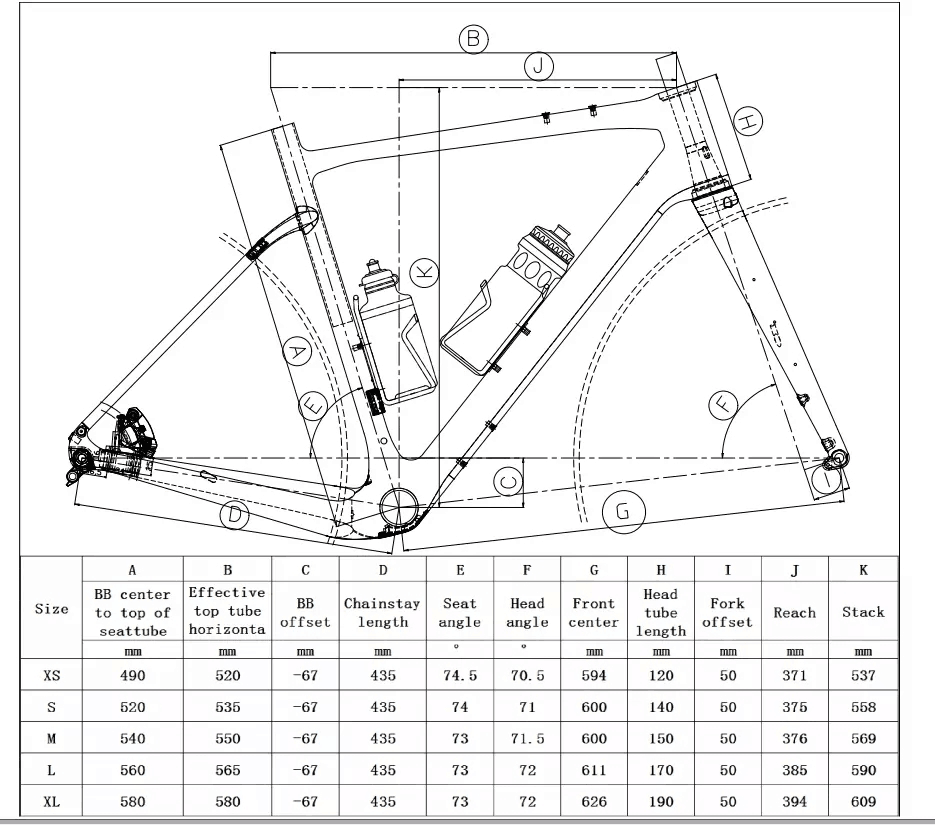

Geometry

Detail images

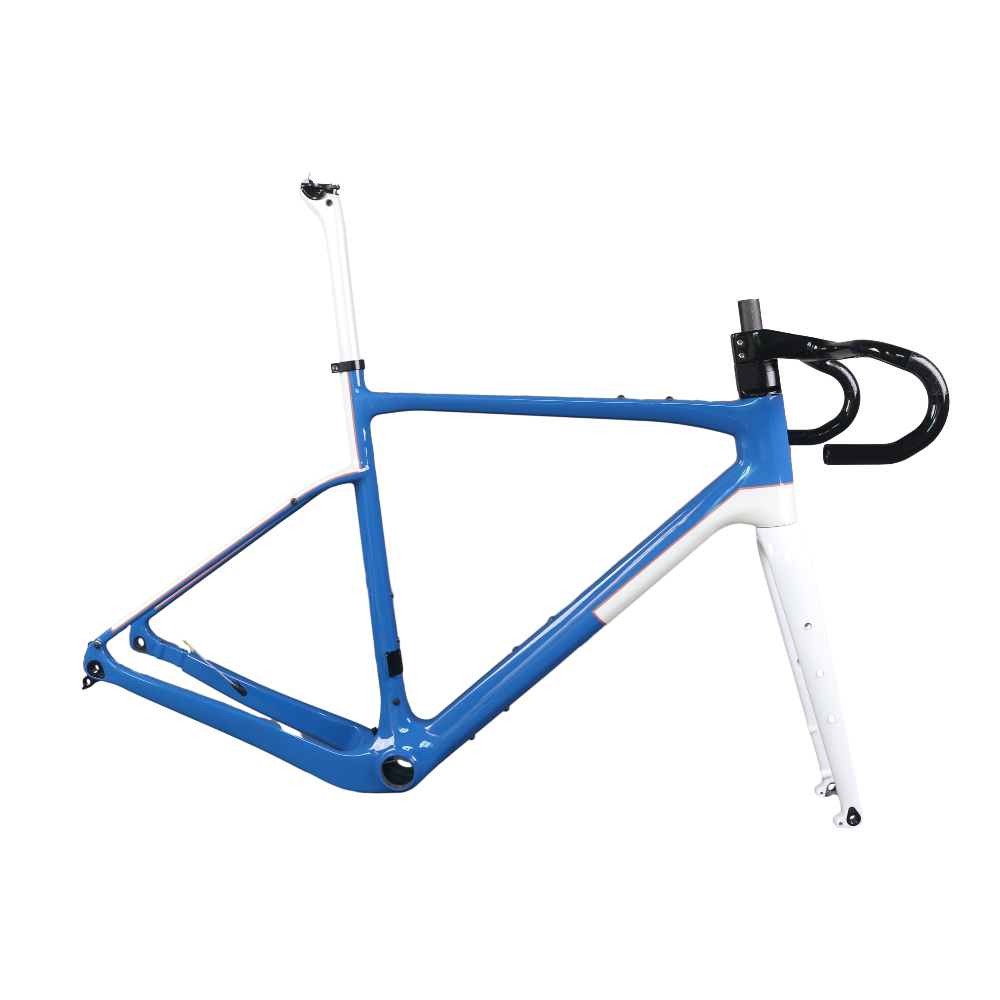

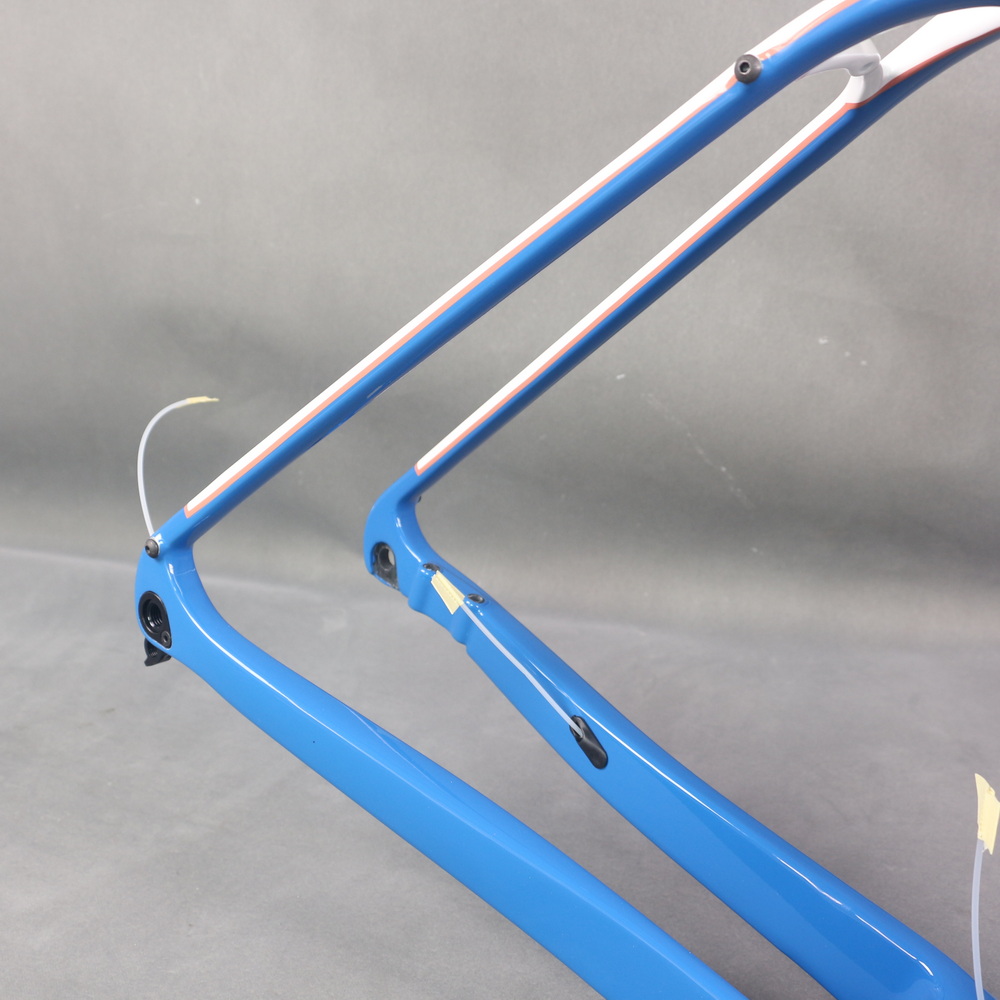

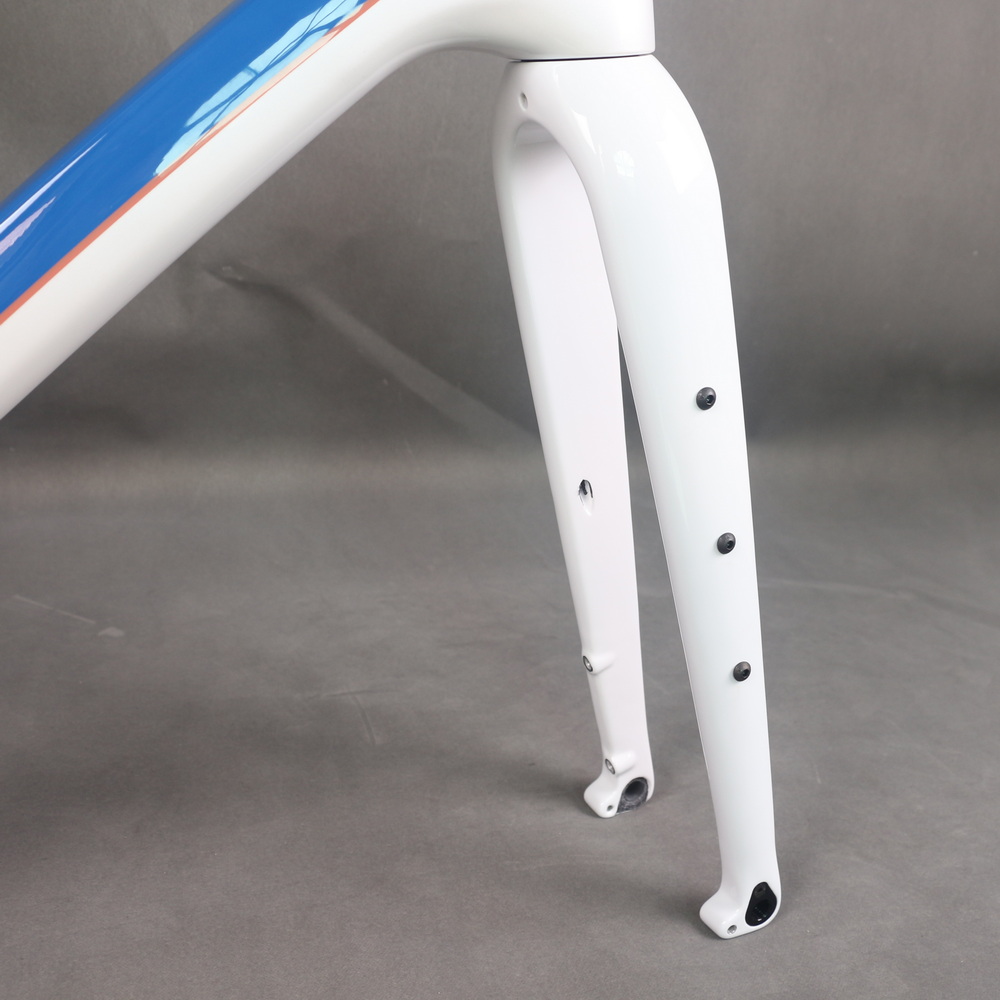

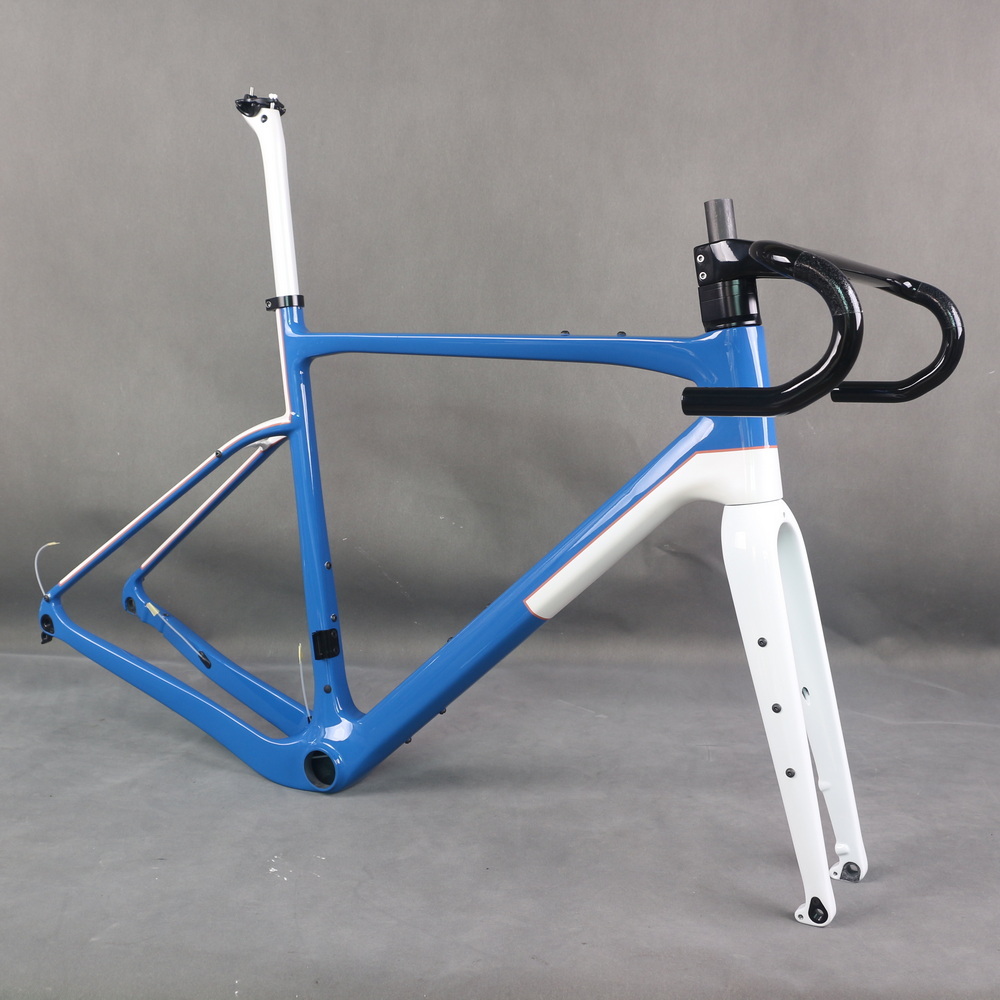

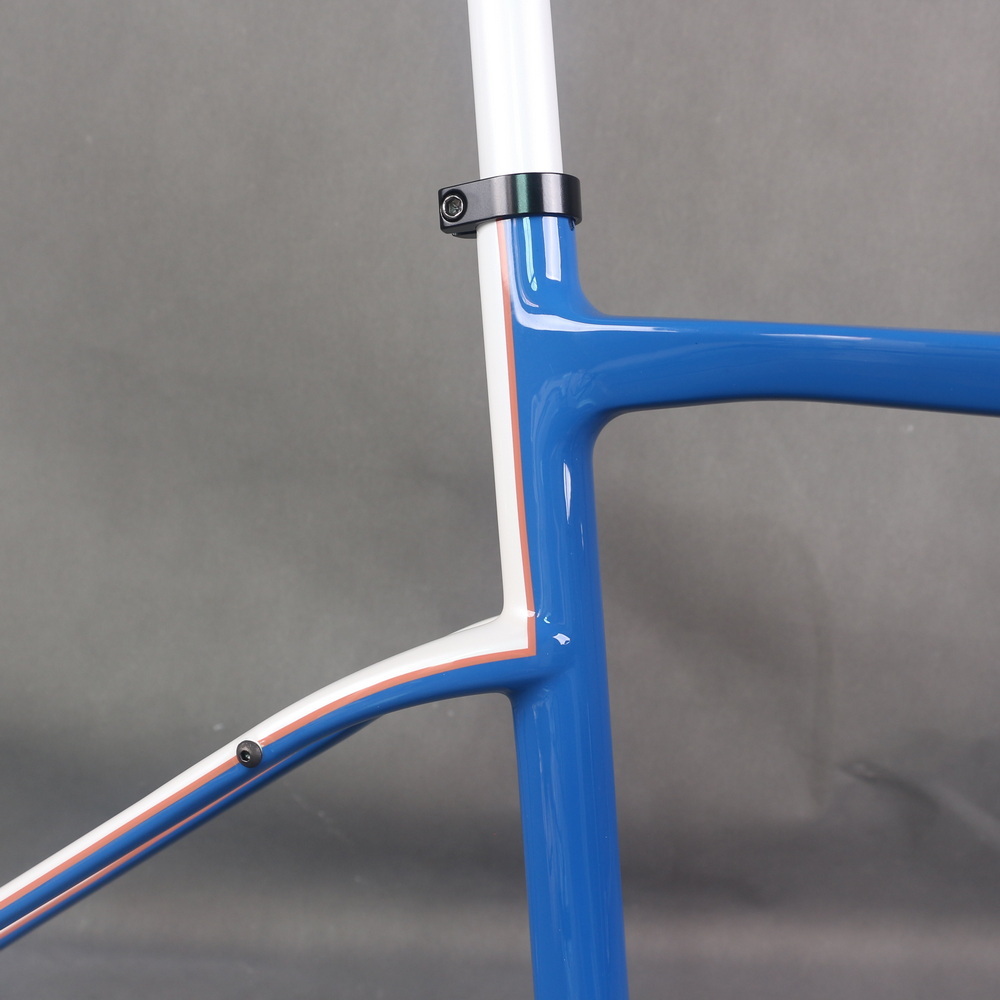

Below picture frame size is 56cm
Color number YS775-1+PT2144C+PT7522C

Package

FAQ
