SERAPH
Flat Mount Disc Brake Gravel Bike Frame GR047 T47 Thread Bottom Bracket External Cable Custom Paint Max Tire 47C
Note: The frame does not include the thru axle, if you need it, please buy it together
Product information
Frame Rear Space: GR047
Material: Hight Modulus Toray t1000 Carbon Fiber
Size: 40/43/46/49/53cm
Bottom Bracket: T47 thread
Seatpost： zero/setback seatpost
Headset: 1 -1/2 "above and 1 -1/2" below
Seatpost size： 27.2mm seatpost
Weave: UD

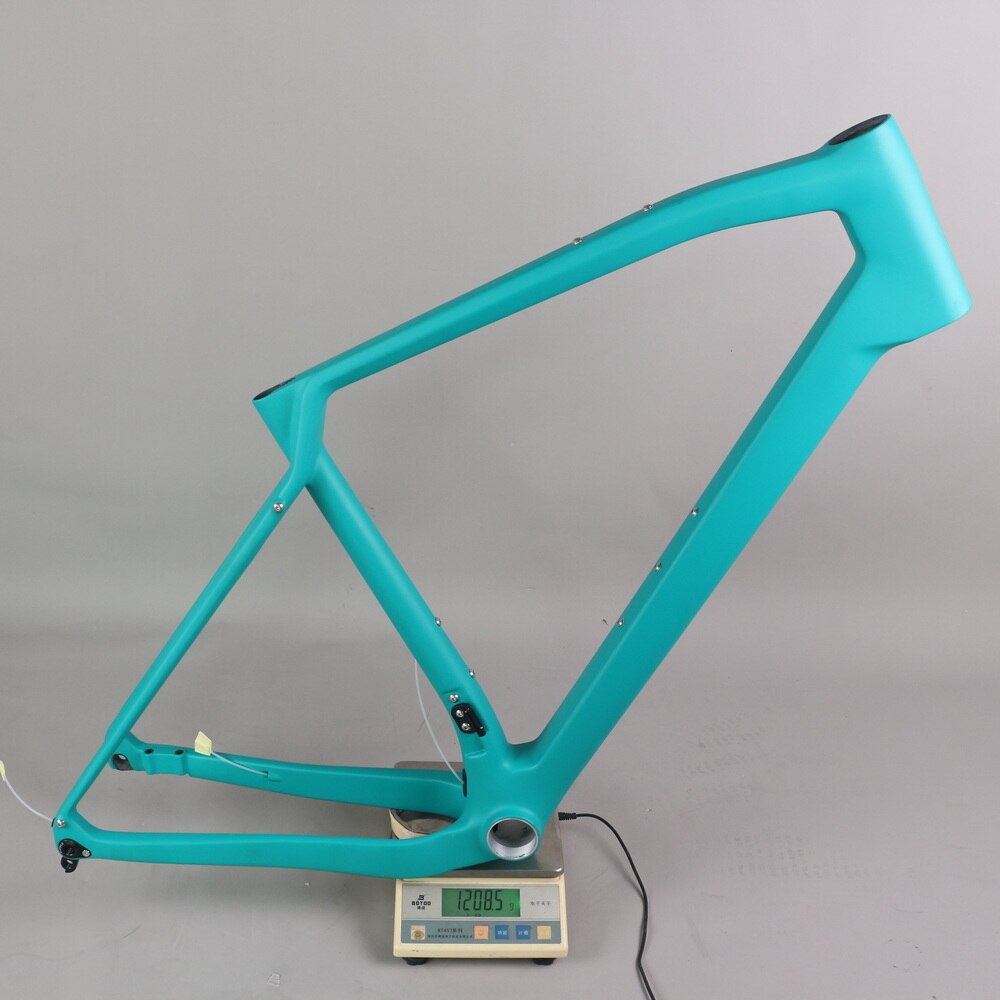

Frame weight： 1208/+-40g (49cm)
FO045 Fork weight： 417+/-20g

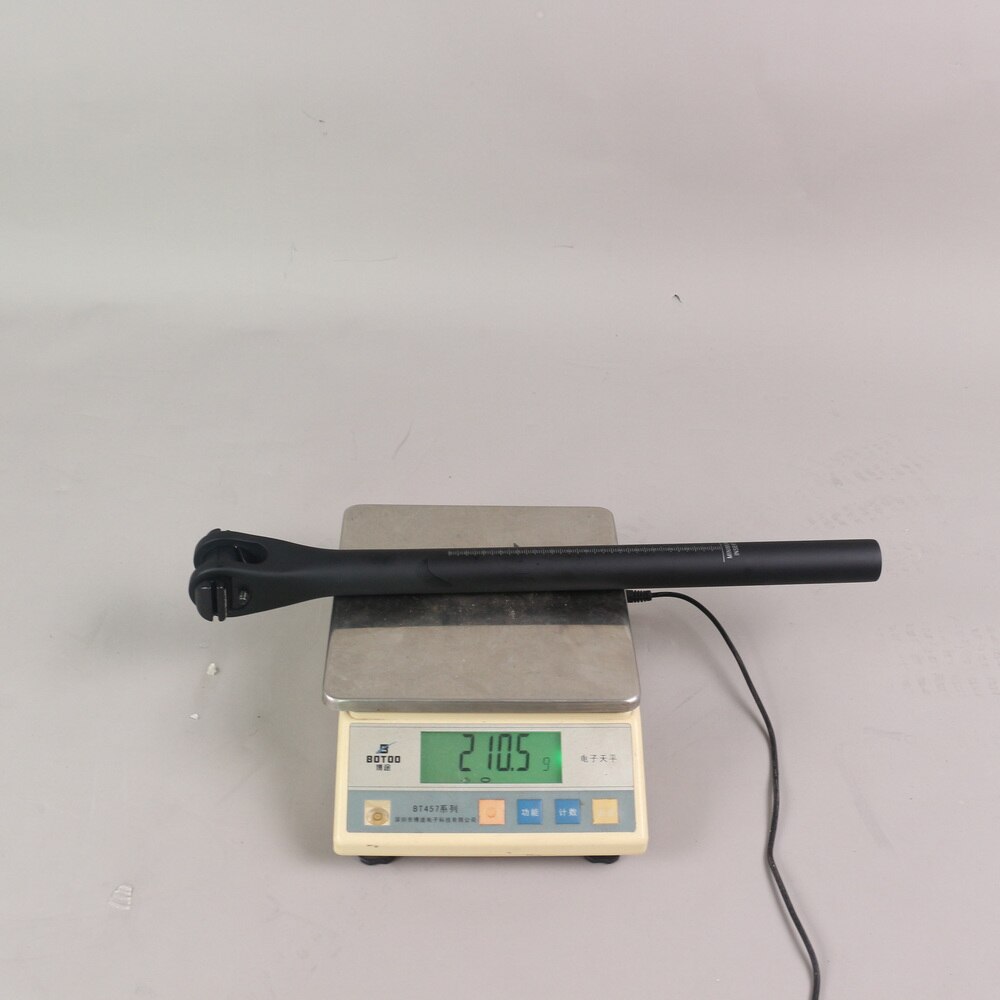

seat post weight： 210/+-15g
Disc Rotor: Front and Rear 140mm (if 160mm need add adapter )
Stem Size: 70/80/90/100/110/120mm
Handlebar size: 430/450/470/490mm
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Cable Type: Internal cable
Max Tire: 700C*47C
Single speed Crankset： 42T
Double speed Crankset： shimano 50-36T
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type: Flat Mount Disc Brake
Warranty: 2 years
Geometry

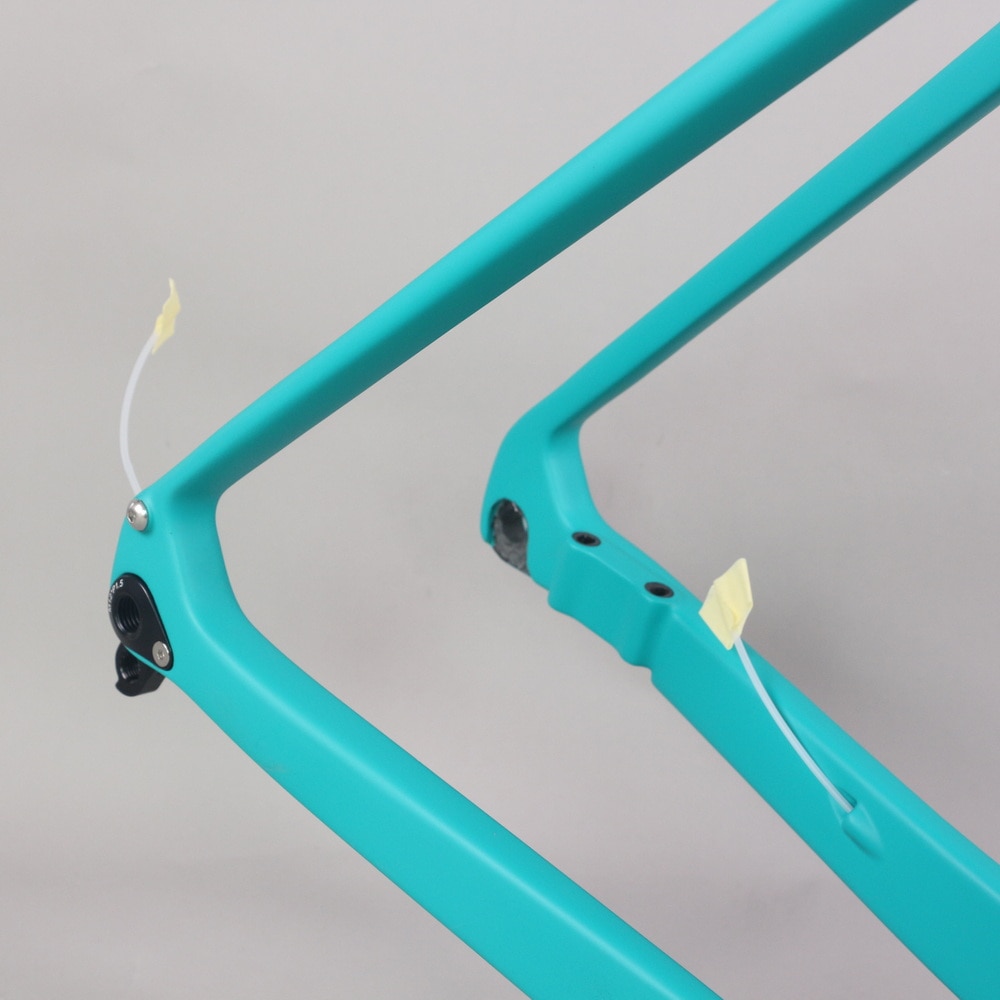

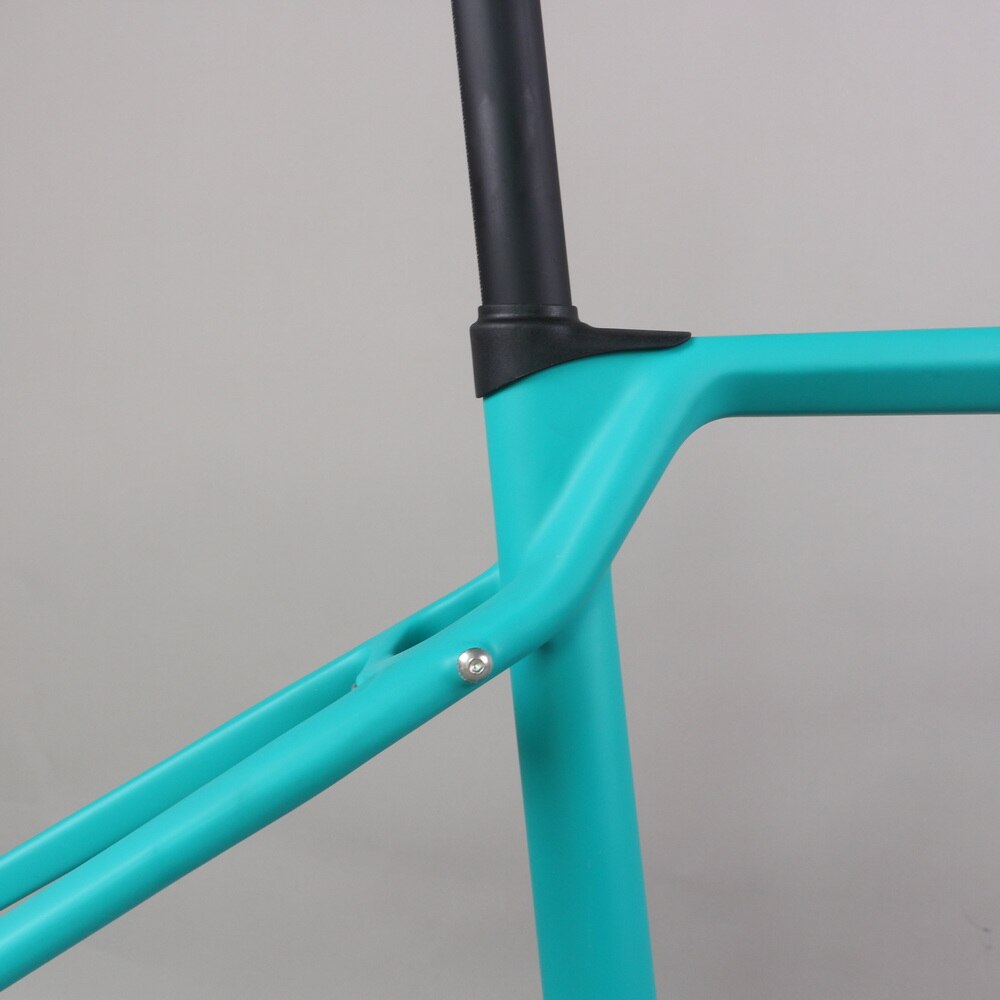

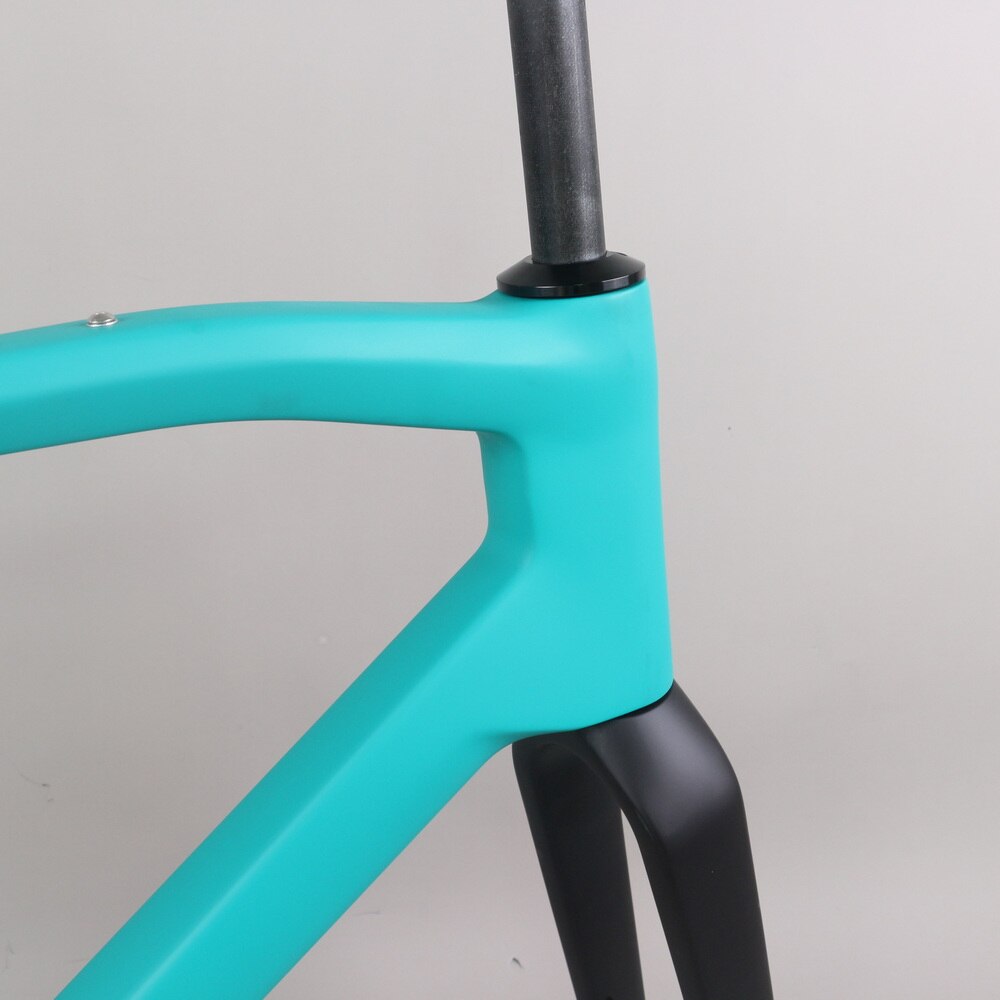

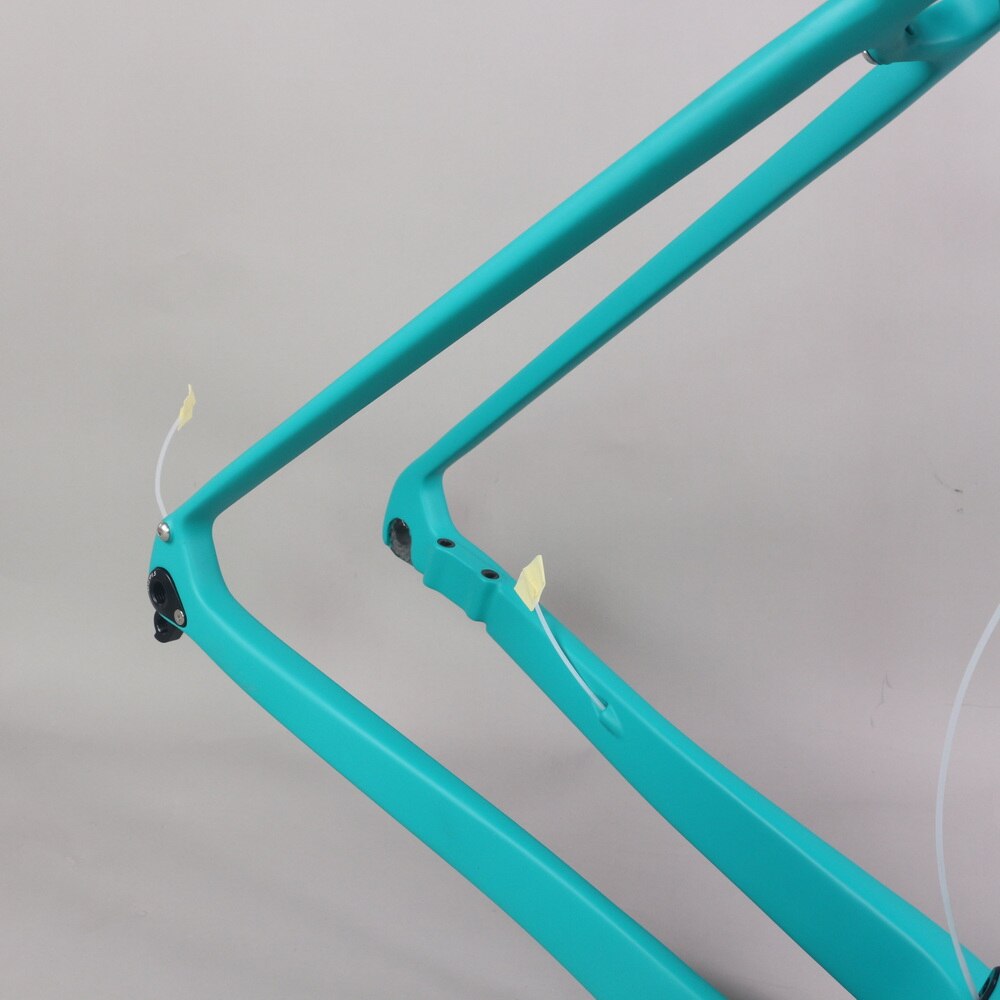

Detail images
below picture frame size is 49cm
Color number PT3272C+YS728
Package

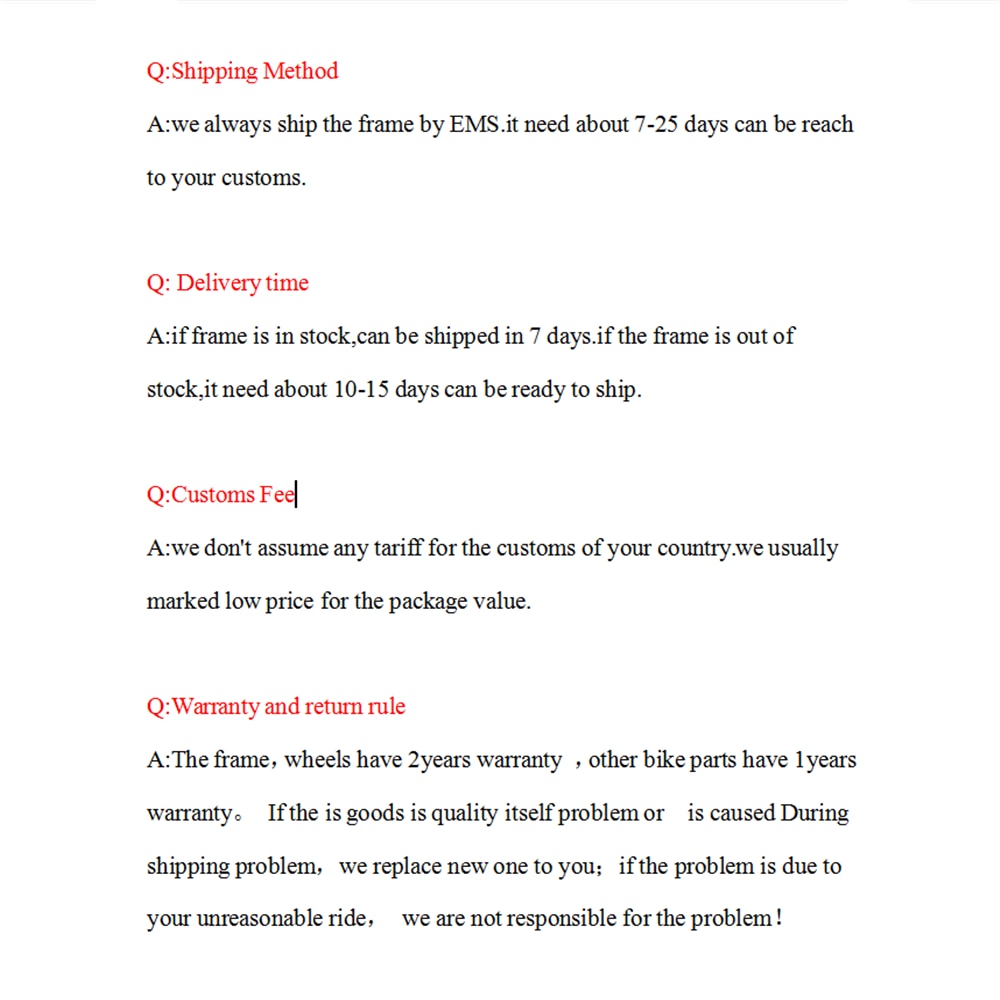

FAQ
- Surface Processing Mode:
- Matte
- is_customized:
- Yes
- Model Number:
- GR047
- Use:
- cyclocross bicycles
- Weight:
- 1208/+-40g (49cm)
- Foldable:
- No
- Material:
- Carbon
- Brand Name:
- SERAPH
- Origin:
- Mainland China
- BB:
- T47 thread
- Max Tire:
- 700C*47C
- Material:
- carbon fiber T1000
- Thru-axle Groupset::
- Di2 and Mechanical Compatible
