SERAPH
Flat Mount Carbon Fiber T1000 Disc Brake Gravel Bike Frame GR047 T47 Thread Max Tire 700*47C
Note: the price does not include seatpost and handlebar+headset+thru axle, just frame+fork
Product information
Frame Model: Full hidden cable gravel
Frame Rear Space: GR047
Material: Hight Modulus Toray t1000 Carbon Fiber
Size: 40/43/46/49/53cm

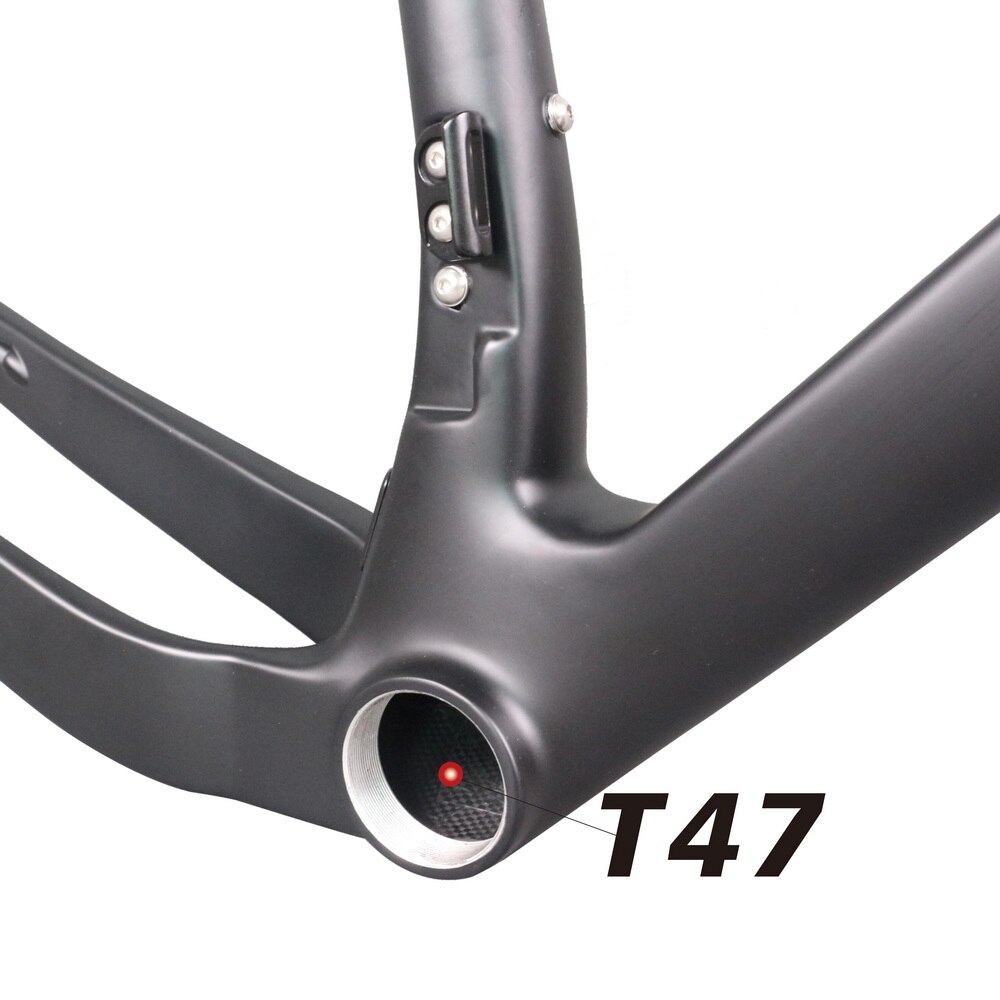

Bottom Bracket: T47 thread
Seatpost： zero/setback seatpost
Headset: 1 -1/2 "above and 1 -1/2" below
Seatpost size： 27.2mm seatpost
Weave: UD

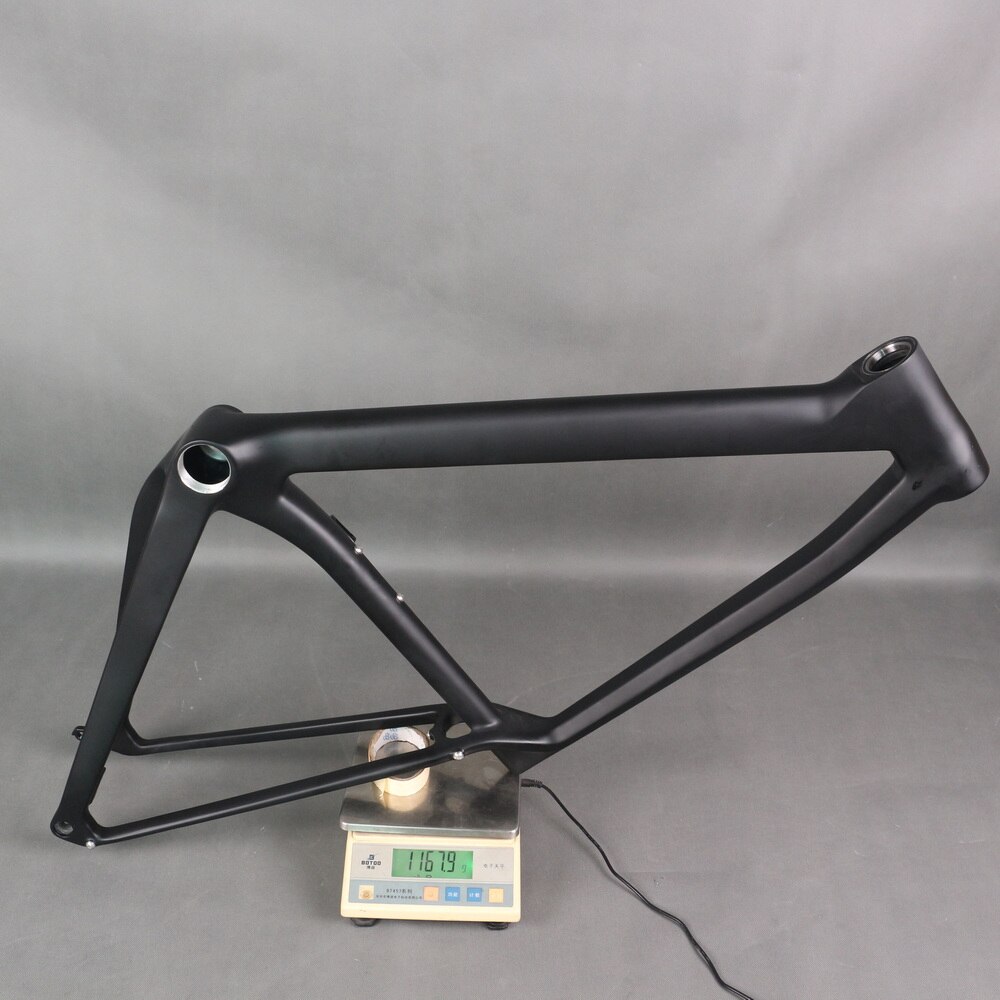

Frame weight： 1167/+-40g (46cm)
Fork weight： 438+/-20g

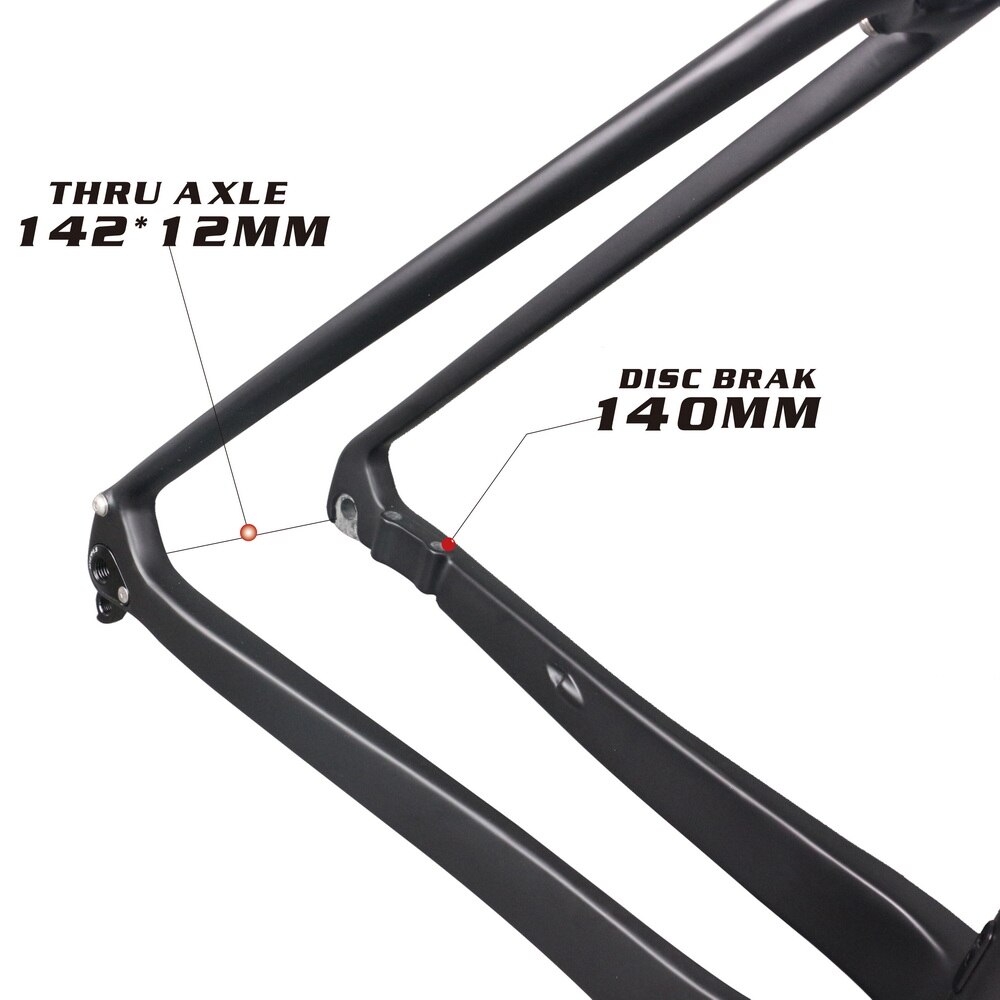

Disc Rotor: Front and Rear 140mm (if 160mm need add adapter )
Frame Rear Space: 142*12mm
Thru-axle Fork spacer : 100*12mm
Cable Type: Internal cable
Max Tire: 700C*47C
Single speed Crankset： 42T
Double speed Crankset： shimano 50-36T
Thru-axle Groupset: Di2 and Mechanical Compatible
Brake Type: Flat Mount Disc Brake
Warranty: 2 years
Geometry
Detail images

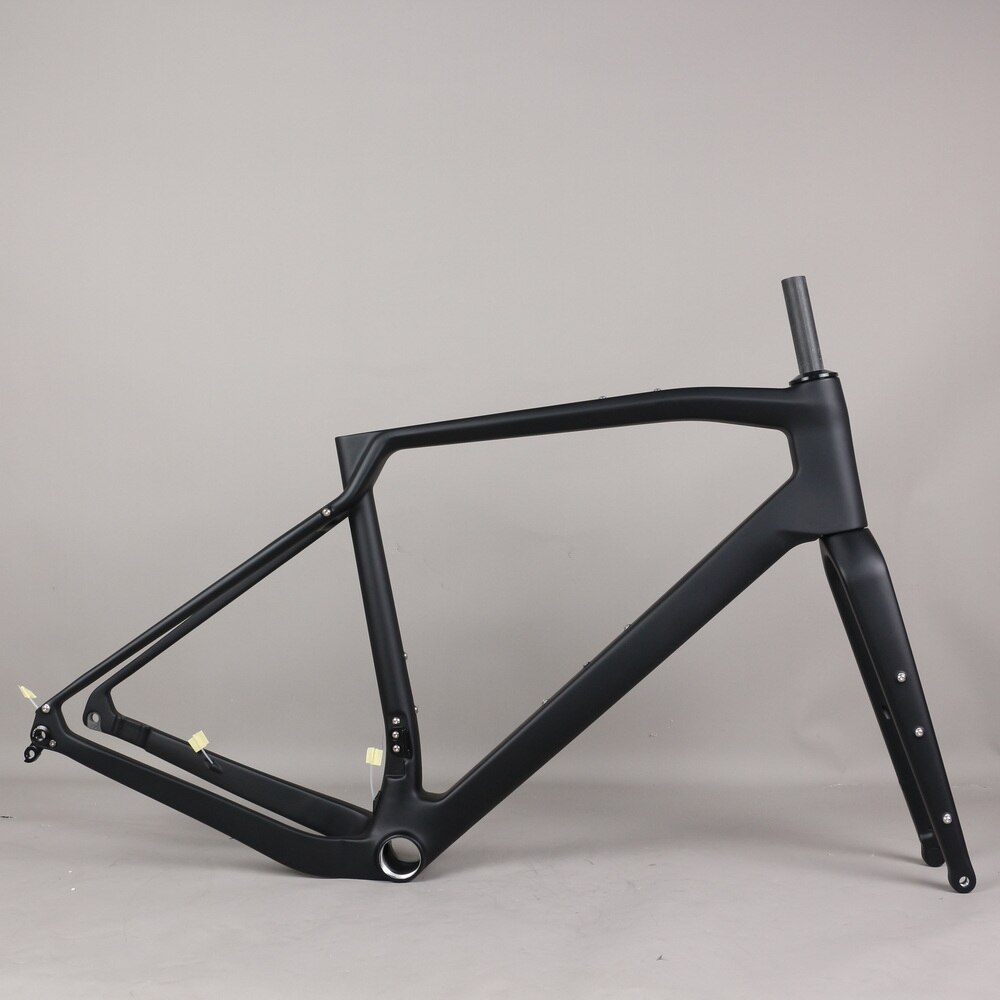

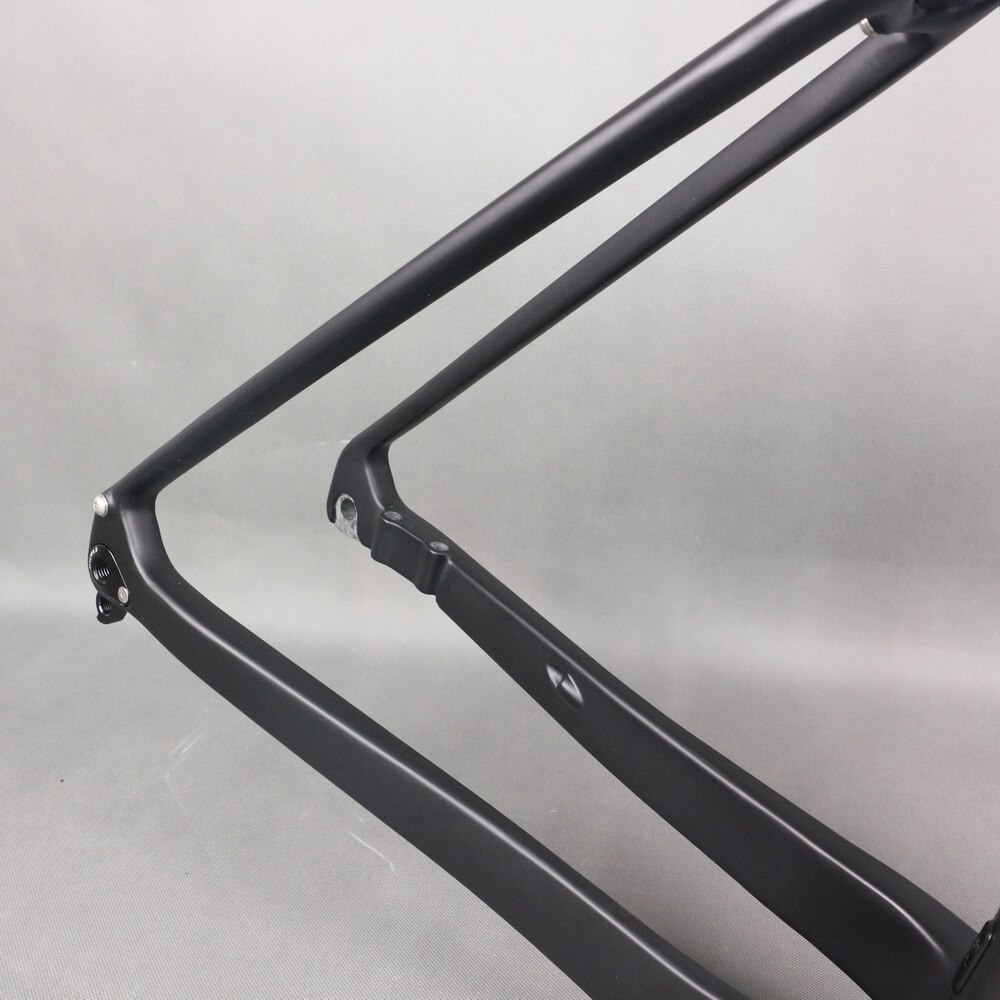

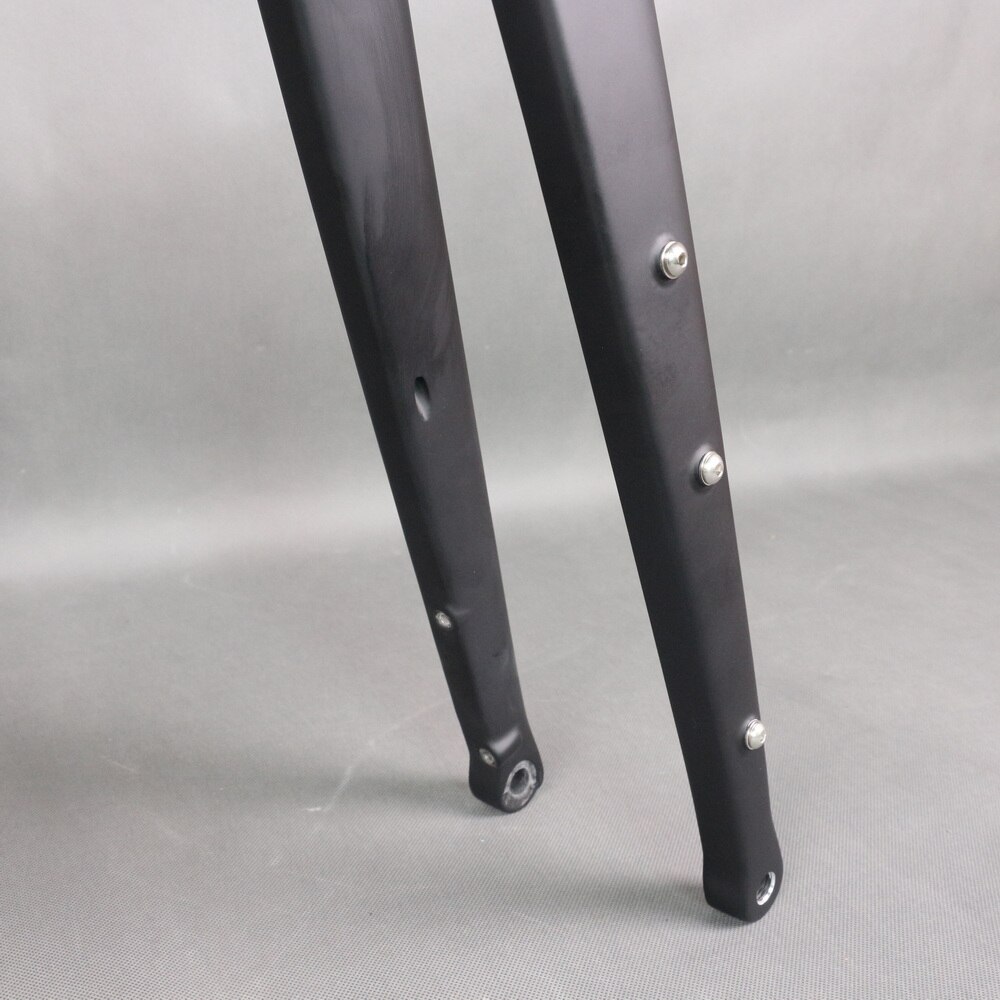

Below picture frame size is 46cm
Package

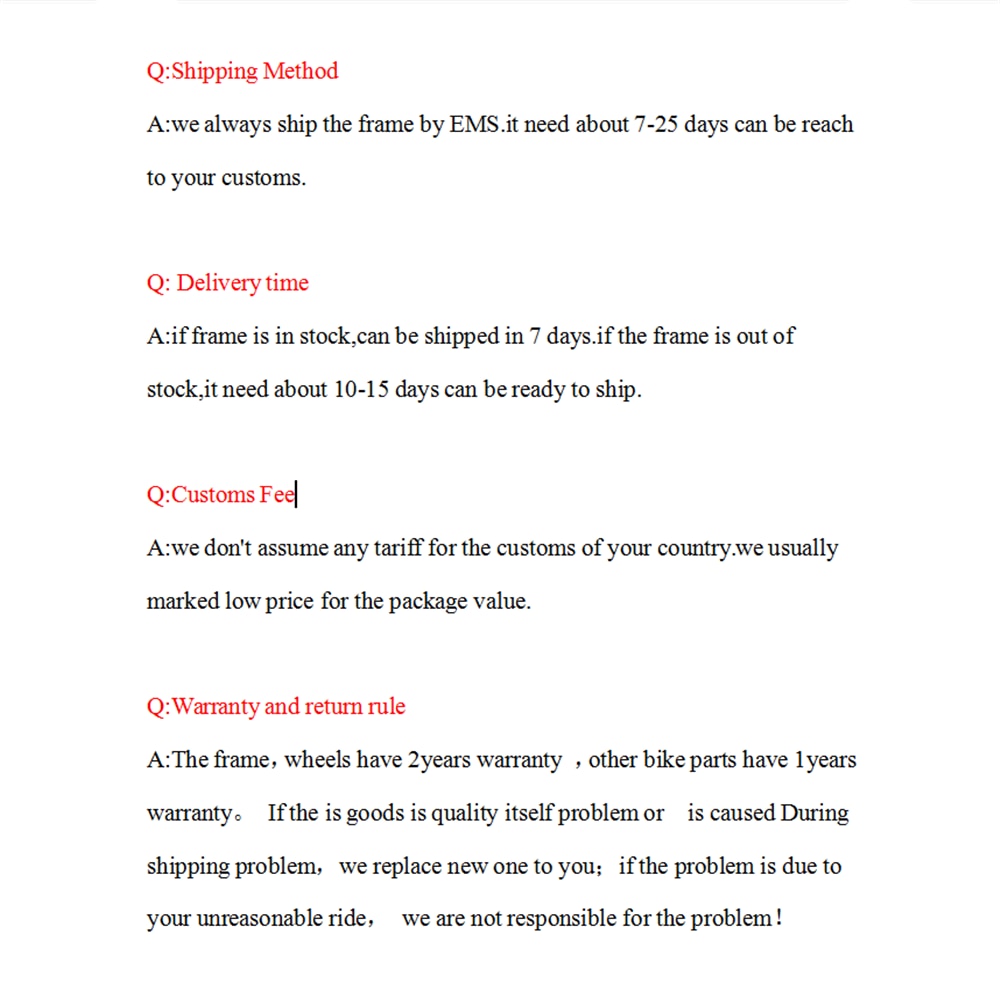

FAQ
- Surface Processing Mode:
- Matte
- is_customized:
- Yes
- Model Number:
- GR047
- Use:
- cyclocross bicycles
- Weight:
- 1167g/+-40g (46cm)
- Foldable:
- No
- Material:
- Carbon
- Brand Name:
- SERAPH
- Origin:
- Mainland China
- BB:
- T47 thread
- Max Tire:
- 700C*47C
- Material:
- carbon fiber T1000
- Thru-axle Groupset::
- Di2 and Mechanical Compatible
- Cable Type:
- Internal cable
