External Cable Disc Brake Gravel Bike Frame GR029 BSA Bottom Bracket Max Tire 700x42C Custom Paint

The price does not include thru axle and headst and seatpost clamp, if you need, please buy

Product information

Item: GR029
Include frame+fork
Material: full carbon T700
Frame size: 49cm/52cm/54cm/56cm/58cm
Headset： 1-1/8” to 1-1/2” Tapered Integrated

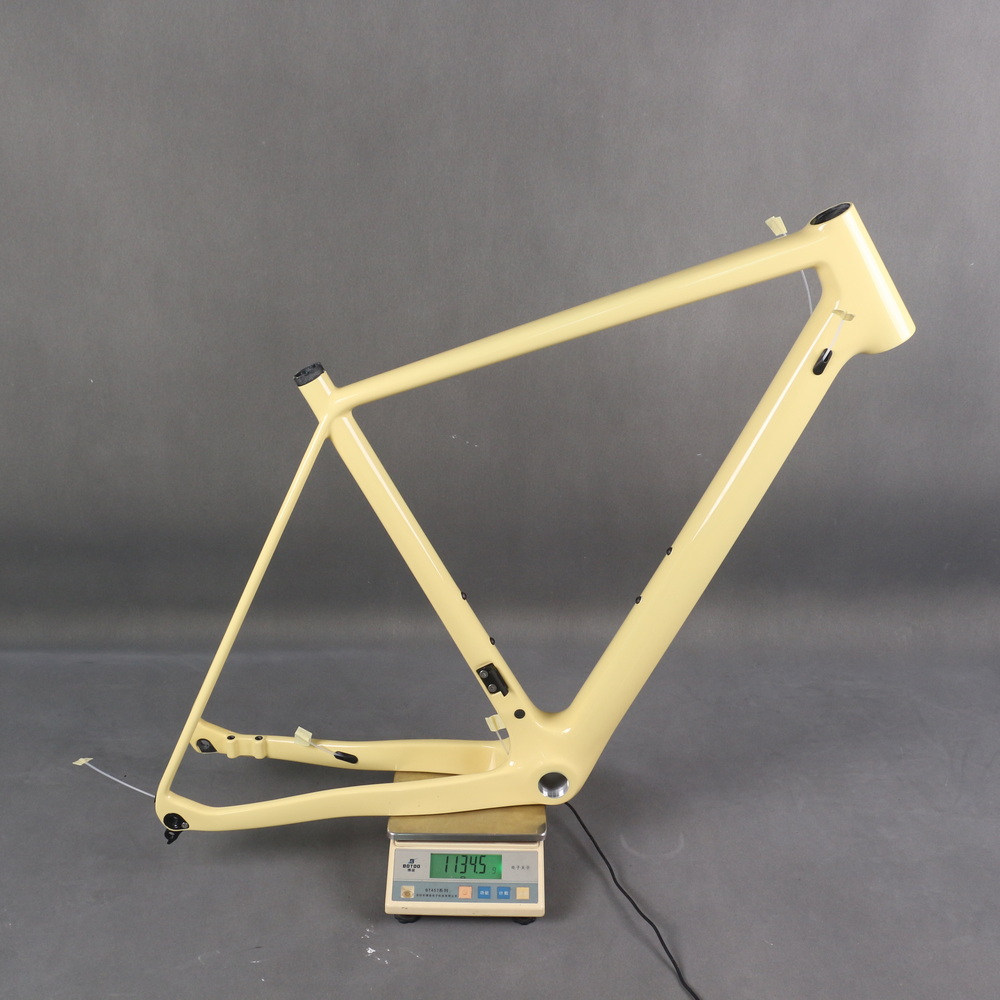

Frame Weight: Frame 1134/+-40g (54cm)
Fork weight Fork 429/+-10g
Seat post size: 27.2mm Diameter Seat post
TIRE: 700*42c
BB: BSA(68MM)
Frame Rear Space: 142*12mm
Fork spacer :   100*15mm/100*12mm
Group set: Di2 and Mechanical Compatible
Brake Type:  Flat Mount Gravel Disc Brake
Disc Rotor: 140mm（using the adapter can be max 160mm）
Chain Stay:  425mm
Max crank： 53-39T
Fork Rake: 45mm
Warranty:  2 years

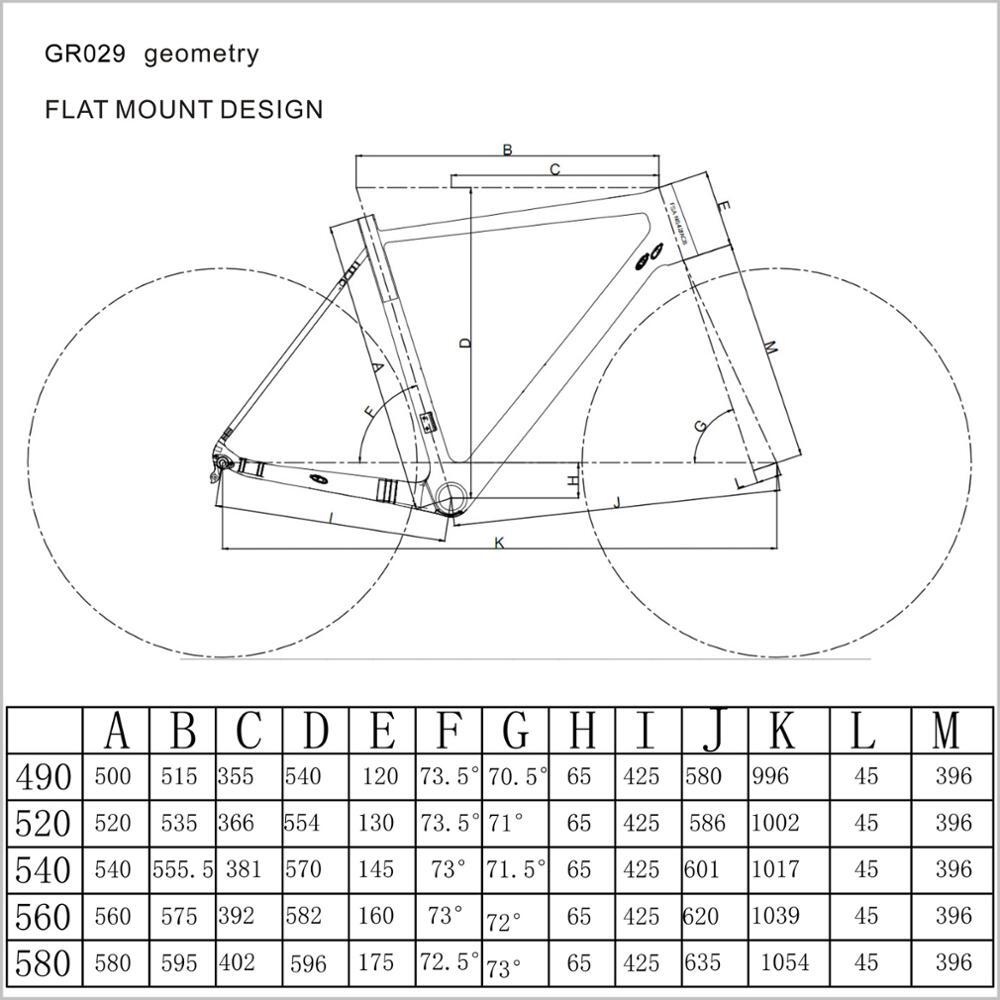

Geometry

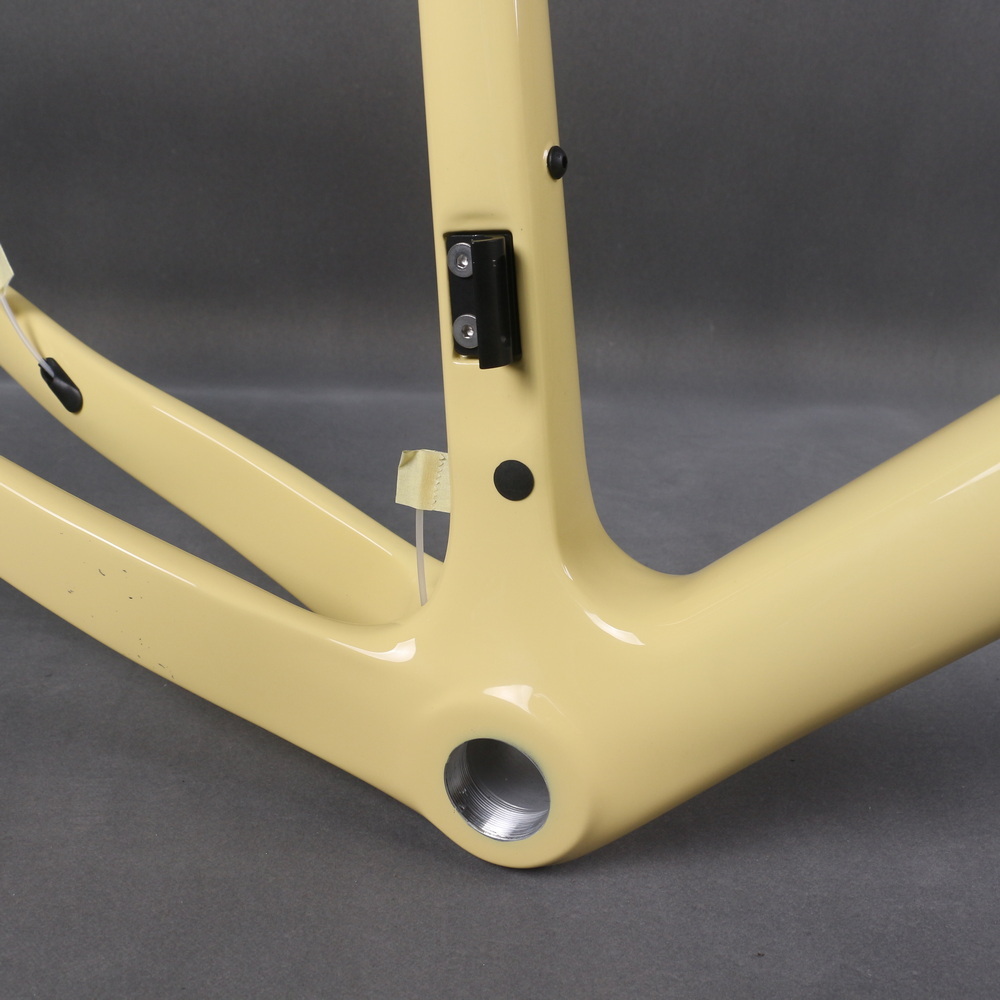

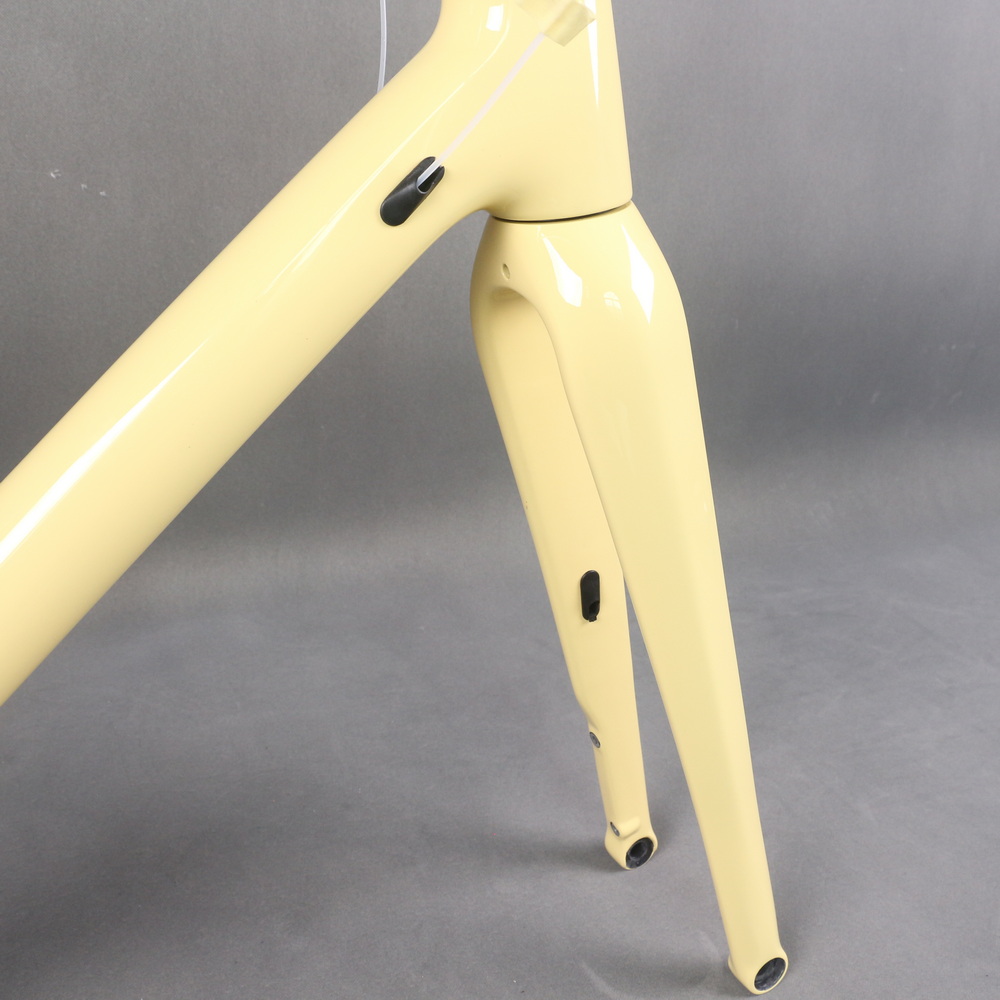

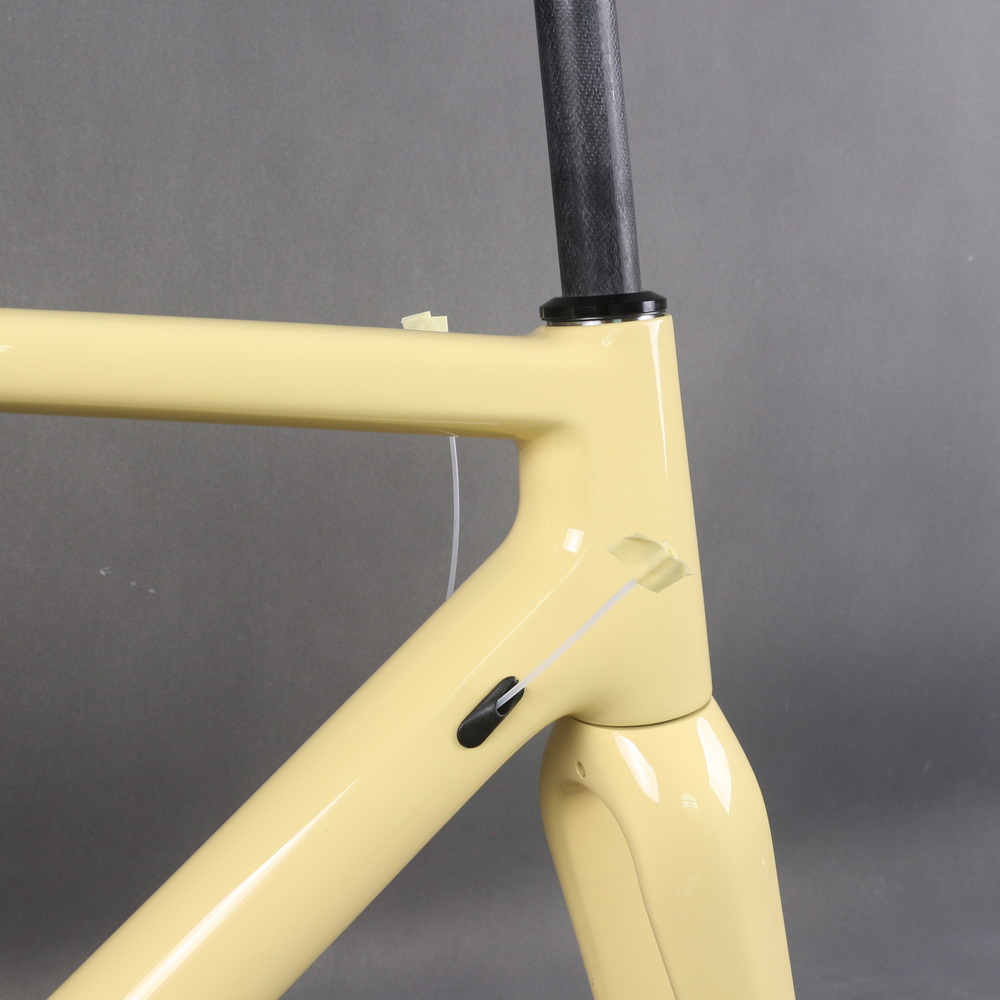

Detail images

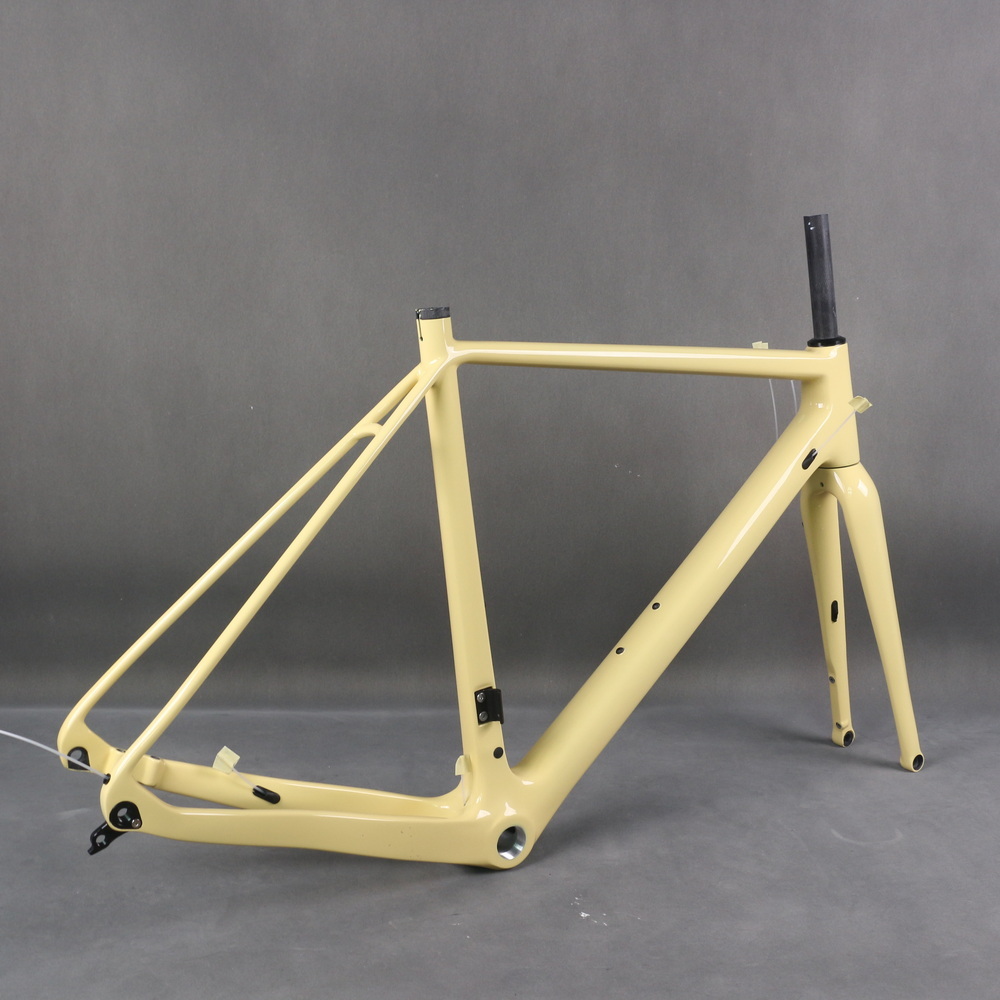

Below picture frame size is 54cm BSA
Color number PT7401C

Package

FAQ
