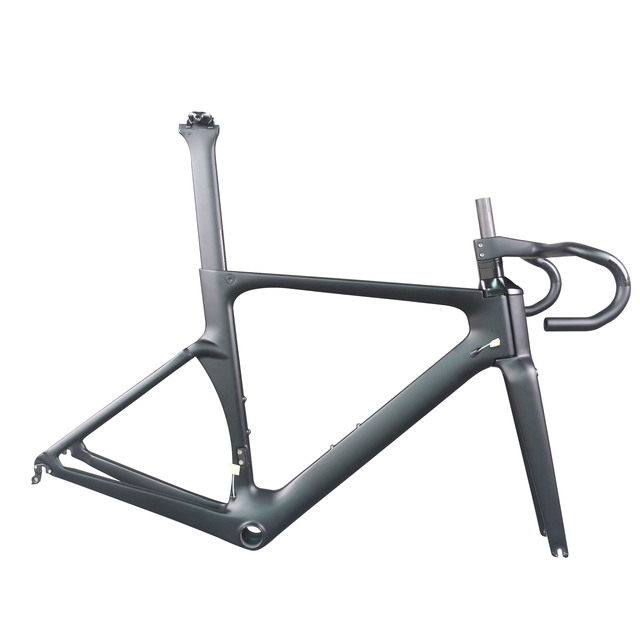

Double Straight Brake Aero Road Bike Frame FM005 BB86 Bottom Bracket Max Tire Toray T700 Carbon Fiber

Please select handlebar size when placing order

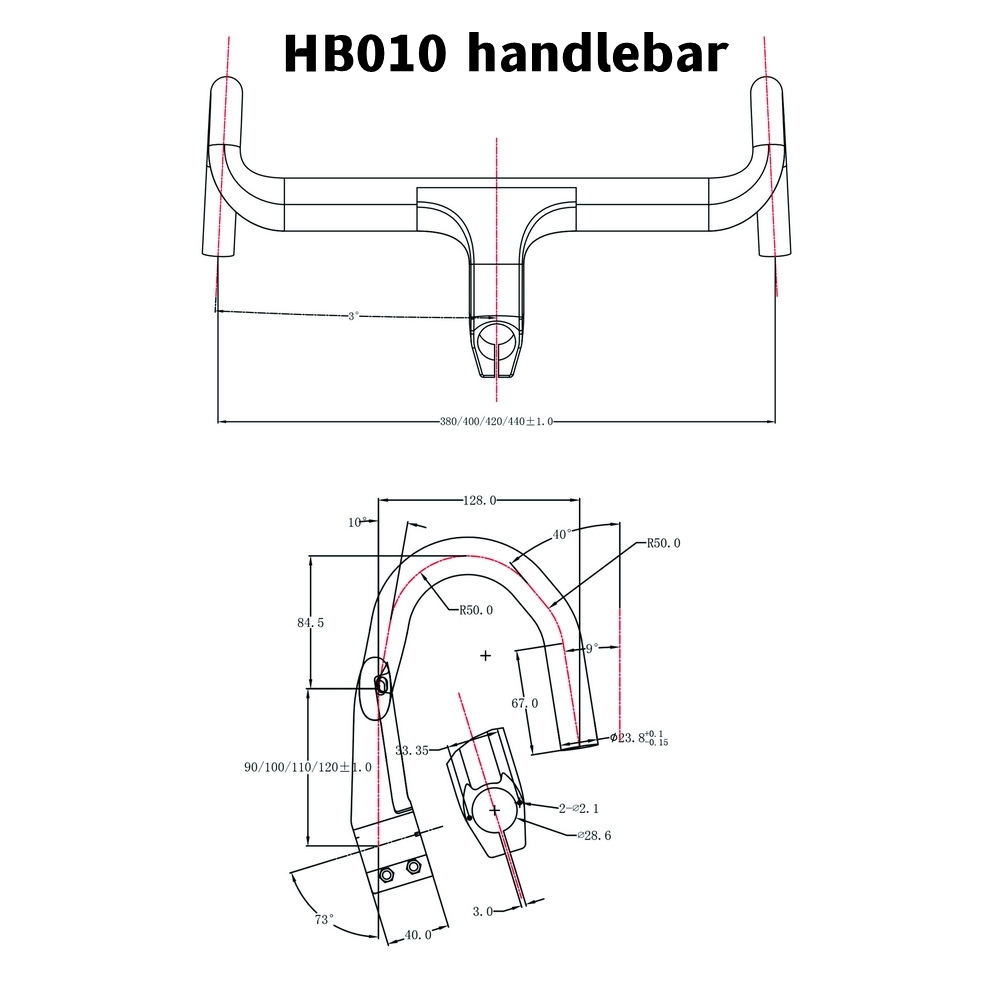

HB010 handlebar Available sizes:
90*380mm/90*420mm/90*440mm
100*400mm/100*420mm/100*440mm
110*400mm/110*420mm/
120*400mm/120*420mm/120*440mm

information

Type: FM005(frame+fork+seat post+handlebar+spacer+headset)
Size: 49cm/52cm/54cm/56cm/59cm
Fork: FK05  Integrated
Seat post: SP05  (L=380mm)
Handle bar:  HB010 Integrated Road handlebar
Stem size: 90mm /100mm /110mm /120mm
Handle Bar size: 400,420,440mm
Weave: UD
Material: High Modulus Toray T700 Carbon Fiber
Clamp type: Hidden clamp
Brake Type:  straight lock brake for SHI-MANO 9010/6810/5810

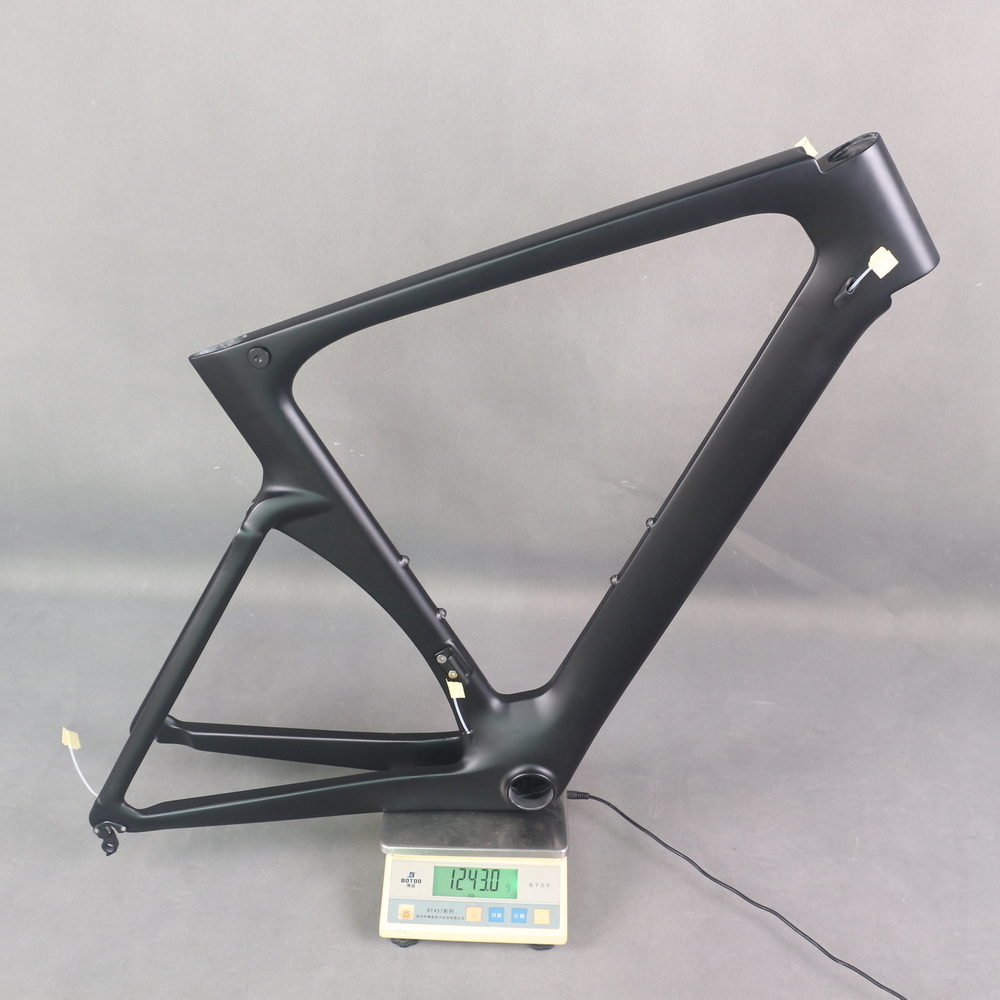

Frame weight: Frame 1243/+-50g(52cm),
Fork weight： Fork 541/+-40g,
Seatpost weight： Seatpost 244/+-20g

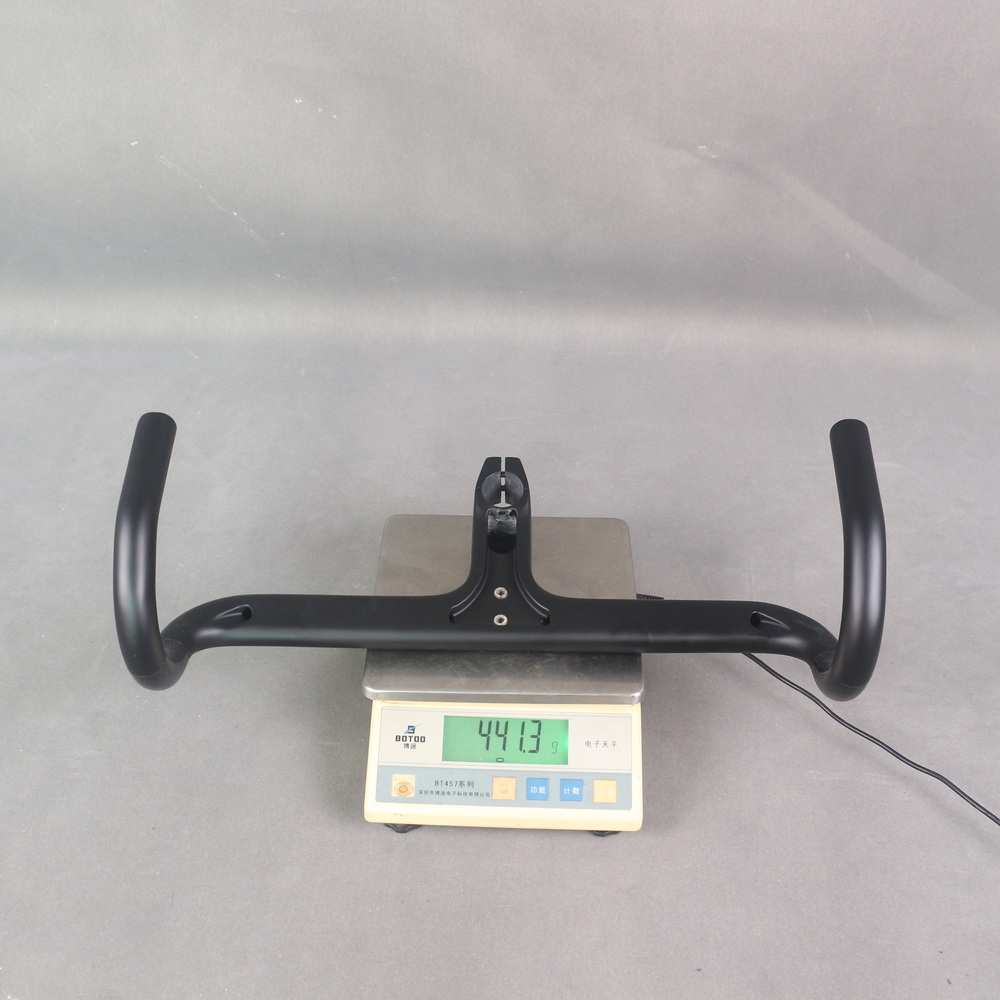

Handlebar weight handlebar 441/+-40g
quick release : Front 9*100mm QR, Rear 9*130mm QR
Headseat: 1-1/8”
Bottom Braket： BB86
Tire size: 700X25C
Tested: SGS
Warranty     2 years

Geometry

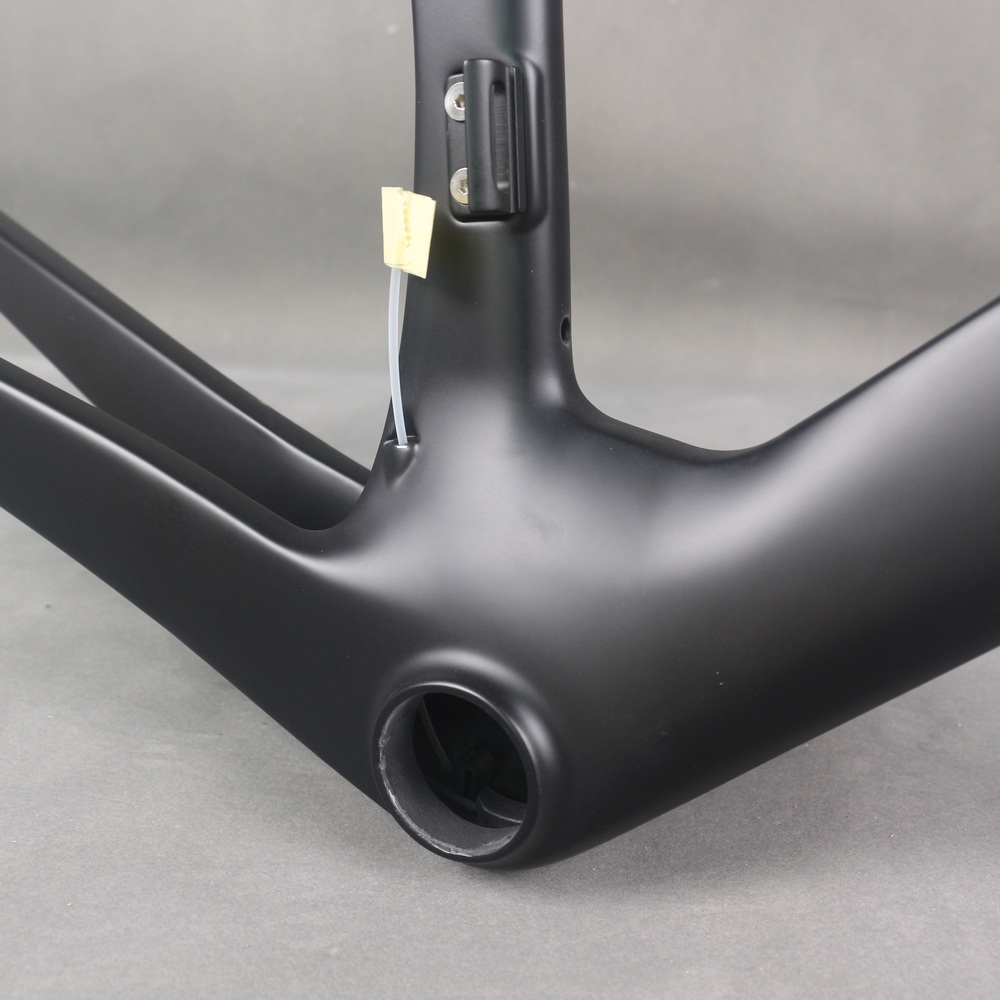

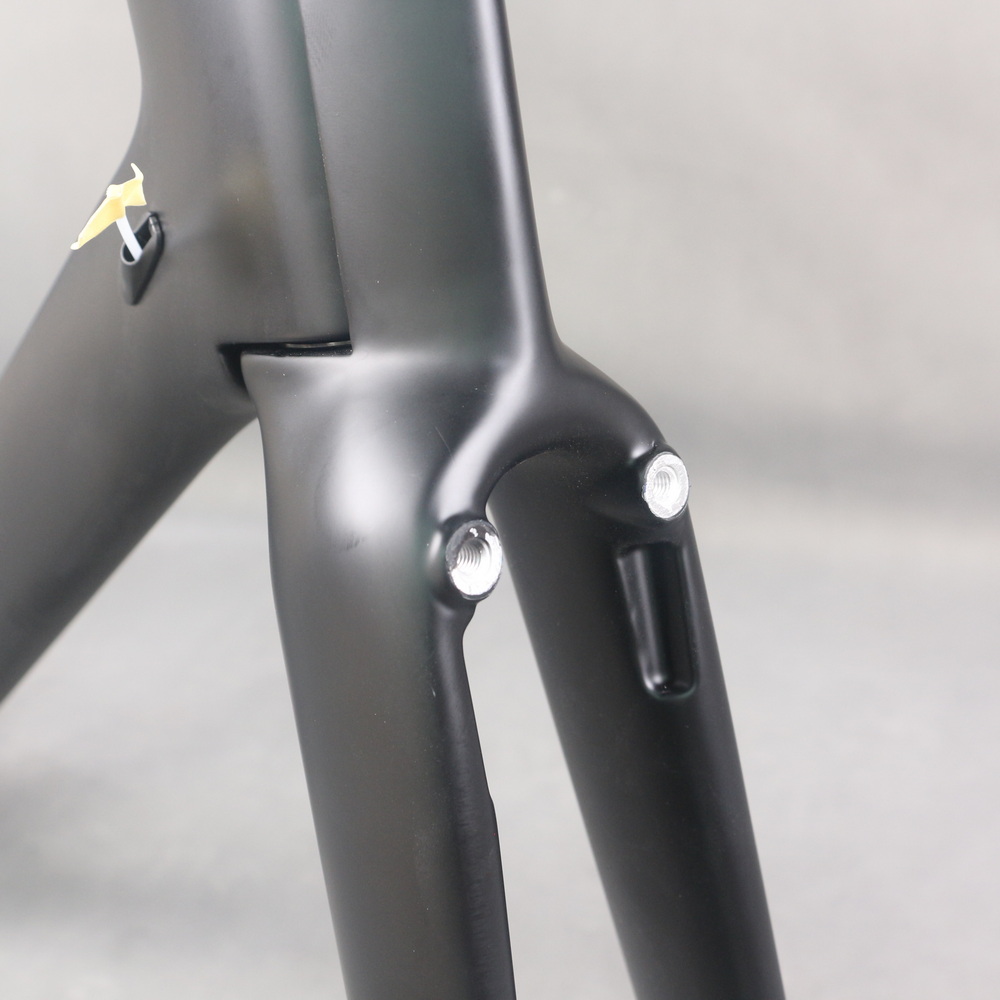

Detail images

below picture frame size is 52cm

Foctory test

SGS report

Shipping

FAQ

Q: What’s your payment terms?
A: T/T, L/C,D/A,D/P, PayPal or other payment negotiated.

Q: Is sample Available?
A: Sample if available according to your requests.

Q: What's your MOQ?
A: The MOQ is not required for the sample, but required 10-30 sets for bulk.

Q: How long is your delivery time?
A: It depends on your order, please contact us for more details.

Q: What's the guarantee for goods?
A: Frame 2 years warranty. Rims /Fork 1 year warranty.
