21%OFF

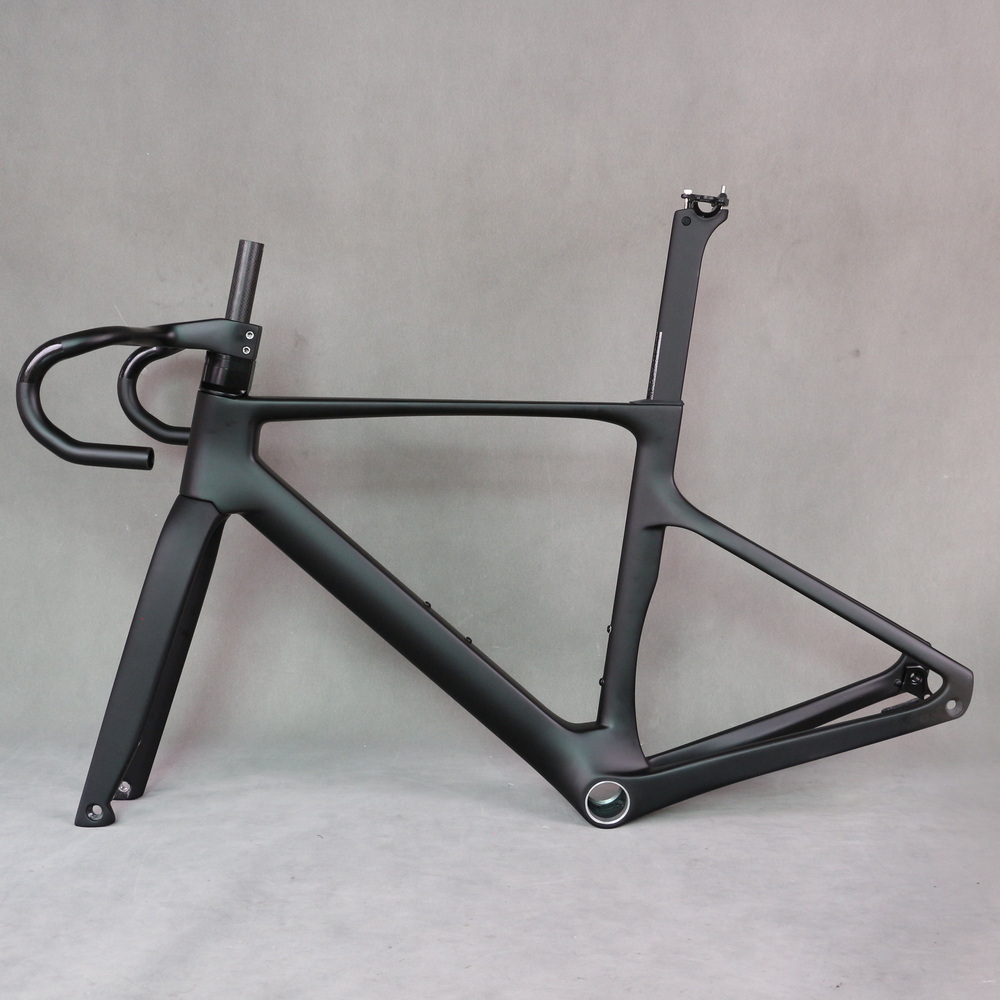

Super Light Carbon Fiber T1000 Disc Road Bike Frame TT-R18 UDH Hanger T47 Thread Max Tire 32C

reviews

$549.00 piece

Color

Size

handlebar size

Contact Us

information

Type: TT-R18 (super light T1000 disc road frame)
Frame set: Frame+Fork+Seatpost+HB010 handlebar+spacers
Material: Super light T1000
Size: XS/S/M/L/XL
Routing: Full Internal Cables
Headset Size: 1-1/2" to 1-1/2"
Bottom Bracket: T47 thread
Thru Axles: Front 100*12 Rear 142*12mm

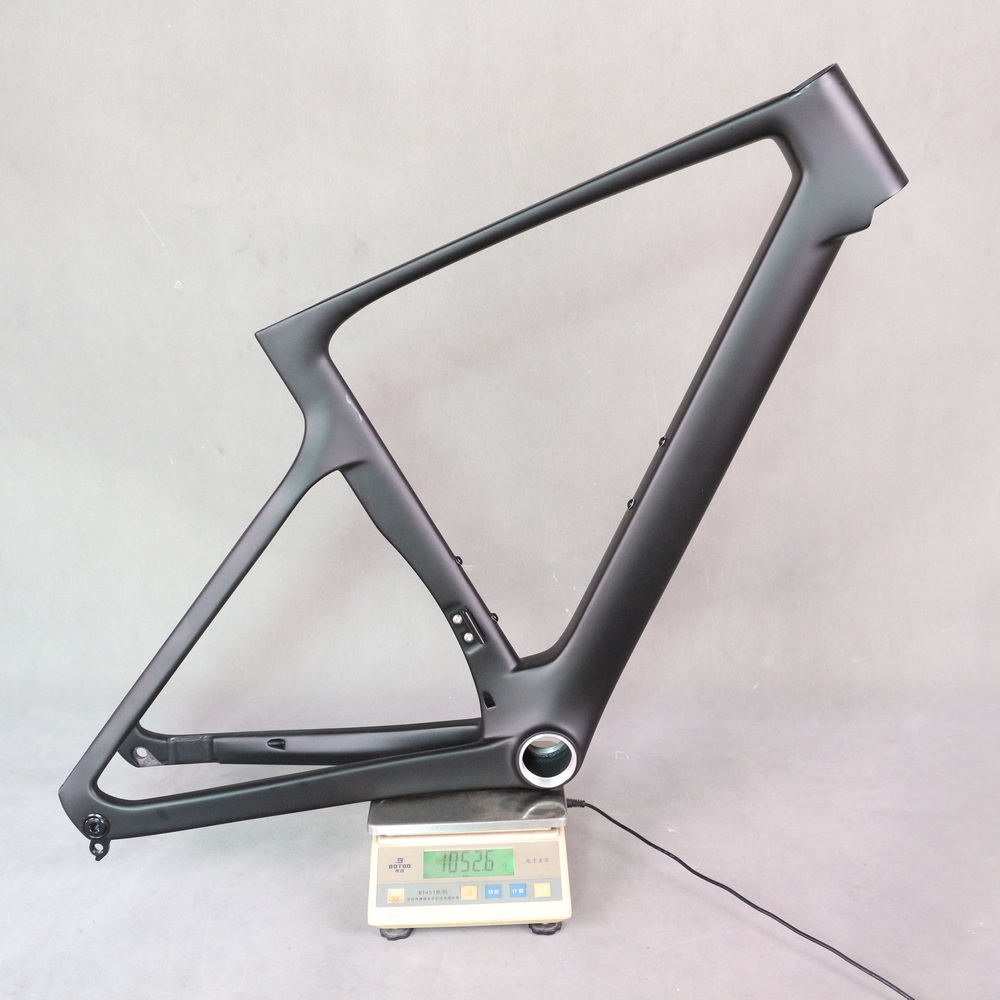

Frame Weight : 1052/+-40g(S)

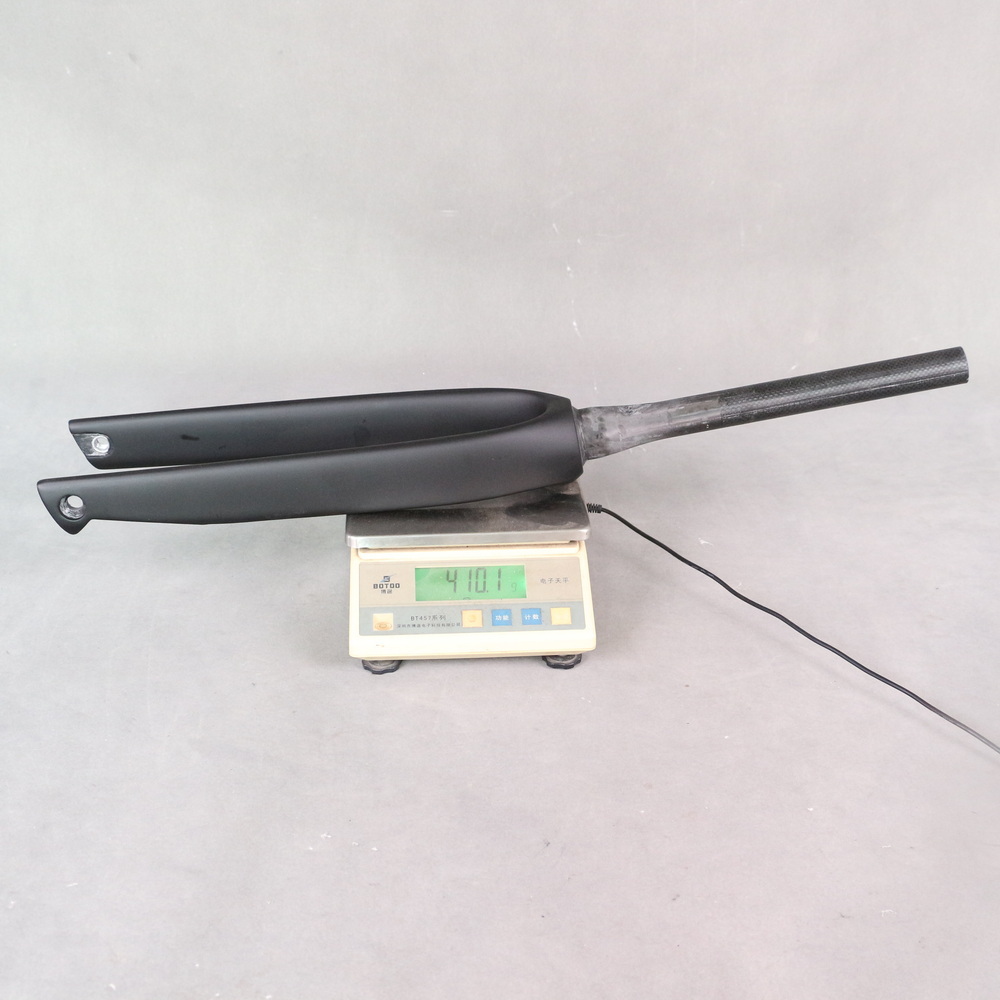

Fork Weight : 410/+-40g

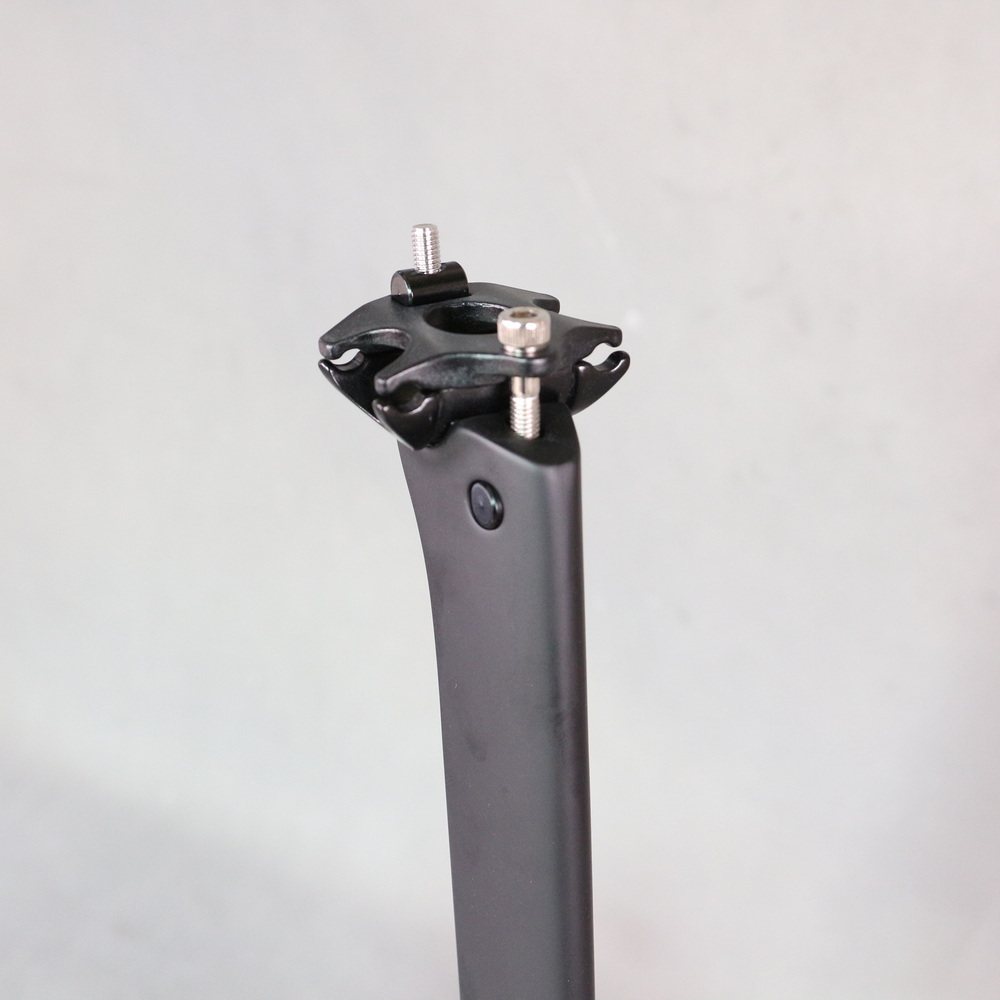

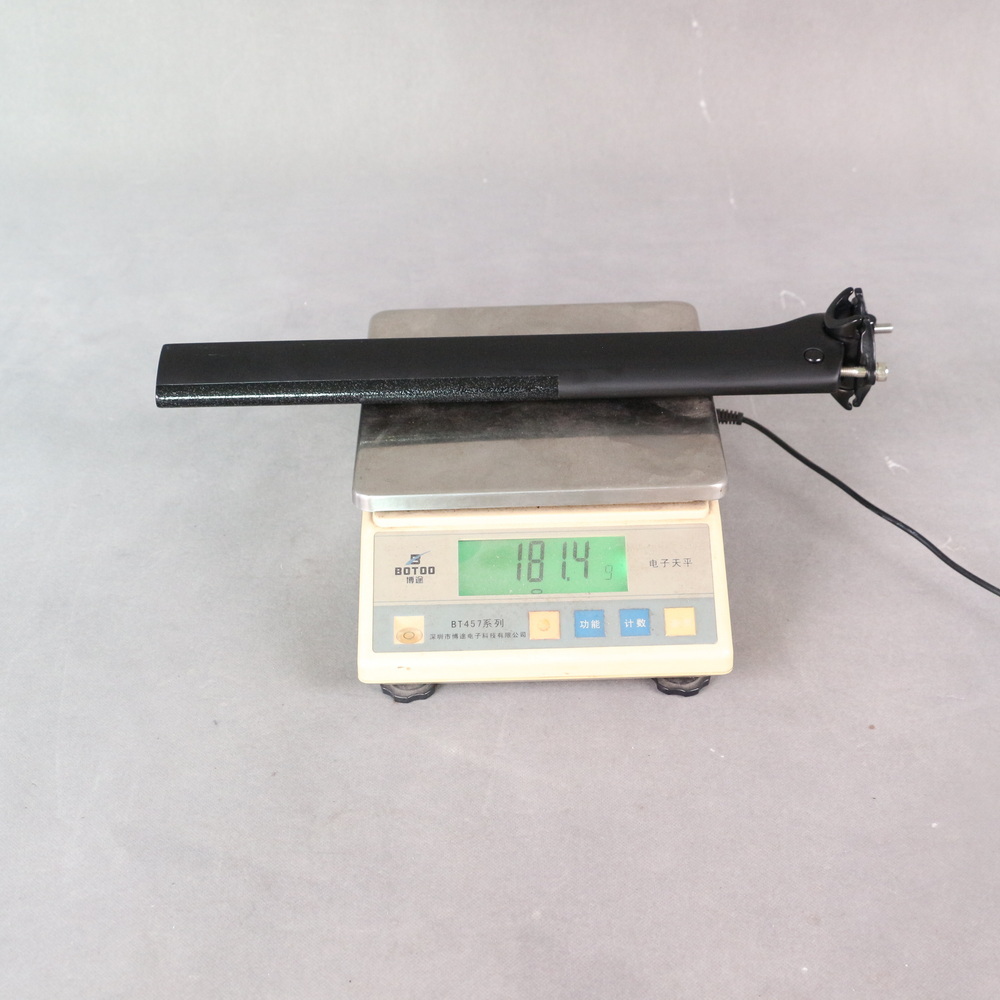

Seatpost Weight : 181/+-20g
Seatpost length: 350mm

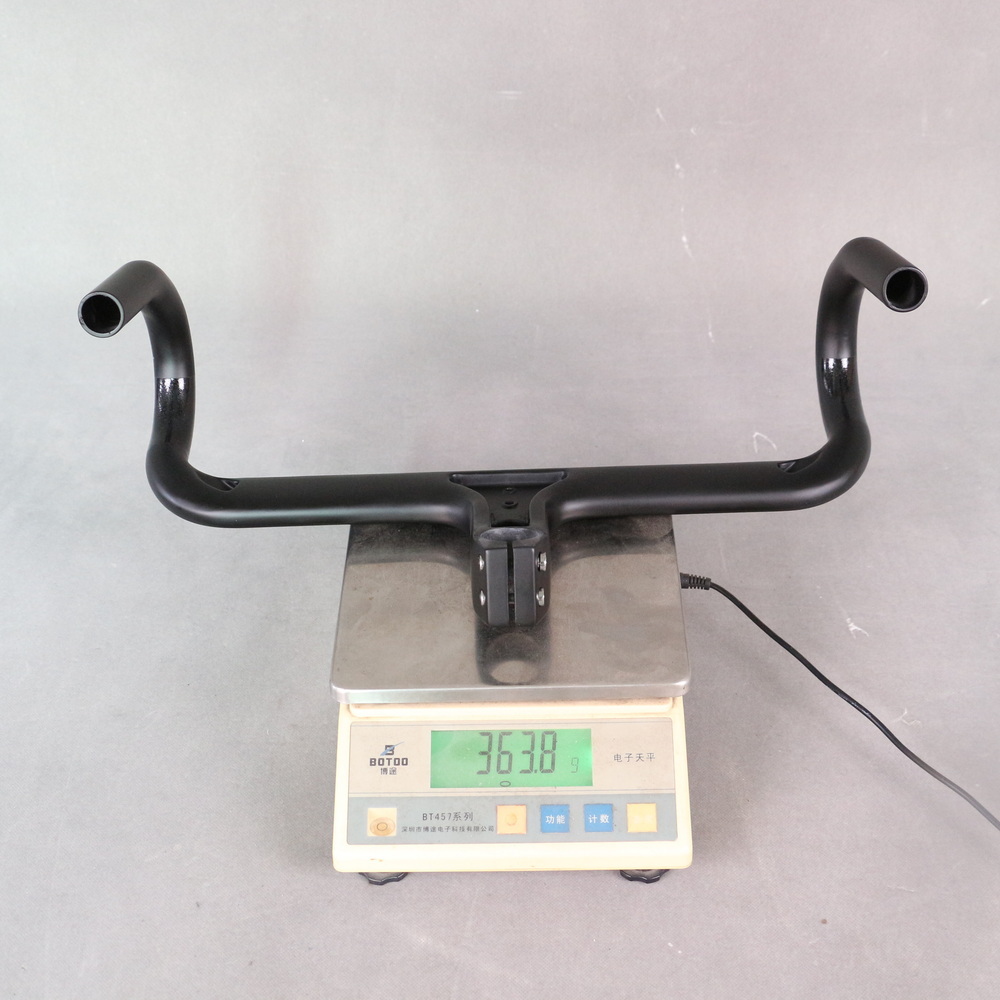

Handlebar weight： 363/+20g
Max Tires: 700*32C
Disc Rotor: front and rear 140mm (160mm need add adapter)

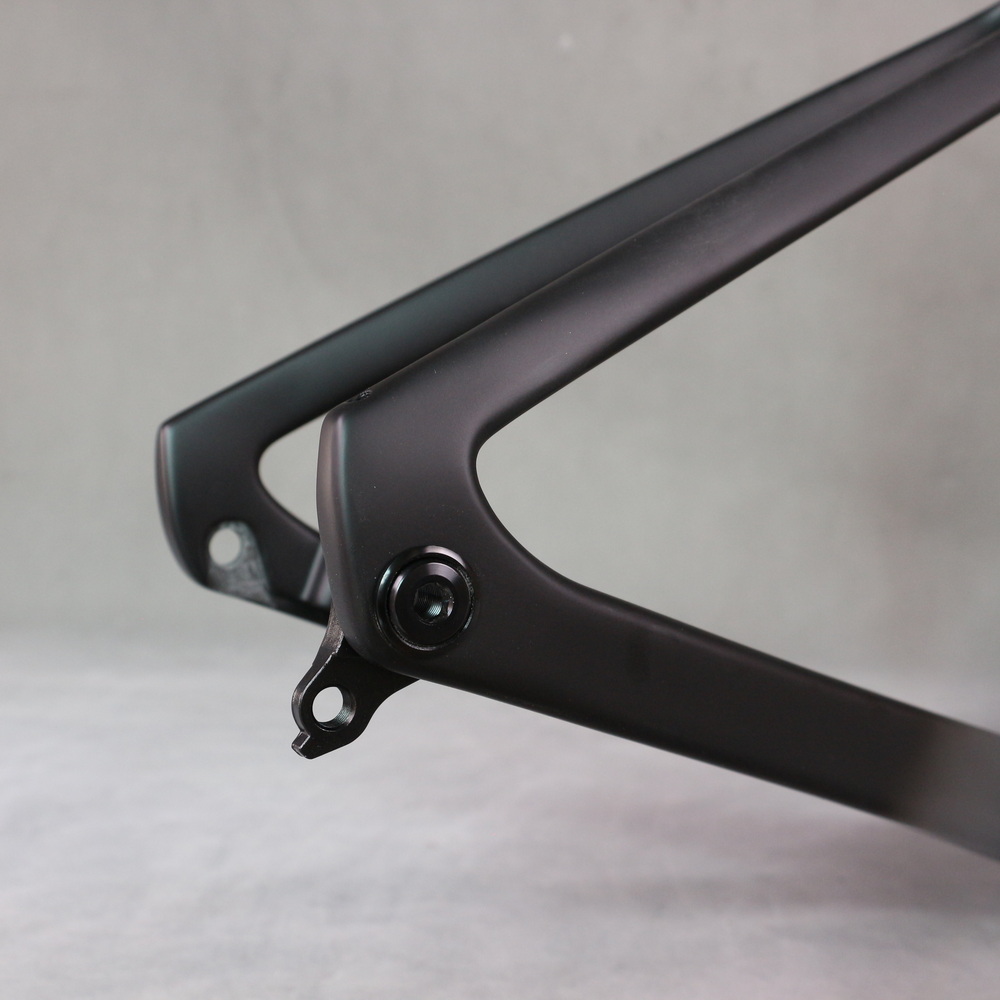

Drop out: UDH dropout

Please note the size of the integrated handlebar when placing an order:

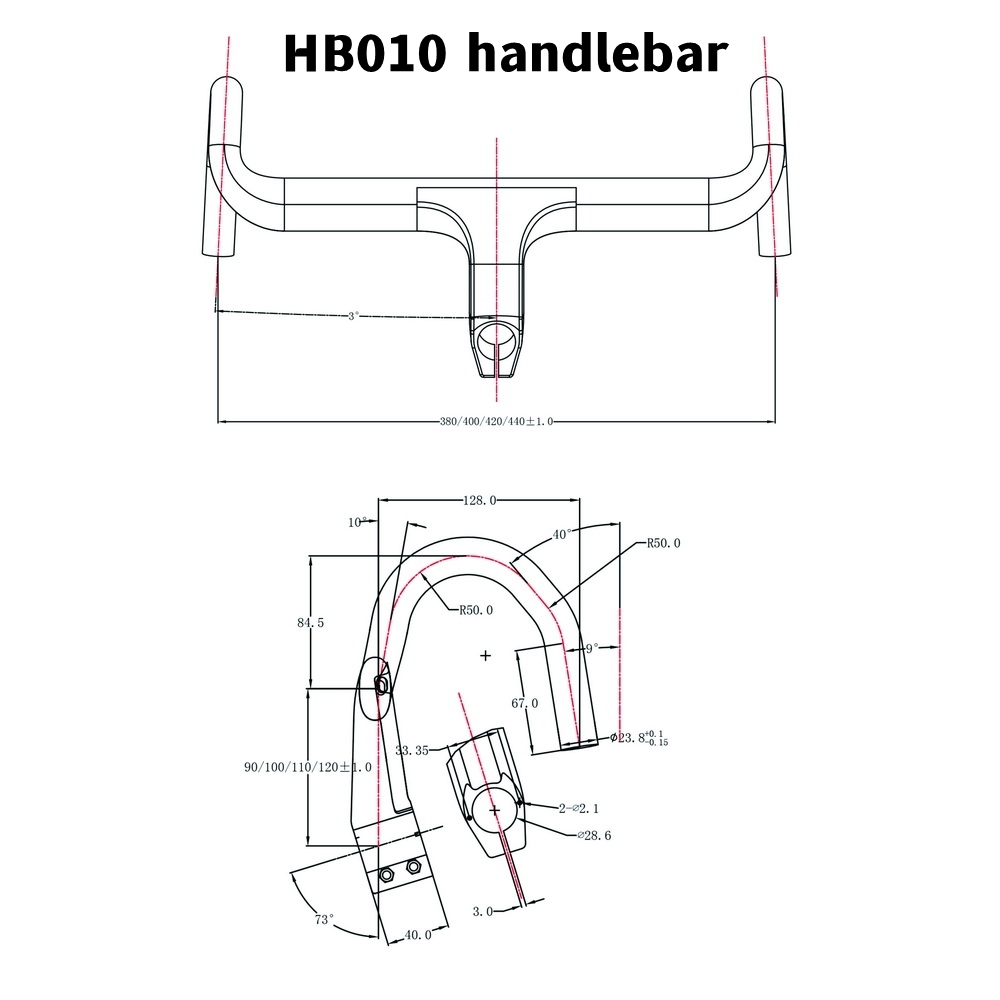

HB010 handlebar Available sizes:
90*380mm/90*420mm/90*440mm
100*400mm/100*420mm
110*400mm/110*420mm/110*440mm
120*400mm/120*420mm/

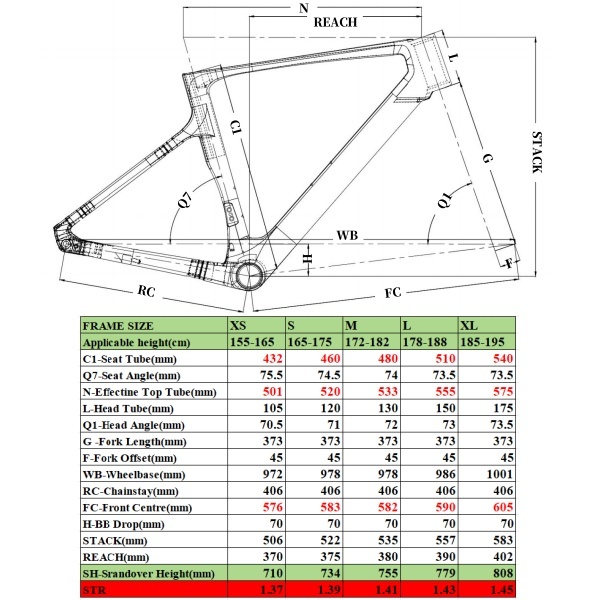

Geometry

Detailed Pictures

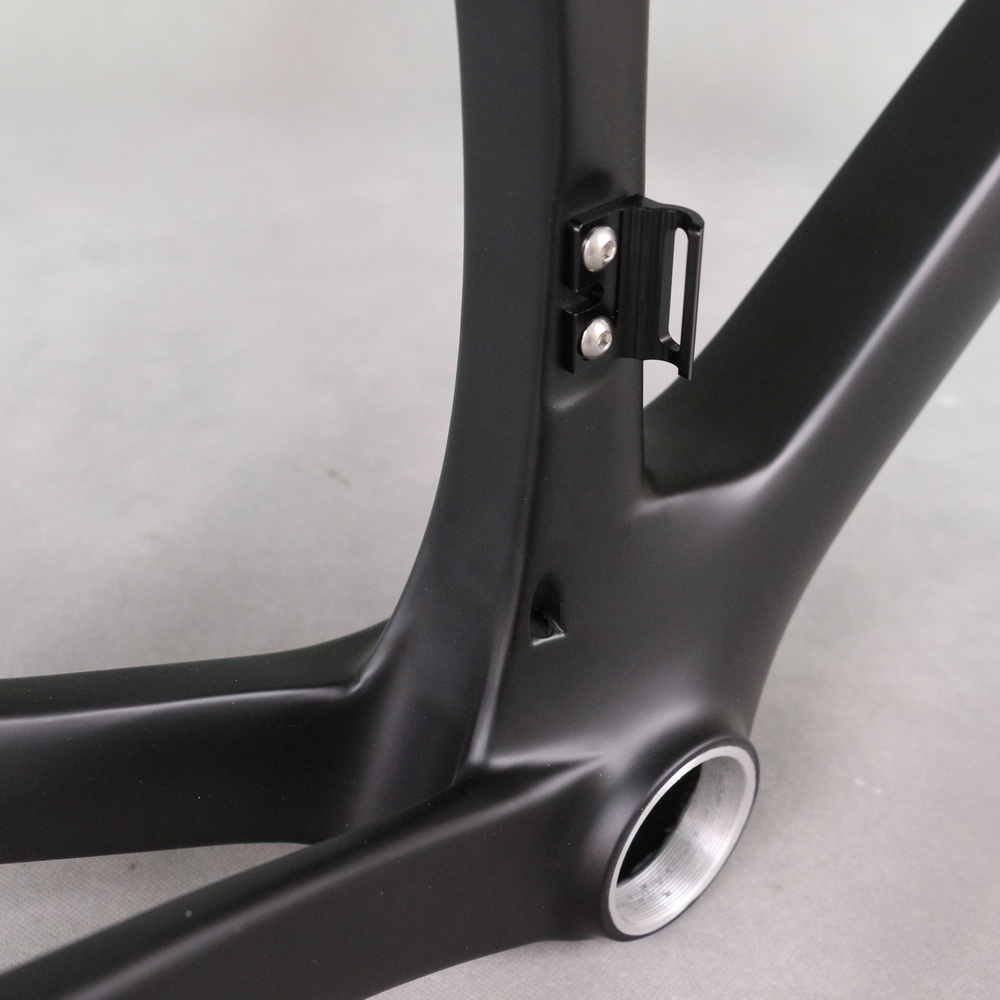

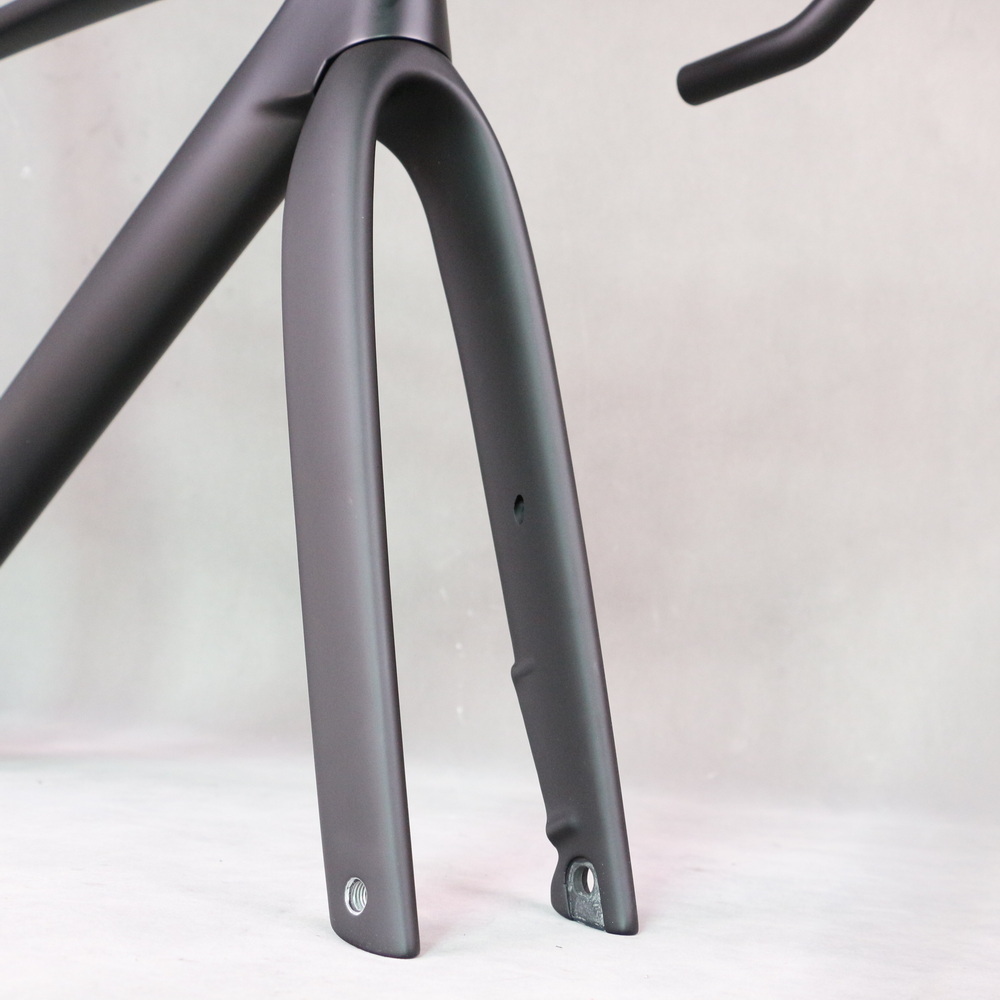

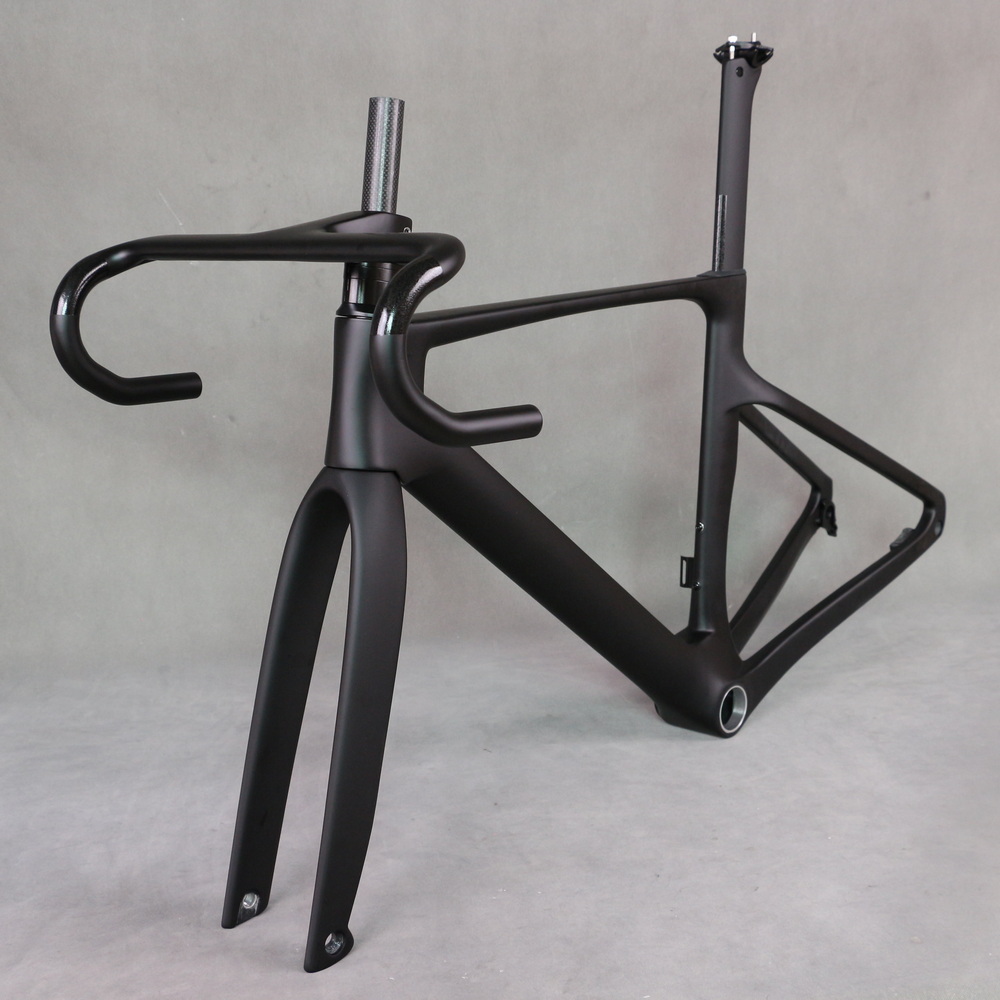

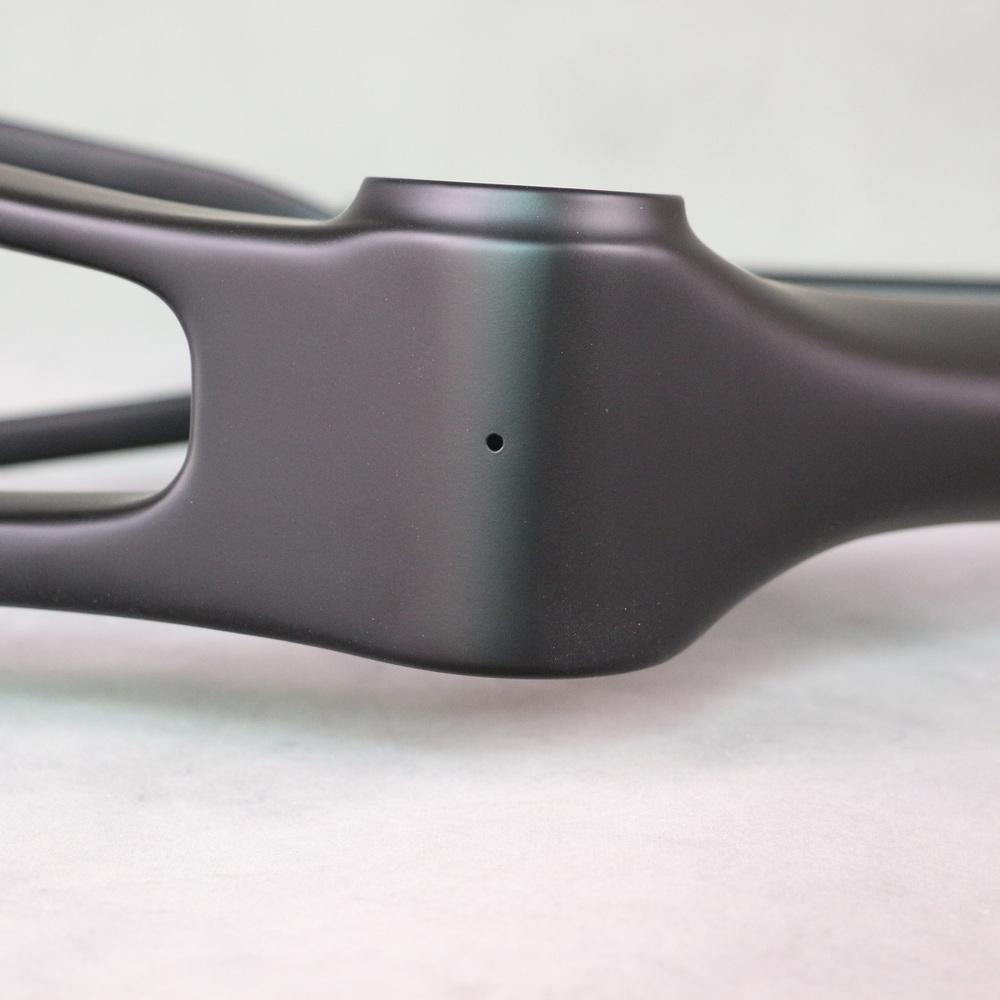

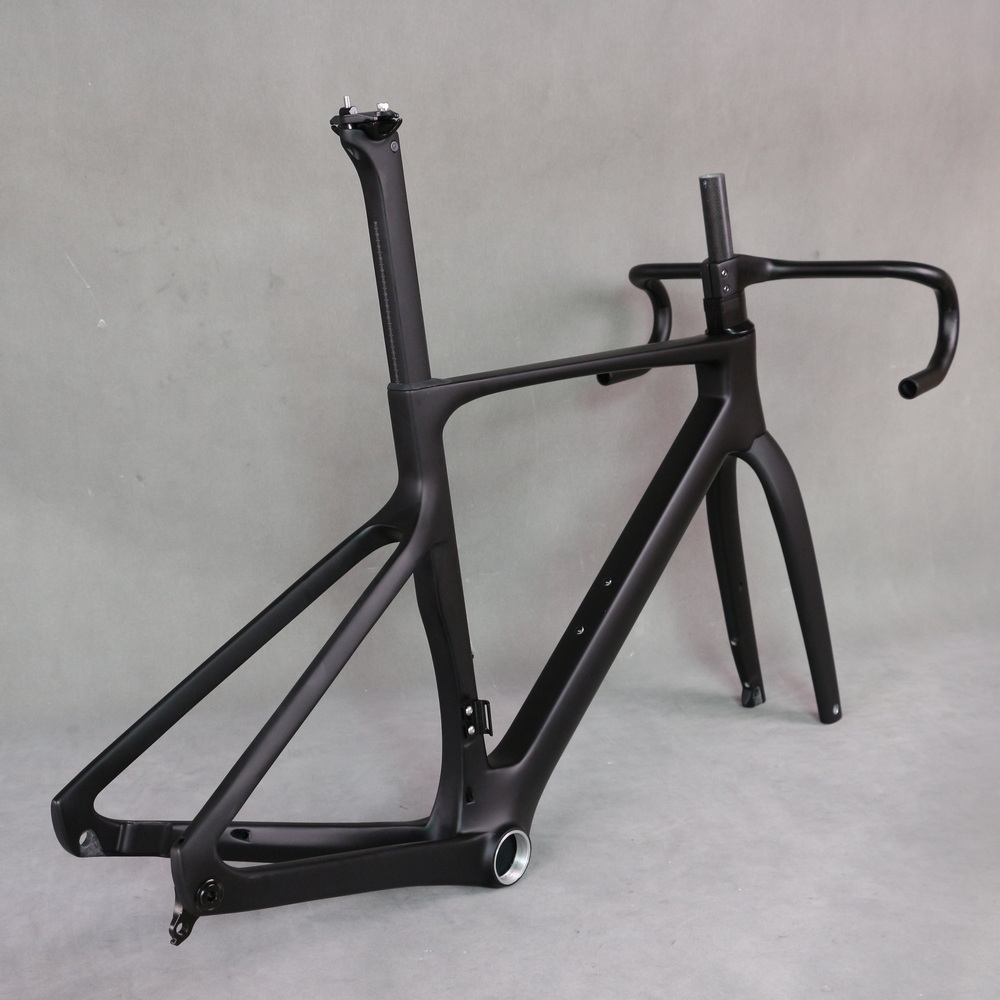

Below picture frame size S

Foctory test

Shipping

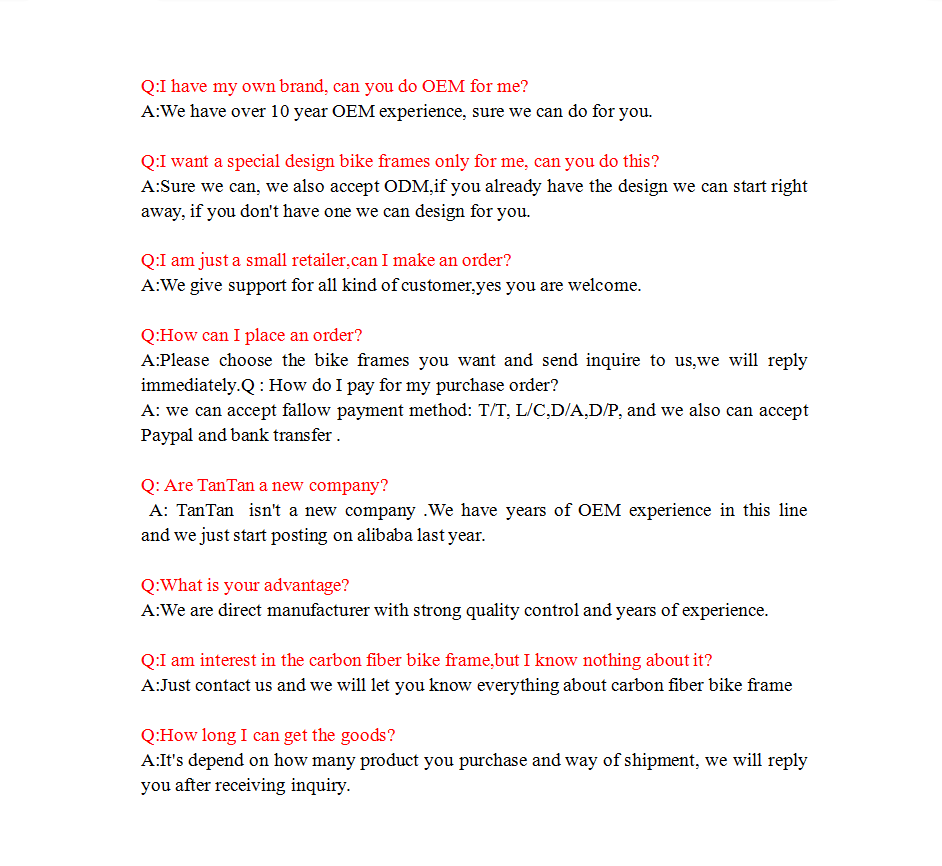

FAQ

Hign-concerned Chemical:: none

Surface Processing Mode:: Matte

is_customized:: Yes

Model Number:: TT-R18

Use:: Road Bicycles

Weight:: 1052/+-40g(S)

Foldable:: No

Material:: CARBON

Brand Name:: SERAPH

Origin:: Mainland China

Bottom Bracket:: T47

Max Tires:: 700X32C

Routing:: Full Internal Cables

Warranty:: 2 years
