Super Light Carbon Fiber T1000 Climbing Bicycle Road Bike Frame FM231 UDH T47 Thread Max Tire 32C

reviews

$513.45 piece

Color

Size

Contact Us

information

Type: FM231 (disc road frame )
The Frame set: Frame+Fork+Seatpost
Material: Full Carbon T1000
Size: 46/49/52/54/56/58cm
Headset Size: Top 1-1/2 (52mm) Down 1-1/2(52mm)
Bottom Bracket: T47 thread
Seatpost size 27.2mm

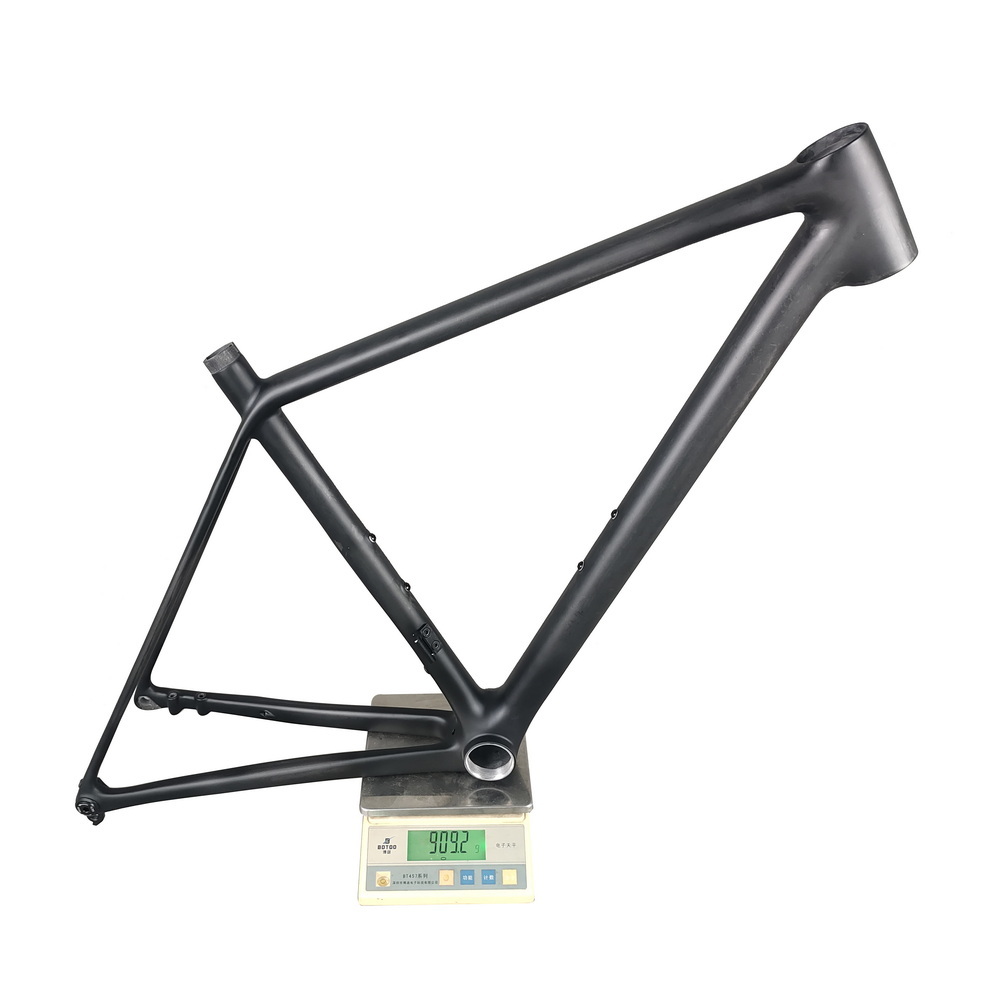

Frame Weight : Frame:909/+-40g (Size 52CM)

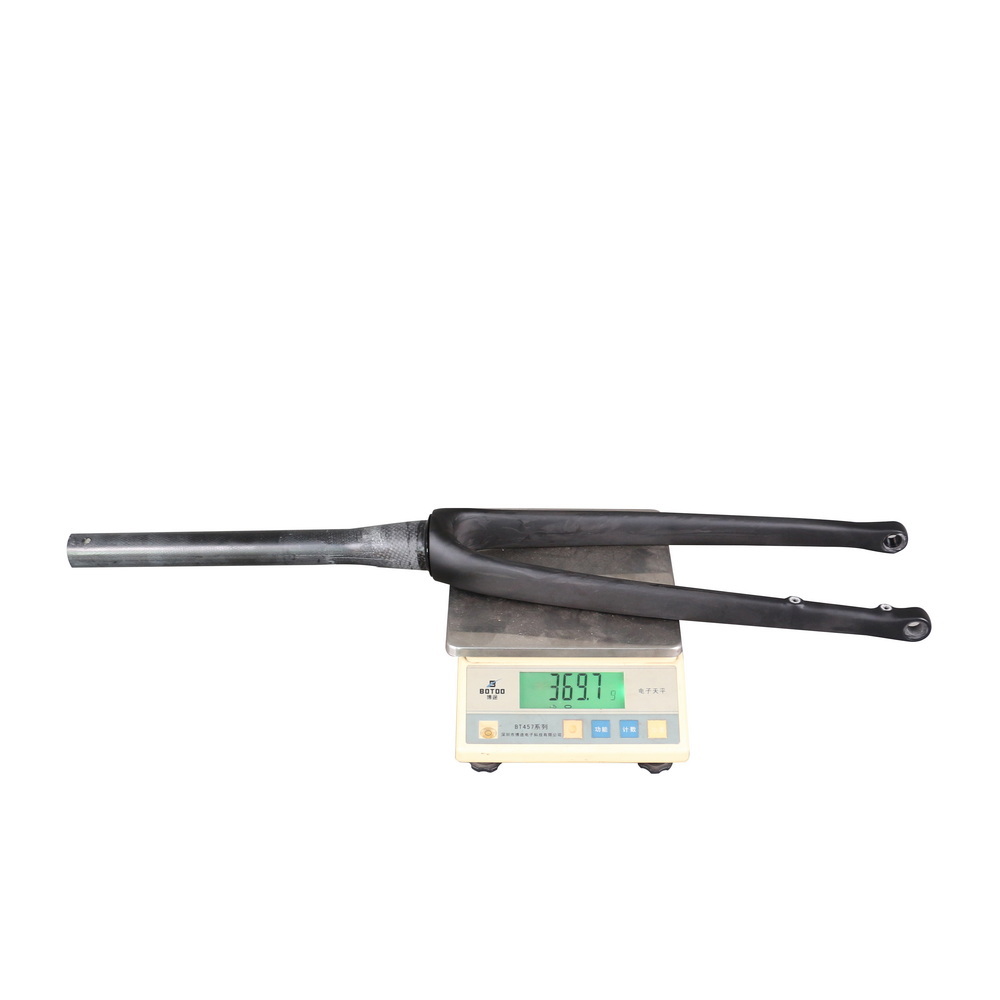

Fork Weight : Fork:369/+-40g

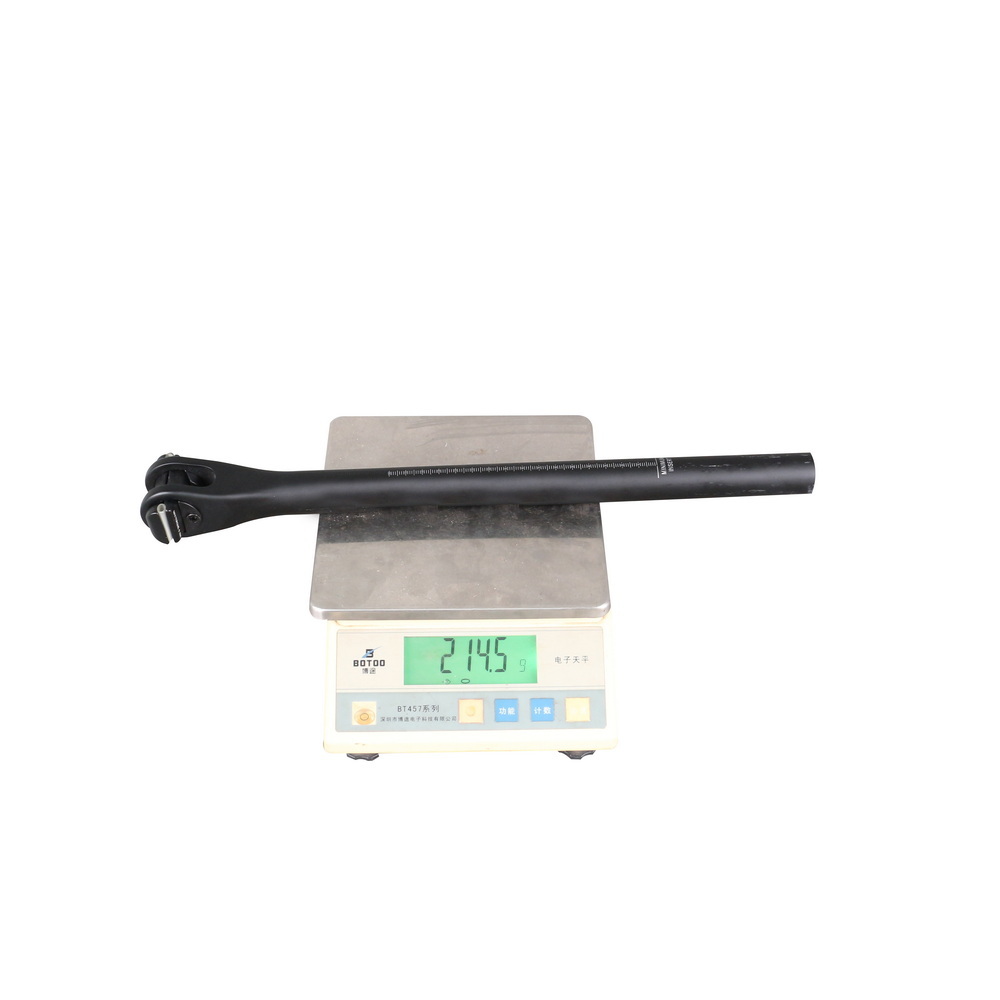

Seatpost Weight : Seatpost:214/+-30g
Max Tires: 700*32C

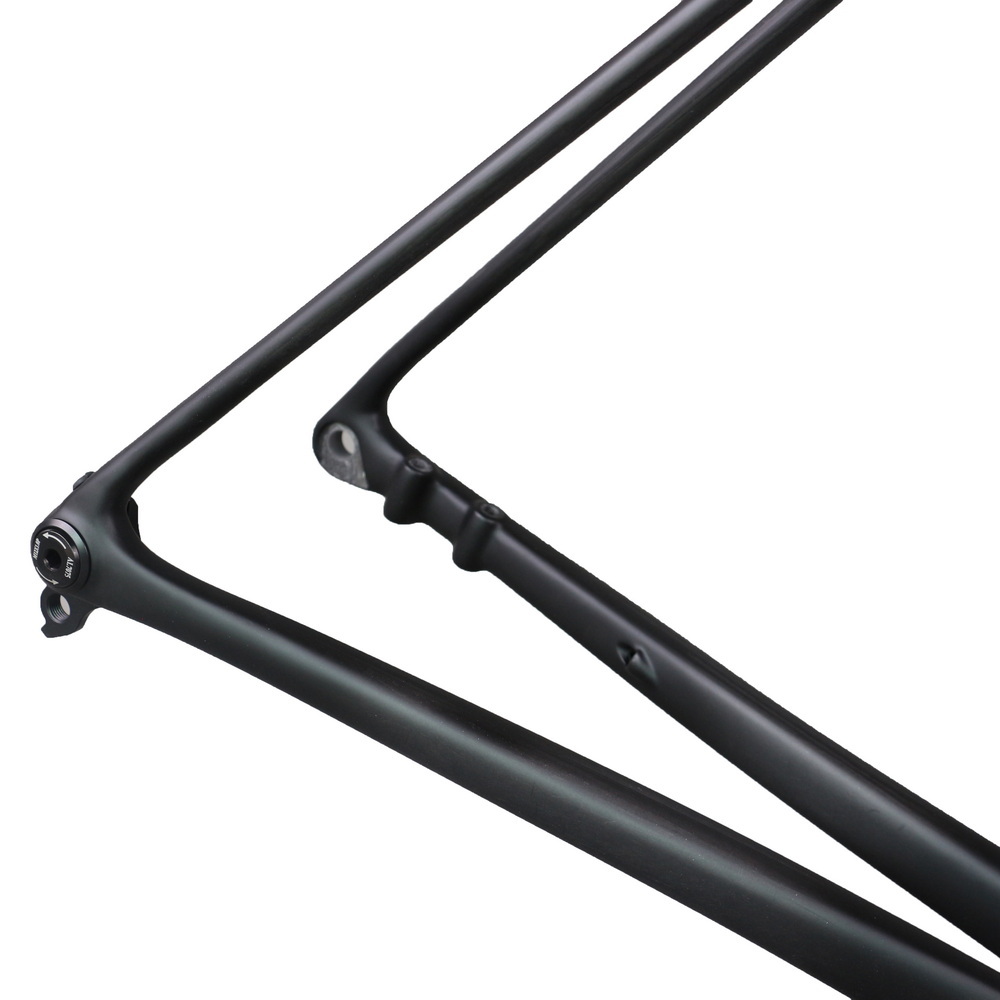

Drop out： UDH dropout
Thru Axles: Front 100*12 Rear 142*12mm
Disc Rotor: front and rear 140mm (160mm need add adapter)

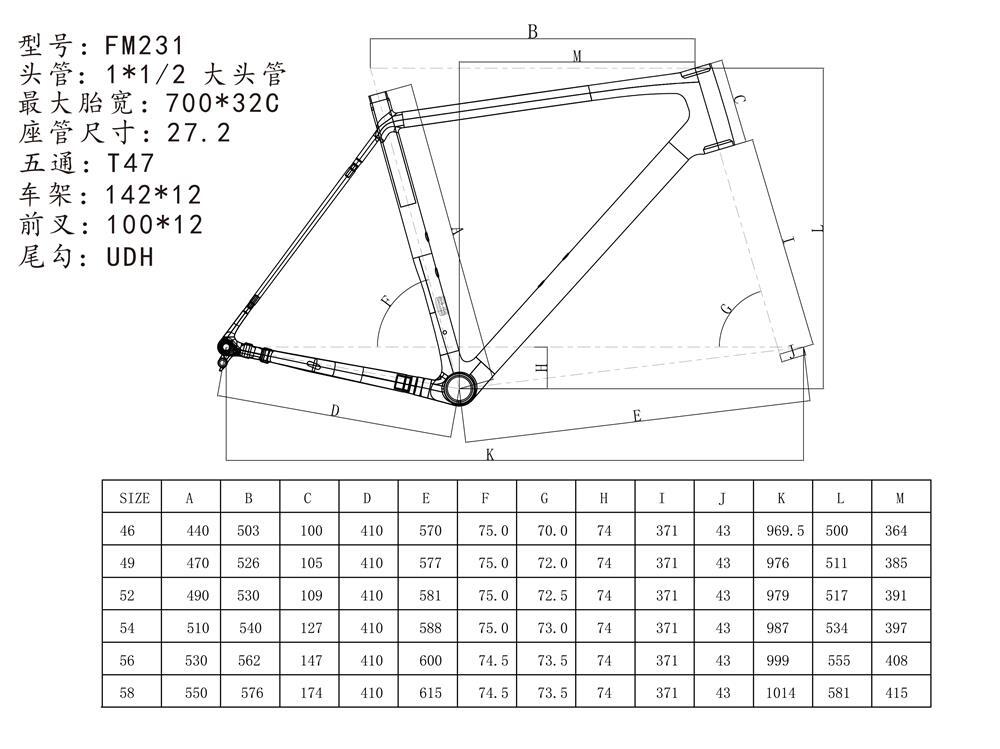

Geometry

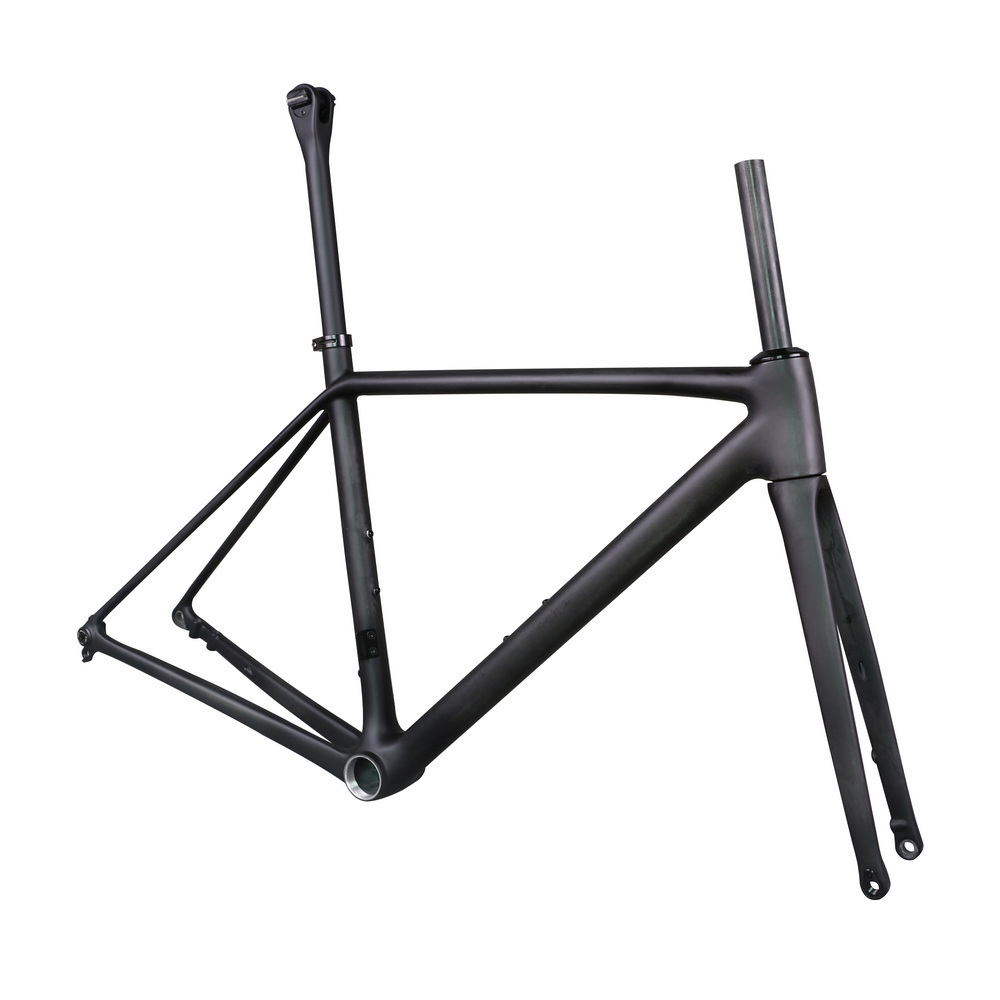

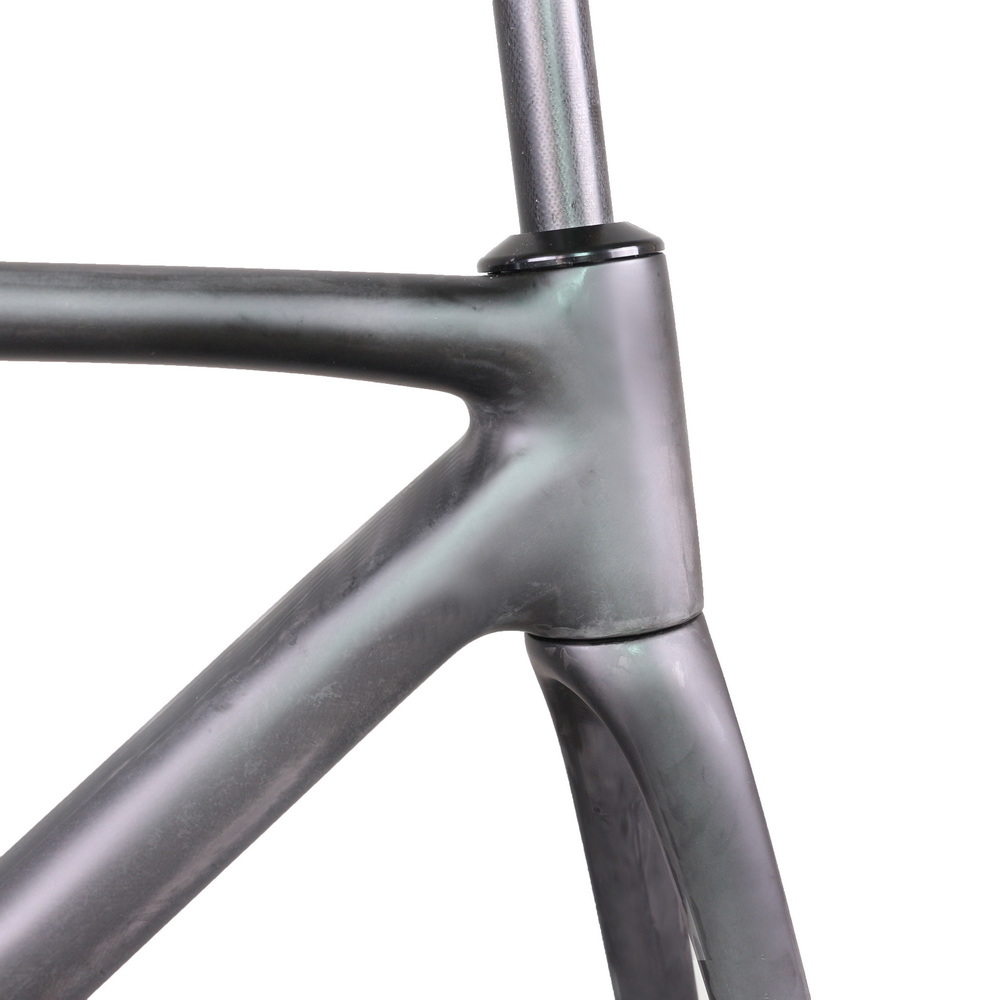

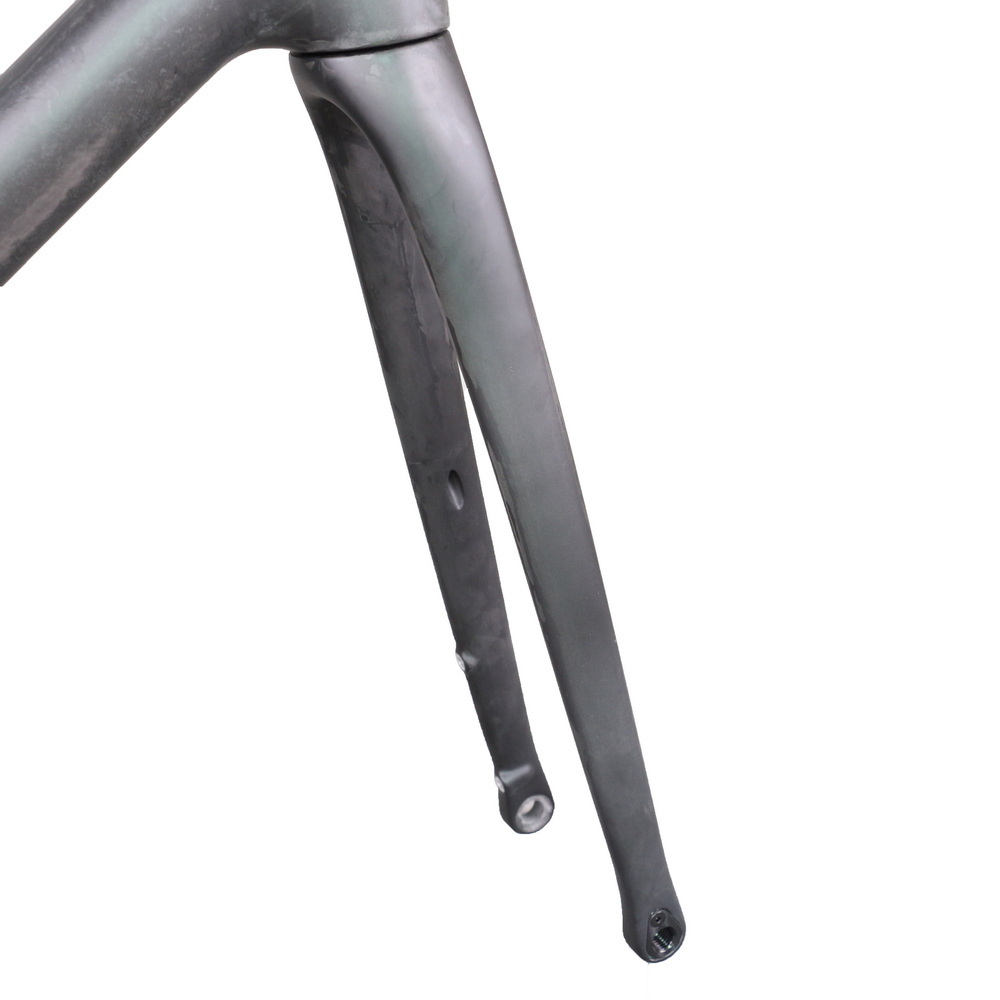

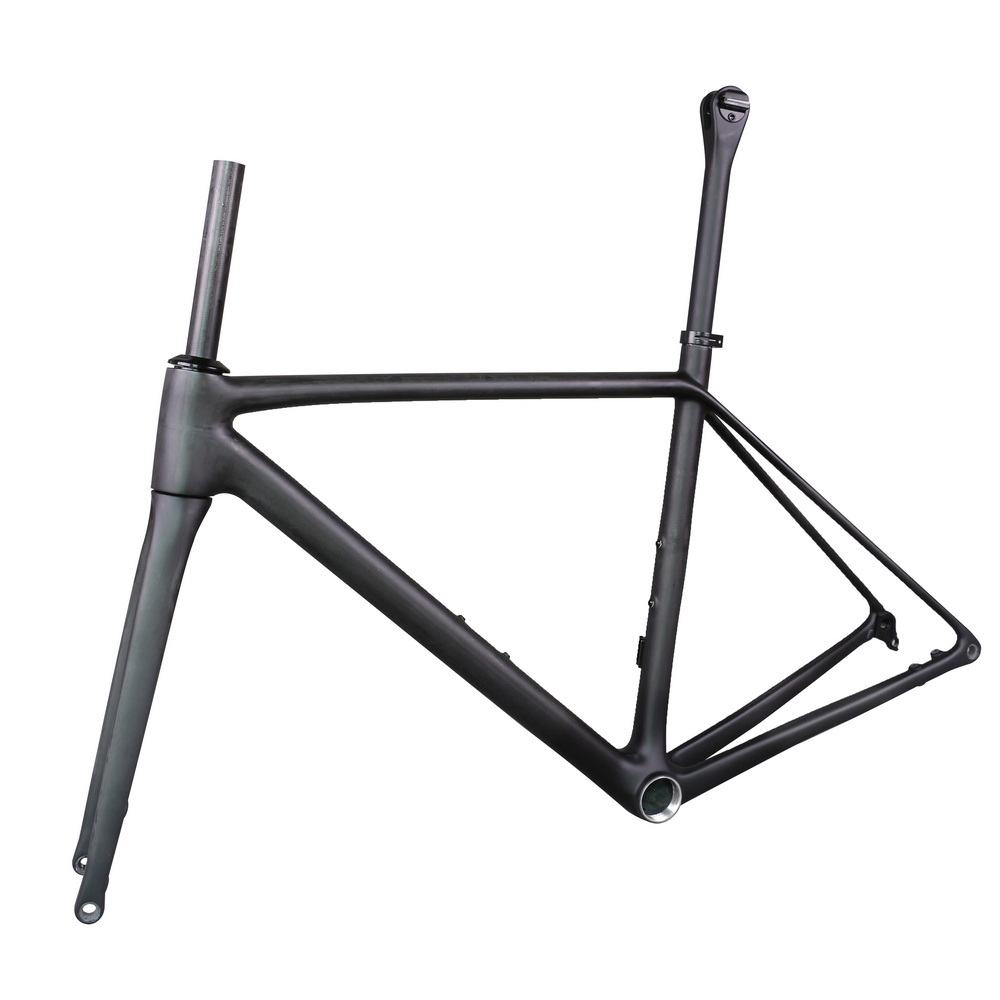

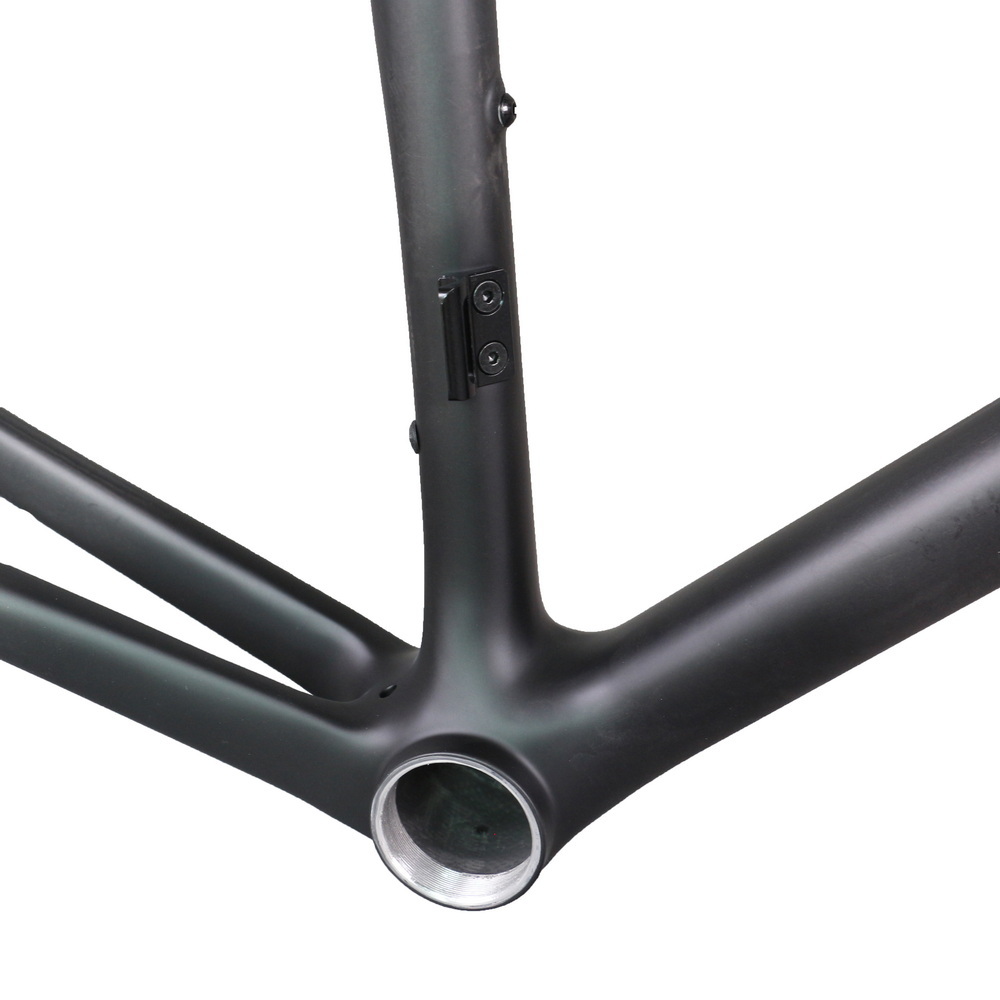

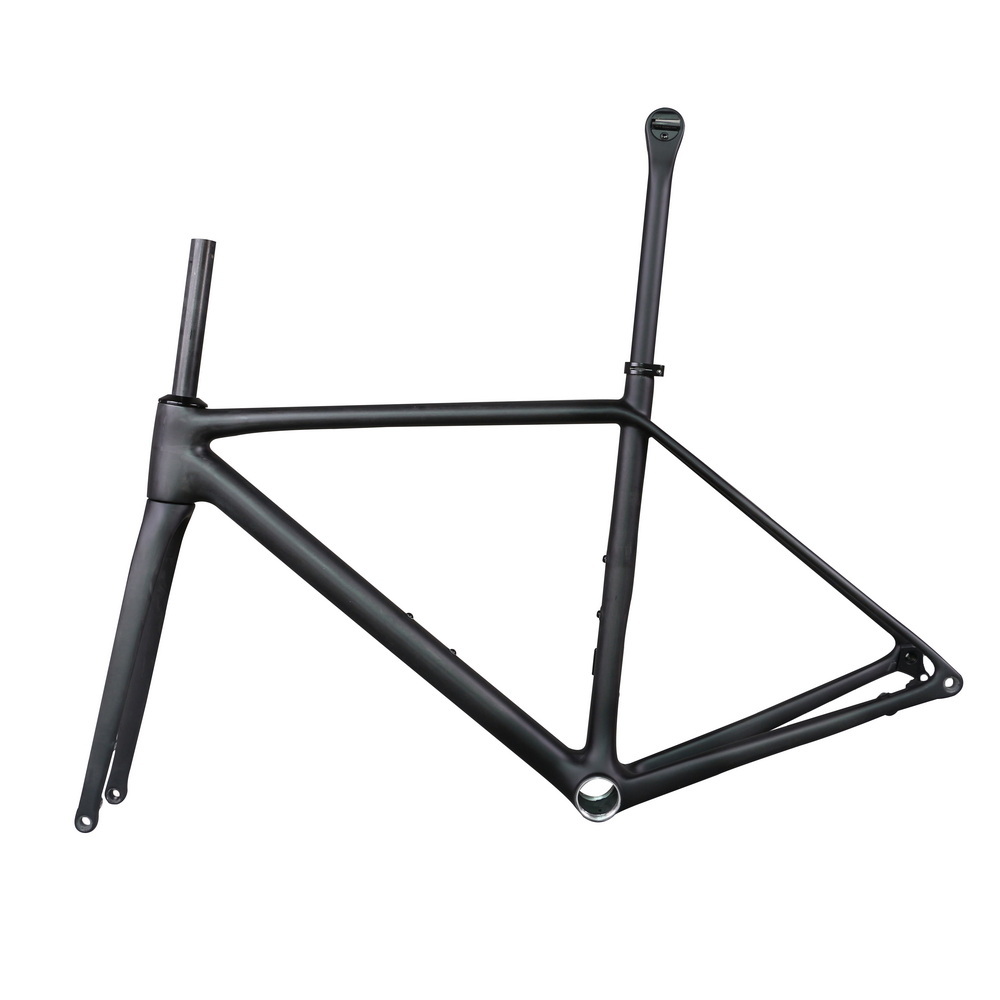

Detailed Pictures

below picture frame size is 52cm

Foctory test

Shipping

Hign-concerned Chemical:: None

Surface Processing Mode:: Matte

is_customized:: Yes

Model Number:: FM231

Use:: Road Bicycles

Weight:: 909/+-40g(52)

Foldable:: No

Material:: CARBON

Brand Name:: SERAPH

Origin:: Mainland China

Bottom Bracket:: T47

Max Tires:: 700X32C
