SERAPH
29er Boost Suspension Carbon E-Bike Frame E69 BAFANG M500 M510 M600 Motor Travel 150mm Red Ice Crack Paint + Gold Color
Motor+ battery +Headset+ thru axle are not included in the frame, please buy them together if you need them.
Product information
Type: E-MTB 29ER BAFANG E69
Material Full carbon fiber T800
Weave: UD
Size 15.5''/17.5''/19''
Weight： 3619g+40g Size (17")
Headset-top: 52mm
Headset-down: 52mm
Brake model: Disc brake(180mm)
SeatPost: Φ31.6 mm
MaximumTyre 29*2.6
Rear Axle Shaft: 12*148mm Thru Axle
Shock Absorber Length: 190mm (Eye to Eye Length)
Shock Absorber Travel: 51mm
Front Spacing Travel: 160mm
Rear Spacing Travel: 150mm
BATTERY: Bafang BT F311.840.C (48V-17.5AH)
Voltage: 48V
Capacity! 17.5AH
Energy: 840WH
MOTOR: BAFANG M510/M500/M600
Warranty 2 Years
Geometry
Detail iamges

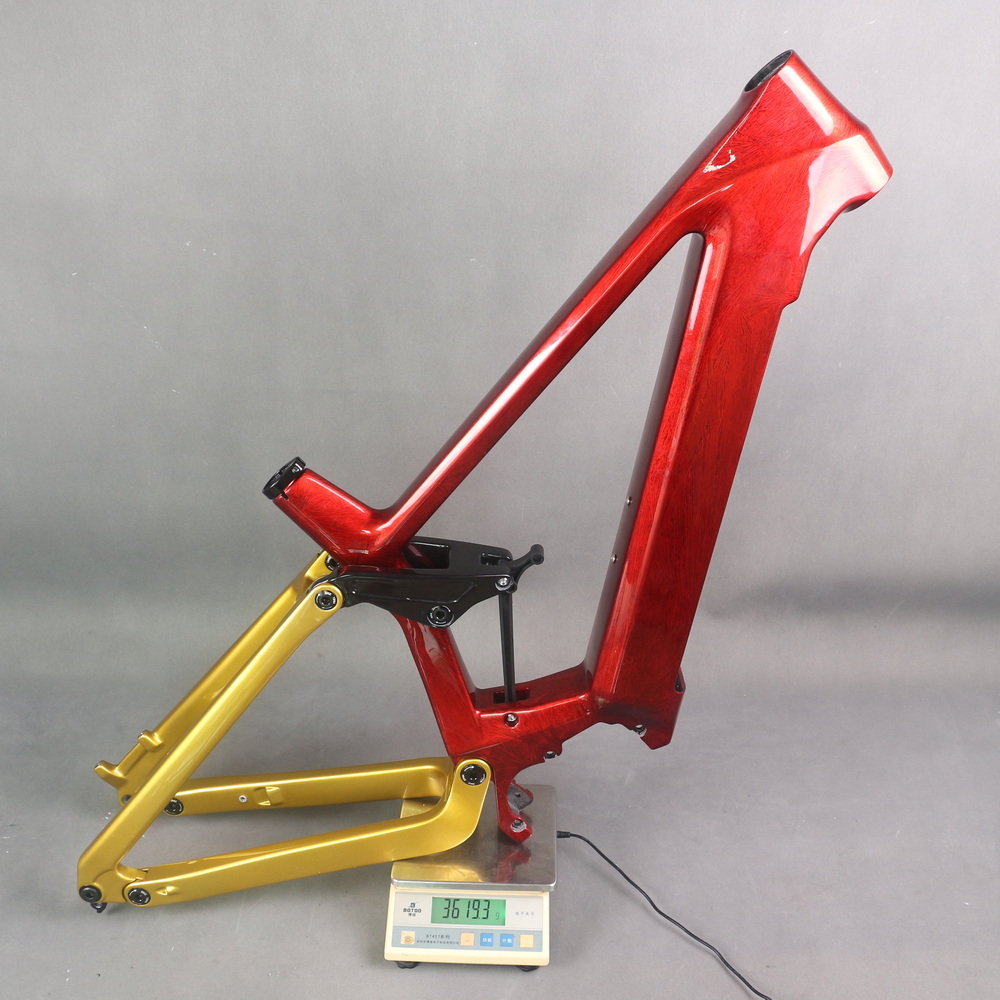

Below picture frame size is 17.5''

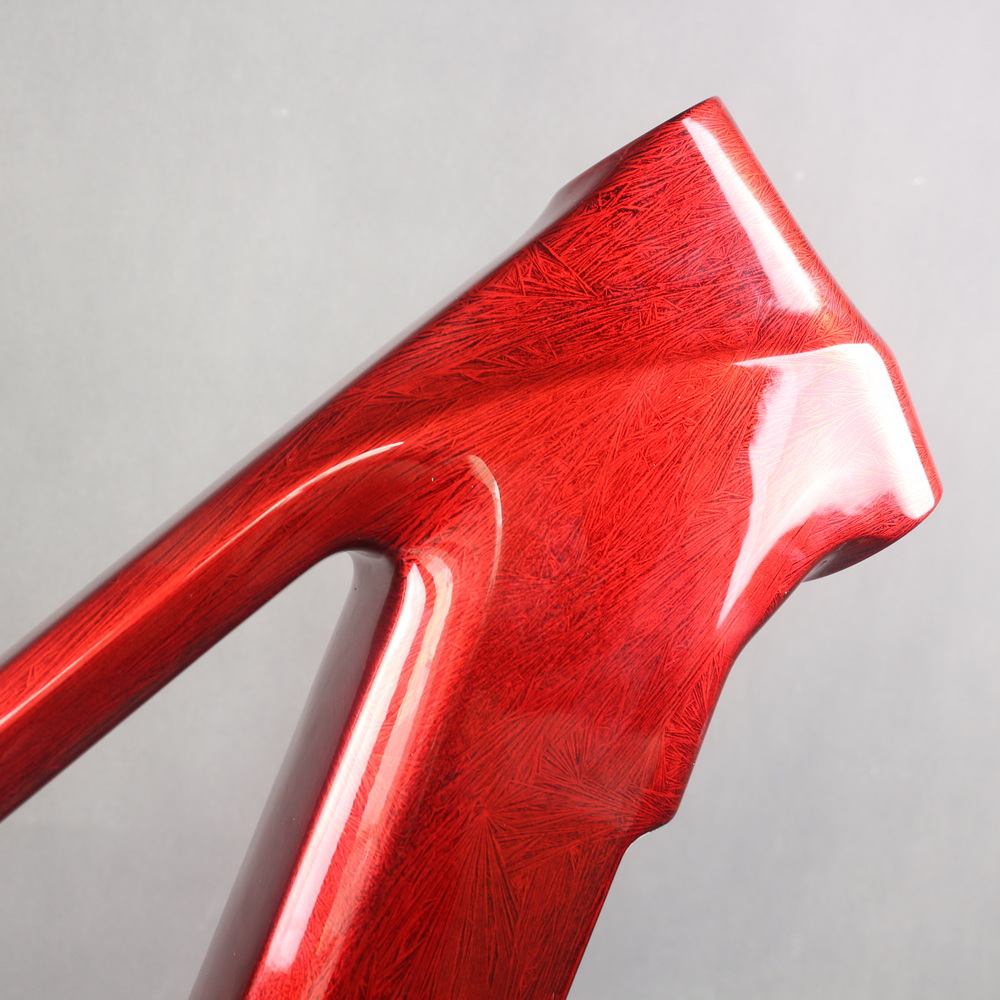

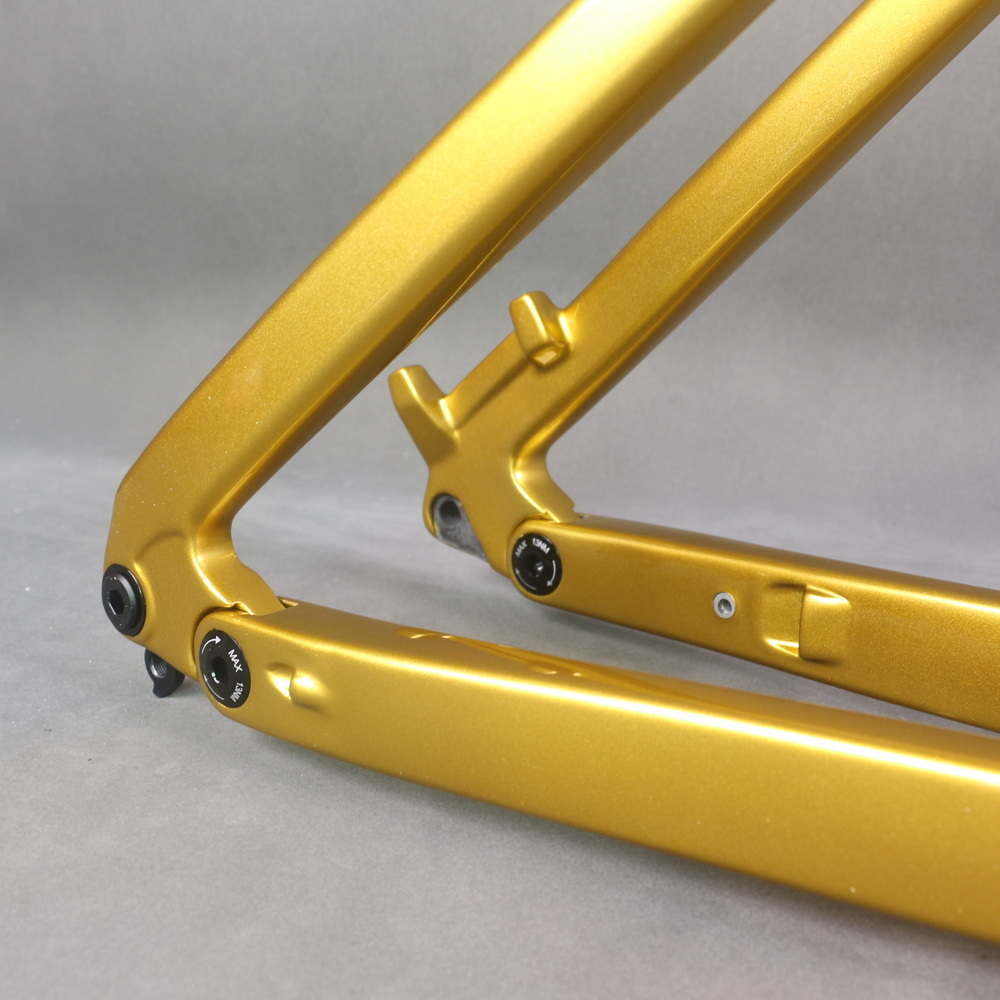

Red ice crack paint + gold
Package
FAQ
- Surface Processing Mode:
- Gloss
- is_customized:
- Yes
- Model Number:
- E69
- Use:
- Mountain Bikes
- Weight:
- 3619g+/-100g 17.5''
- Foldable:
- No
- Material:
- Carbon
- Brand Name:
- SERAPH
- Origin:
- Mainland China
- Rear brake:
- Post mount
- Brake:
- 180mm disc brake
- Compatible Motor:
- BAFANG M510
- Motor:
- BAFANG M500
- Motor compatible:
- BAFANG M600
- Battery:
- Bafang BT F311.840.C
- Bushing:
- no include
- 29er Tire:
- 29X2.6
- Front travel:
- 160mm
- Rear travel:
- 150mm
